YS-SL6060 Sheet Metal Stencil Laser Cutting Machine

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $20,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                sheet metal stencil laser cutter, PCB depaneling laser machine, stencil cutting machine with warranty


Weight:	1500 Kg	Power:	10 KW
Voltage:	220V/380V	Dimensions:	L1680W1500H1630mm
Rated Power:	2KW	Peak Power:	6KW
Platform Accuracy:	±3μm	Platform Repeatability:	±1.5μm
Platform Velocity:	≤300mm/S	Location Detection:	0.1μm
Cutting Range:	X 600mm * Y 600MM	Table Size:	X 620mm * Y 620MM
Cutting Thickness:	≤0.5mm	Focus Diameter:	25-30μm
Laser Power:	50W	Wavelength:	1070 Mm
Laser Weight:	20KG

Weight:	1500 Kg
Power:	10 KW
Voltage:	220V/380V
Dimensions:	L1680W1500H1630mm
Rated Power:	2KW
Peak Power:	6KW
Platform Accuracy:	±3μm
Platform Repeatability:	±1.5μm
Platform Velocity:	≤300mm/S
Location Detection:	0.1μm
Cutting Range:	X 600mm * Y 600MM
Table Size:	X 620mm * Y 620MM
Cutting Thickness:	≤0.5mm
Focus Diameter:	25-30μm
Laser Power:	50W
Wavelength:	1070 Mm
Laser Weight:	20KG

YS-SL6060 Sheet Metal Stencil Laser Cutting Machine

High-performance fiber laser cutting system designed for precision sheet metal stencil manufacturing and SMT template production.

Key Features

Innovative Waste Collection: Advanced chip, slag, and iron dust removal system enhances equipment stability and service life
High Power Fiber Laser: Semiconductor-pumped solid-state laser technology for efficient cutting of various metal materials
Custom Process Solutions: Professional fixture design adaptable to multiple material sizes and shapes

Equipment Description

Machine Name	High-speed laser sheet metal cutting machine
Model	YS-SL6060
Applications	SMT templates, precision metal parts
Machine Color	Creamy-white
Total Weight	Approximately 1500KG
Physical Dimensions	L1680 × W1500 × H1630mm
Platform	Granite base with high stability and reliability
Total Power	Rated: 2KW, Peak: 6KW

Technical Specifications

Platform Positioning Accuracy	±3μm
Platform Repeatability	±1.5μm
Platform Velocity	≤300mm/S
Location Detection Variability	0.1μm
Cutting Range	X 600mm × Y 600mm
Table Size	X 620mm × Y 620mm
Cutting Thickness	≤0.5mm (reference value)
Focus Diameter	25-30μm
Best Cutting Effectiveness	Up to 9400 synthetic apertures/hour, 13000-14000 standard apertures/hour

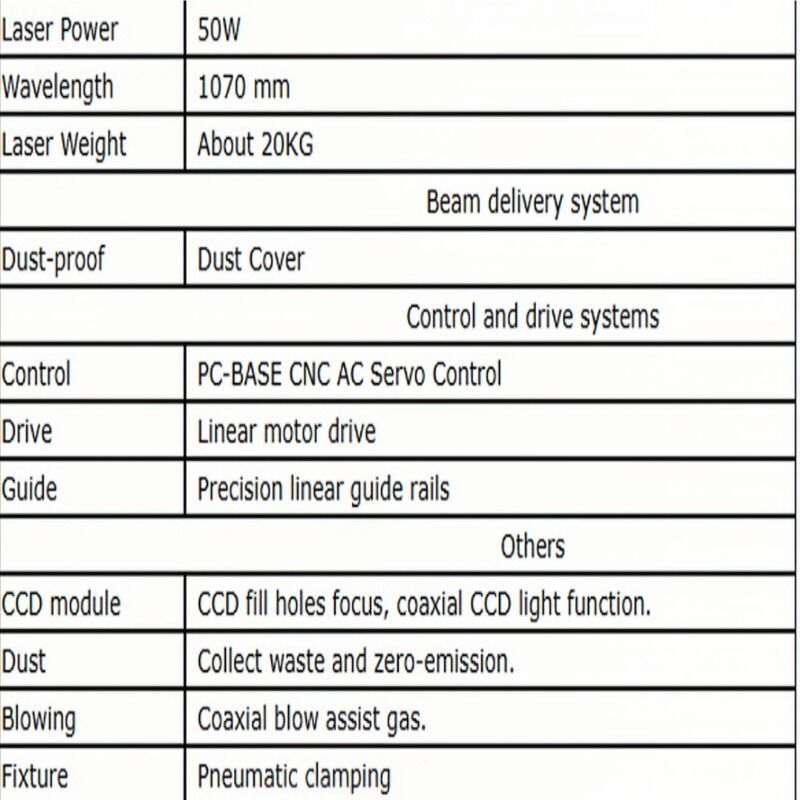

Configuration Specification

Laser Power	50W
Wavelength	1070nm
Laser Weight	Approximately 20KG
Beam Delivery System	Dust Cover
Control System	PC-BASE CNC AC Servo Control
Drive System	Linear motor drive
Guide System	Precision linear guide rails
CCD Module	CCD fill holes focus, coaxial CCD light function
Dust Collection	Collect waste and zero-emission
Blowing System	Coaxial blow assist gas
Fixture	Pneumatic clamping

Software System

Software System	YUSH Mark
Language	Chinese/English
Application Environment	Windows XP
File Format	DXF, CNC
Implementation Monitoring	Cutting time, cutting number of holes, auxiliary gas, cutting state

Software Features:

CNC support for direct document opening, DXF files, Gerber files with selection, rotation, and mirror operations
Support for establishing different cutting parameter databases for various steel thicknesses
Document path optimization capabilities
Automatic cutting member records and query functionality

Environmental Requirements

Power Requirements: Regulator (AC 220V single-phase 10KVA) with voltage fluctuations not exceeding ±5%
Grounding Requirements: Independent stable ground without interference (6mm² ground line)
Environmental Conditions: Pure oxygen supply, oil-free gas, ambient temperature 24-26°C, relative humidity below 60%, clean environment
