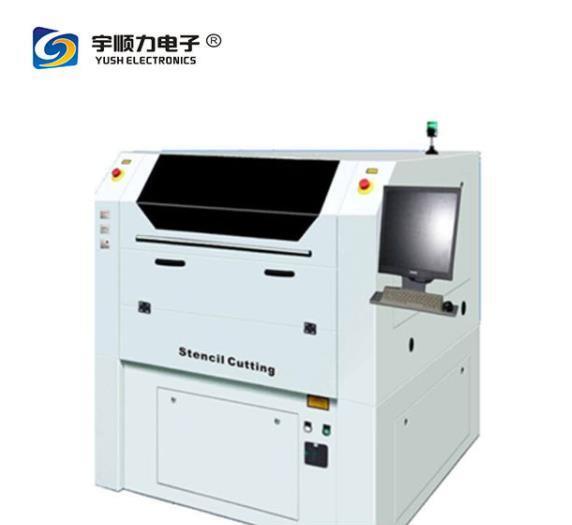

Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter
Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter
Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter
Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter
Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter
Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter

Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YS-GW50

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $50,000-100,000 / set

Get Best Price

Product Details

Product Description
Highlight:

fiber laser sheet metal cutter

,

1mm thick SMT stencil laser

,

PCB depaneling laser cutting machine

Weight:
2600 KG
Laser Power:
100w
Laser Wavelength:
1070nm
Working Voltage:
220V
Clamping Size:
650mm*720mm
Cutting Thickness:
1mm
Positioning Accuracy:
±2μ
Repeated Positioning Accuracy:
±2μ
Machine Size:
1640mm*1380mm*1500mm
Platform Velocity:
≤300mm/S
Location Detection Variability:
0.1μm
Cutting Range:
X 600mm * Y 600MM
Table Size:
X 620mm * Y 620MM
Focus Diameter:
25-30μm
Best Cutting Effectiveness:
Up To 9400 Synthetic Aperture / Hr
Weight:
2600 KG
Laser Power:
100w
Laser Wavelength:
1070nm
Working Voltage:
220V
Clamping Size:
650mm*720mm
Cutting Thickness:
1mm
Positioning Accuracy:
±2μ
Repeated Positioning Accuracy:
±2μ
Machine Size:
1640mm*1380mm*1500mm
Platform Velocity:
≤300mm/S
Location Detection Variability:
0.1μm
Cutting Range:
X 600mm * Y 600MM
Table Size:
X 620mm * Y 620MM
Focus Diameter:
25-30μm
Best Cutting Effectiveness:
Up To 9400 Synthetic Aperture / Hr
Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter
Fiber Laser Sheet Metal Cutting Machine - 1mm Thick SMT Stencil Laser Cutter
The YS-GW50 is a semiconductor-pumped solid-state high-power fiber laser cutting machine featuring advanced technology. This system significantly increases cutting efficiency while expanding the range of machinable products. It handles both ordinary metal sheets and precision parts with consistent thickness requirements.
Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter 0
Technical Specifications
Platform Positioning Accuracy ±3μm
Platform Repeatability ±1.5μm
Platform Velocity ≤300mm/S
Location Detection Sub Variability 0.1μm
Cutting Range X 600mm × Y 600mm
Table Size X 620mm × Y 620mm
Cutting Thickness ≤0.5mm (reference value)
Focus Diameter 25-30μm
Best Cutting Effectiveness Up to 9400 Synthetic Aperture/hr, 13000-14000 standard aperture/hour (with 0.3mm diameter standard round date, scope is 0.15mm less steel)
Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter 1
Configuration Specifications
Laser Light Source Specifications
Laser Power 50W
Wavelength 1070mm
Beam Delivery System
Dust-proof Dust Cover
Control and Drive Systems
Control PC-BASE CNC AC Servo Control
Drive Linear motor drive
Guide Precision linear guide rails
Additional Features
CCD Module CCD fill holes focus, coaxial CCD light function
Dust Collection Collect waste and zero-emission
Blowing System Coaxial blow assist gas
Fixture Pneumatic clamping
Fiber Laser Sheet Metal Cutting Machine 1mm Thick SMT Stencil Laser Cutter 2
Software System
Software System YUSH Mark
Language Chinese/English
Application Environment Windows XP
File Format DXF, CNC
Implementation Monitoring Cutting time, cutting the number of holes, the auxiliary gas, cutting state
Software Features
  • CNC support directly open documents, DXF file, Gerber file and drawing were selected, rotate, mirror and other operations
  • Support the establishment of different cutting parameters for different databases steel thickness steel
  • Support for documents path optimization
  • Supports automatic cutting member cutting case records to the query
