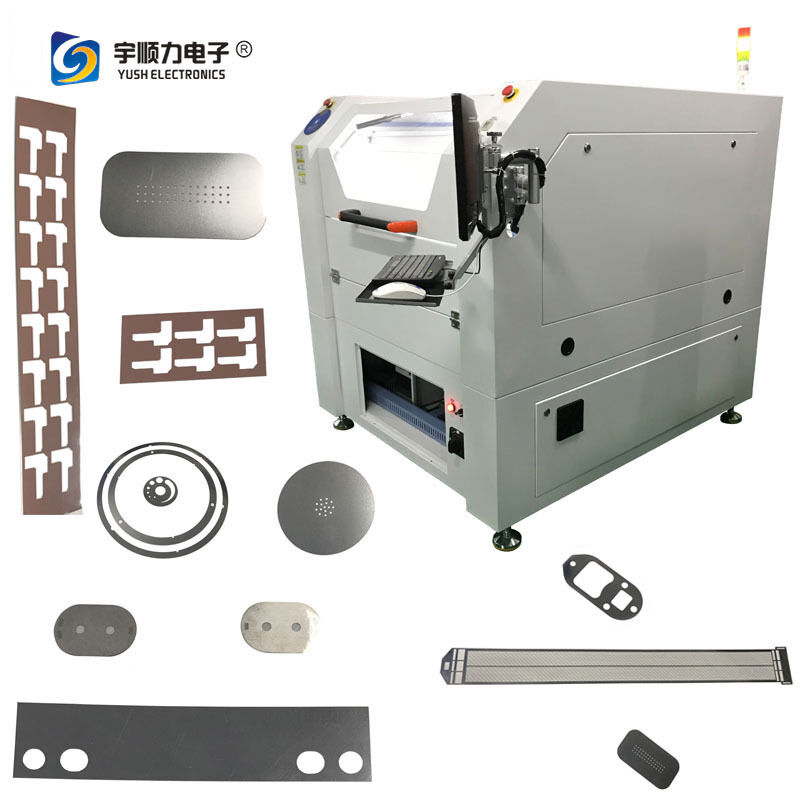

SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer

Name: SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-GW50
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Certification: ce

Model Number: YS-GW50

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $50,000-100,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT stencil laser cutting machine, fiber laser solder paste printer, PCB depaneling laser cutter


Weight:	2000 KG	Cutting Speed:	24000 Pad/h
Positioning Accuracy:	±2μ	Repeated Positioning Accuracy:	±2μ
Wavelength:	1070 Nm	Dimensions:	168015001630mm
Platform Velocity:	≤300mm/S	Location Detection Variability:	0.1μm
Cutting Range:	X 600mm * Y 600MM	Table Size:	X 620mm * Y 620MM
Cutting Thickness:	≤0.5mm	Focus Diameter:	25-30μm
Best Cutting Effectiveness:	Up To 9400 Synthetic Aperture / Hr, 13000-14000 Standard Aperture / Hour	Platform Repeatability:	±1.5μm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor

Weight:	2000 KG
Cutting Speed:	24000 Pad/h
Positioning Accuracy:	±2μ
Repeated Positioning Accuracy:	±2μ
Wavelength:	1070 Nm
Dimensions:	168015001630mm
Platform Velocity:	≤300mm/S
Location Detection Variability:	0.1μm
Cutting Range:	X 600mm * Y 600MM
Table Size:	X 620mm * Y 620MM
Cutting Thickness:	≤0.5mm
Focus Diameter:	25-30μm
Best Cutting Effectiveness:	Up To 9400 Synthetic Aperture / Hr, 13000-14000 Standard Aperture / Hour
Platform Repeatability:	±1.5μm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor

SMT Stencil Fiber Laser Cutting Machine for Solder Paste Printer

The YS-GW50 SMT Stencil Fiber Laser Cutting Machine from YUSHElectronic Technology Co., Ltd. is a high-performance solution for solder paste printer applications. This advanced cutting system combines precision engineering with innovative waste management for optimal performance in electronic manufacturing environments.

Key Features and Benefits

Advanced Waste Collection System: Innovative structure design with comprehensive waste and smoke collection that eliminates equipment stability issues caused by chips, slag, and iron dust, significantly extending equipment service life.

High Power Fiber Laser Technology: Semiconductor-pumped solid-state high-power fiber laser increases cutting efficiency and expands the range of machinable products, handling both ordinary metal sheets and precision parts with various thickness requirements.

Specialized Process Solutions: Professional fixture design accommodates materials of various sizes and shapes, optimizing user processes and maximizing equipment value through a complete equipment process system.

Technical Specifications

Positioning Accuracy	±3μm
Platform Repeatability	±1.5μm
Platform Velocity	≤300mm/S
Location Detection Sub Variability	0.1μm
Cutting Range	X 600mm × Y 600mm
Table Size	X 620mm × Y 620mm
Cutting Thickness	≤0.5mm (reference value)
Focus Diameter	25-30μm
Best Cutting Effectiveness	Up to 9400 Synthetic Aperture/hr, 13000-14000 standard aperture/hour (with 0.3mm diameter standard round date, 0.15mm less steel)

Physical Dimensions: 1680 × 1500 × 1630mm | Weight: 1200KG
