                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine YSVJ-650, PCB separator depaneling machine, YSVJ-650 PCB depaneling equipment


Weight:	350kgs	Voltage:	220V
Power:	110V/220V AC 60HZ/50HZ	Size:	L1300W400H1000mm
PCB Thickness:	0.8-3.0mm	Cutting Speed:	Adjustable
Blade Material:	SKH51 High Speed Steel	Top Cutter Adjustment:	0-5mm
Board Width Range:	15-20mm	Applicable Board:	LED Panel, Fiberboard, Aluminum Board (>400mm)
Core Components:	PLC, Gearbox, Motor, Pump	Cutting Process:	Unlimited
Conveyor Belt:	Included	Multiple Cutters:	Yes
Display Screen:	Gap Display

Weight:	350kgs
Voltage:	220V
Power:	110V/220V AC 60HZ/50HZ
Size:	L1300W400H1000mm
PCB Thickness:	0.8-3.0mm
Cutting Speed:	Adjustable
Blade Material:	SKH51 High Speed Steel
Top Cutter Adjustment:	0-5mm
Board Width Range:	15-20mm
Applicable Board:	LED Panel, Fiberboard, Aluminum Board (>400mm)
Core Components:	PLC, Gearbox, Motor, Pump
Cutting Process:	Unlimited
Conveyor Belt:	Included
Multiple Cutters:	Yes
Display Screen:	Gap Display

Pcb Deapneling Machine-YSVJ-650/PCB Separator

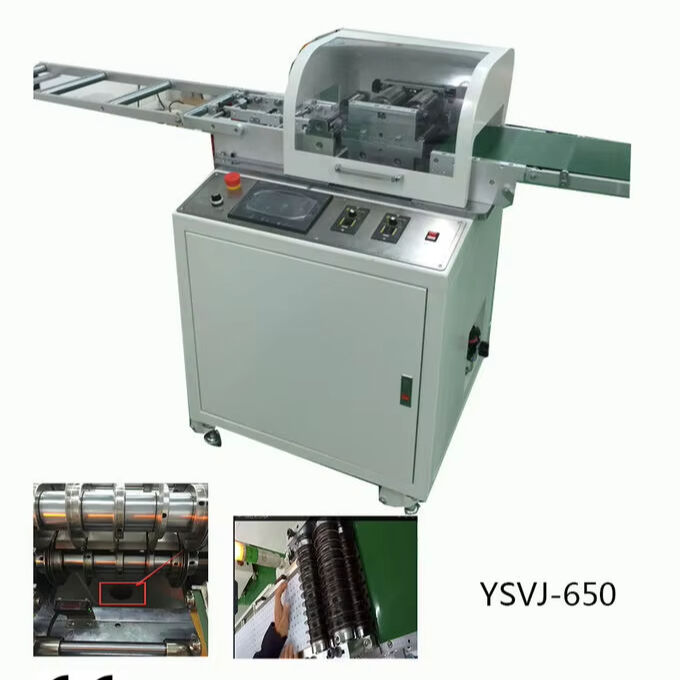

PCB Depaneling Machine YSVJ-650 / PCB Separator

YSVJ-650 PCB Singulation Machine - Advanced PCB separation solution for efficient panel processing

Key Features

Integral shaft design for top and bottom knives ensures convenient installation and maintenance
Computer screen control with production counting and preset capabilities
Direct display of cutting tool gap measurements on screen
Compatible with all V-cut PCB boards
Reduces stress during cutting to prevent solder joint cracking
Multiple cutter configuration enables simultaneous processing of several boards
Top cutter wheel adjustable range: 0-5mm
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades for extended service life and wear resistance
Variable cutting speed controlled by turn-knob adjustment
Integrated conveyor belt for direct output, enabling seamless docking with downstream equipment
Capable of cutting LED panels, fiberboards, aluminum boards (over 400mm) and special boards
Multi-knife operation for simple, efficient mass production

Technical Specifications

Power Supply	110V/220V AC 60Hz/50Hz
Dimensions	L1300 × W400 × H1000mm
Weight	350 kg
Cutting Process	Unlimited cutting capacity
PCB Thickness Range	0.8-3.0mm
Applicable Materials	LED panels, fiberboards, aluminum boards (over 400mm), special boards
