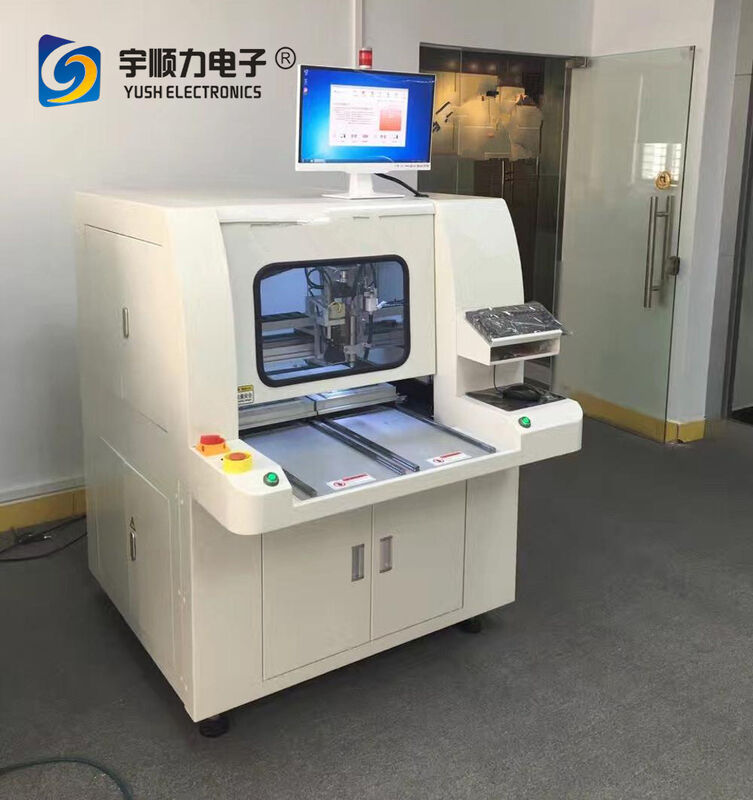

Name: PCB Separator /PCB Router . Automatic PCB Separator-YSVC-650
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-650
Price: 33.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YSVC-650

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $28,000-38,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic PCB depaneling machine, PCB router with warranty, YSVC-650 PCB separator


Weight:	500 KG	Dimensions:	1220mm * 1450mm * 1420mm
Height Offset:	60 ~ 110mm	PCB Size:	322mm * 322mm
PCB Thickness:	5mm	Spindle Speed:	50000rpm / Min
Cutting Speed:	100mm / S	Driving Speed:	3000mm / S
Cutting Precision:	0.1mm	Axis Precision:	0.001mm
Power:	2.2KW AC380V	Air Pressure:	2 ~ 5KG / Cm2
Spindle Power:	400W	Vacuum Power:	2.2KW AC 380V
Working Area:	680mm * 360mm * 50mm

Weight:	500 KG
Dimensions:	1220mm * 1450mm * 1420mm
Height Offset:	60 ~ 110mm
PCB Size:	322mm * 322mm
PCB Thickness:	5mm
Spindle Speed:	50000rpm / Min
Cutting Speed:	100mm / S
Driving Speed:	3000mm / S
Cutting Precision:	0.1mm
Axis Precision:	0.001mm
Power:	2.2KW AC380V
Air Pressure:	2 ~ 5KG / Cm2
Spindle Power:	400W
Vacuum Power:	2.2KW AC 380V
Working Area:	680mm * 360mm * 50mm

PCB Separator /PCB Router . Automatic PCB Separator-YSVC-650

PCB Separator / PCB Router - Automatic PCB Separator YSVC-650

Machine Specifications

Dimensions (W × D × H)	1220mm × 1450mm × 1420mm
Height Offset	60-110mm
Motor Type	JiaBao Series
Positioning Repeatability	0.001mm
Axis Working Area (Max)	680mm × 360mm × 50mm

Work Station & PCB Handling

PCB Fixation	Standard & Specialization
PCB Loading/Unloading	Manual
Maximum PCB Size	322mm × 322mm
Maximum PCB Thickness	5mm
Fixturing	Rigidity Fixturing Standard
Fixturing Fixation	Mechanical

Spindle Motor Specifications

Power	400W
Spindle Speed	50,000 rpm/min
Protection	Self/Wind Cooling
Cutter Change	Specialization

Routing Capability

Maximum Cutting Speed	100mm/s
Maximum Driving Speed	3000mm/s
Cutting Precision	0.01mm

Vacuum System

Vacuum Power	2.2KW AC 380V
Vacuum Plumb	Standard

Utilities

Power	2.2KW AC380V
Air Supply Pressure	2-5 KG/cm²

Programming & Control System

Program Edit: Inline
Function Edit: Line, Arc, Circular, U-curve
Program Storage: HDD
Vision System: SONE Color CCD
Milling Cutter Offset: AUTO
Vacuum Setup: AUTO

Operation Monitoring & Safety Features

Machine State Indicator
Automatic Tool Life Detection & Usage Time Testing
Motor Protection: Overheating, Overload, Low Voltage Protection
Motor Overload Check: Overload, Line Normal, Low Voltage Protection
Automatic Tool Life Detection
Data Statistics: Separate Board Model, Separating Count, Diverse Counting Methods
Error Record: Software Automatically Records All Alarms in Machine Memory
