Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                V-cut PCB depaneling machine, unlimited length LED cutter, motor-driven PCB separator


Weight:	40 Kg	Power:	10 KW
Voltage:	110 V, 220V	Cutting Speed:	0-400 Mm/s
Cutting Thickness:	1.0-3.5mm	Power Supply:	110/220 V
Segmentation Approach:	Straight	Dimensions:	420x280x400mm
Model:	YSVC-1S	Core Components:	Motor, PLC, Engine, Bearing, Gearbox
Depaneling Principle:	Linear Motion With Motor Knives	PCB Type:	V-CUT PCB
Guide Plate:	Safety In/out	Application:	Strip Light LED Cutting
Unlimited Length:	Yes

Weight:	40 Kg
Power:	10 KW
Voltage:	110 V, 220V
Cutting Speed:	0-400 Mm/s
Cutting Thickness:	1.0-3.5mm
Power Supply:	110/220 V
Segmentation Approach:	Straight
Dimensions:	420x280x400mm
Model:	YSVC-1S
Core Components:	Motor, PLC, Engine, Bearing, Gearbox
Depaneling Principle:	Linear Motion With Motor Knives
PCB Type:	V-CUT PCB
Guide Plate:	Safety In/out
Application:	Strip Light LED Cutting
Unlimited Length:	Yes

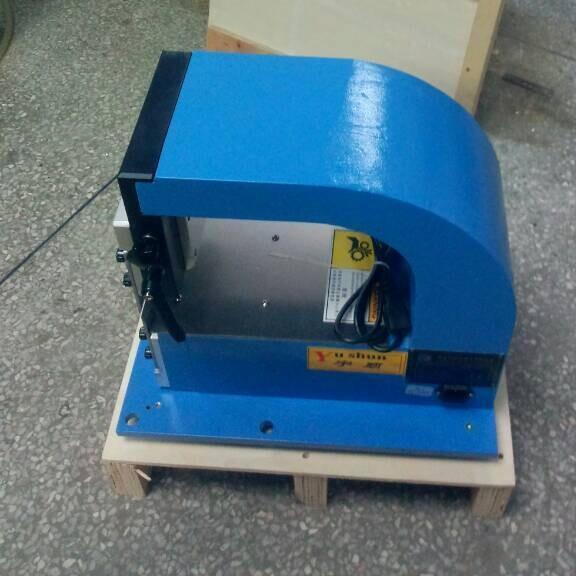

Motor Driving V-Cut PCB Separator Machine / Unlimited Length LED Cutter

YSVC-1S V-Cut PCB Separator Machine

Model	YSVC-1S
Dimensions	420x280x400mm
Cutting Speed	0-400 mm/s
Cutting Thickness	1.0-3.5mm
Power Supply	110/220 V
Segmentation Approach	Straight
Weight	Approx. 40 kg

Key Features

Depaneling principle: PCB with V-CUT performs linear motion under motor-driven up and down cutting knives
Applicable to all lined V-CUT PCB boards
Prevents welding spot cracking and decreases physical strength during cutting process
PCB aligns with V-CUT during sub-boarding for precise cutting with plunging and wheeling action
Guide plate ensures operator safety during cutting with reliable workpiece handling
Ideal for strip light LED cutting and can cut indefinite length PCB when adding tracks
