Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                V groove PCB depaneling machine, PCB cutting machine with V groove, V groove depaneling tool for PCBs


Weight:	350kg	Power:	110V/220V AC 60HZ/50HZ
Size:	L1300W400H1000mm	PCB Thickness:	0.8-3.0mm
Cutting Type:	Air	Top Cutter Adjustment:	0-5mm
Single PCB Width:	15-20mm	Blade Material:	SKH51 High Speed Steel
Cutting Speed:	Adjustable By Turn-knob	Conveyor Belt:	Included
Applicable Board:	LED Panel, Fiberboard, Aluminum Board (>400mm)	Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Multiple Cutters:	Yes	Cutting Process:	Unlimited
Display Screen:	Gap Display

Weight:	350kg
Power:	110V/220V AC 60HZ/50HZ
Size:	L1300W400H1000mm
PCB Thickness:	0.8-3.0mm
Cutting Type:	Air
Top Cutter Adjustment:	0-5mm
Single PCB Width:	15-20mm
Blade Material:	SKH51 High Speed Steel
Cutting Speed:	Adjustable By Turn-knob
Conveyor Belt:	Included
Applicable Board:	LED Panel, Fiberboard, Aluminum Board (>400mm)
Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Multiple Cutters:	Yes
Cutting Process:	Unlimited
Display Screen:	Gap Display

v groove Cutting Machine

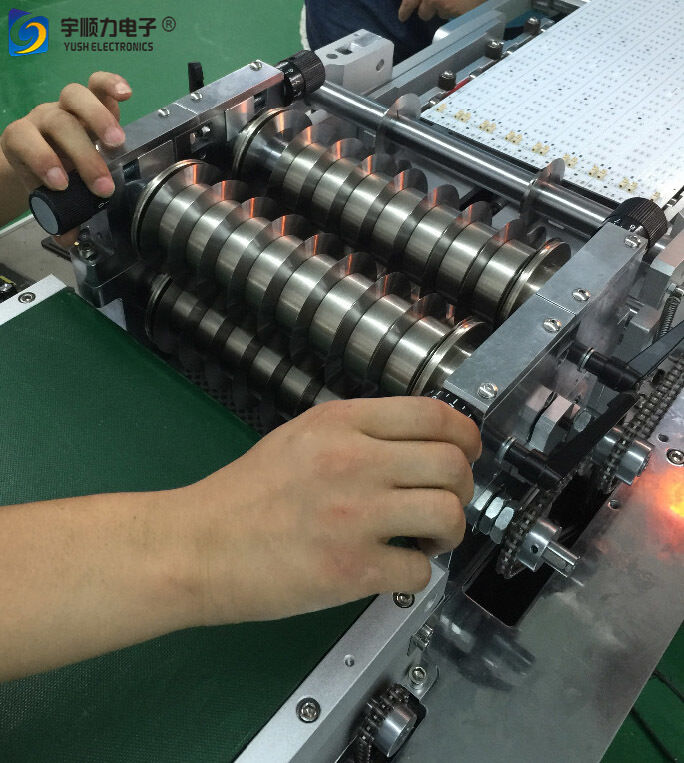

YSVJ-650 V-Groove Cutting Machine

Key Features

Integral shaft design for top and bottom knives ensures convenient installation and handling
Computer screen control with preset production counting and direct gap display
Compatible with all V-cut PCB boards
Reduces stress during cutting to prevent solder joint cracking
Multiple cutter configuration enables simultaneous cutting of several boards
Top cutter wheel features 0-5mm micro-adjustment capability
Adjustable knife distance suitable for single PCB boards 15-20mm wide
SKH51 high-speed steel blades for extended service life and wear resistance
Variable cutting speed with convenient turn-knob adjustment
Integrated conveyor belt for automated board handling and next-machine docking
Versatile material compatibility including LED panels, fiberboard, aluminum boards (400mm+), and specialty boards
Multi-knife operation for simple, efficient mass production

Technical Specifications

Power Supply	110V/220V AC 60Hz/50Hz
Dimensions	1300mm (L) × 400mm (W) × 1000mm (H)
Weight	350kg
Cutting Process	Unlimited cutting capacity
PCB Thickness Range	0.8mm - 3.0mm
Compatible Materials	LED panels, fiberboard, aluminum boards (400mm+), and specialty boards
