Multifunctional Laser Cutting Machine Spare Parts for Wholesalers . FPCB Laser Cutting Machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Certification: ce

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $28,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                FPCB laser cutting machine parts, PCB depaneling machine spare parts, multifunctional laser cutting components


Weight:	3500 Kg	Power:	10 KW
Voltage:	220V, 110V	Laser Wavelength:	355nm
Laser Power:	10W	Maximum Processing Format:	610mm X 500mm
XY Platform Speed:	50m/min	Positioning Accuracy:	±3um
Repeatability:	±1um	System Precision:	±20um
Galvanometer Scanning Range:	50mm X 50mm	Cutting Thickness:	<1mm
Power Supply:	AC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW	Working Air Pressure:	516m3/h
Dimensions:	1818mm X 2317mm X 1550mm

Weight:	3500 Kg
Power:	10 KW
Voltage:	220V, 110V
Laser Wavelength:	355nm
Laser Power:	10W
Maximum Processing Format:	610mm X 500mm
XY Platform Speed:	50m/min
Positioning Accuracy:	±3um
Repeatability:	±1um
System Precision:	±20um
Galvanometer Scanning Range:	50mm X 50mm
Cutting Thickness:	<1mm
Power Supply:	AC220V 50Hz / 2.2KW; Three-phase 380V 50Hz / 5.5KW
Working Air Pressure:	516m3/h
Dimensions:	1818mm X 2317mm X 1550mm

Multifunctional Laser Cutting Machine Spare Parts for Wholesalers . FPCB Laser Cutting Machine

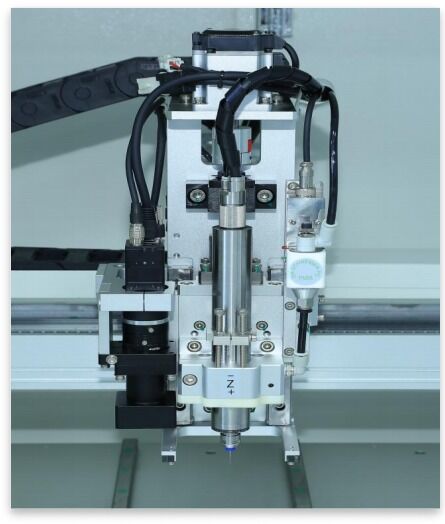

YSVC-650 Multifunctional FPCB Laser Cutting Machine

YUSH Technology brand is a premium instrument manufacturer specializing in FPC ultraviolet laser cutting machines. Our FPC laser cutting machines are primarily used for precision cutting of CVL, FPC, RF, and thin plywood materials.

Applications

Available for flexible circuit boards and organic coating for precision cutting without mold or protective plate fixation. Using high-energy laser sources with precise beam control ensures improved processing speed and precise machining results.

Key Features

Proprietary control software with user-friendly interface, complete functionality, and simple operation
Capable of processing any graphics with different thicknesses and materials, complete hierarchical synchronization
Optimized optical system design ensures high beam quality and reduced focused spot size for precision cutting
High-performance UV laser with optimal wavelength, superior beam quality, and higher peak power characteristics
Vacuum sample fixation eliminates need for mold protection plates, improving processing efficiency
Capable of cutting various substrate materials including silicon, ceramic, and glass
Automatic correction, positioning, multi-plate cutting, thickness measurement and compensation functions

Technical Specifications

Laser Source	Solid-state UV laser, 355nm wavelength
Laser Power	10W
Maximum Processing Format	610mm × 500mm (24" × 18")
XY Platform Speed	50m/min maximum operating speed
Positioning Accuracy	±3μm
Repeatability	±1μm
System Precision	±20μm
Galvanometer Scanning Range	50mm × 50mm
Cutting Thickness	<1mm
Power Requirements	AC220V 50Hz / 2.2KW or three-phase 380V 50Hz / 5.5KW

Physical Specifications

Dimensions	1818mm × 2317mm × 1550mm
Weight	3500kg
Air Requirements	516m³/h
Operating Temperature	20℃ ± 2℃
Humidity	<60% RH non-condensing
Ground Amplitude	<5μm
Vibration Acceleration	<0.05g
Ground Pressure	2200kgf/m²

Control System

Industry-specific control equipment with flexible processing software, dedicated motion control card, and IPC control mode. Includes 17" monitor, 300G+ hard drive, and supports standard G-code, Gerber data, and CAD formats.

Application Scope

Suitable for all V-CUT SMD PCB FPC boards and flexible circuit board applications.
