YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $30,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                YS-G6565 laser cutting machine, PCB depaneling laser cutter, new generation laser cutting equipment


Weight:	500 KG	Laser Power:	QCW-150W/1500W
Laser Wavelength:	1070nm	Beam Quality:	M²<1.1
Cutting Speed:	About 23000 Pad/h	Working Range:	650mm*650mm
Clamping Size:	680mm*720mm	Overall Dimension:	1640mm1380mm1500mm
Cutting Accuracy:	±0.01mm (Specified Material)	Positioning Accuracy:	±2μm
Repeated Positioning Accuracy:	±2μm	Cooling Way:	Air Cooling/water Cooling
Auxiliary Cutting Gas:	Oxygen 8-10Kg Compressed Air16Kg	Maximum Acceleration:	2.0G
Core Components:	PLC, Engine, Bearing, Gearbox, Motor

Weight:	500 KG
Laser Power:	QCW-150W/1500W
Laser Wavelength:	1070nm
Beam Quality:	M²<1.1
Cutting Speed:	About 23000 Pad/h
Working Range:	650mm*650mm
Clamping Size:	680mm*720mm
Overall Dimension:	1640mm1380mm1500mm
Cutting Accuracy:	±0.01mm (Specified Material)
Positioning Accuracy:	±2μm
Repeated Positioning Accuracy:	±2μm
Cooling Way:	Air Cooling/water Cooling
Auxiliary Cutting Gas:	Oxygen 8-10Kg Compressed Air16Kg
Maximum Acceleration:	2.0G
Core Components:	PLC, Engine, Bearing, Gearbox, Motor

YS-G6565Laser Cutting Machine Is a New Generation of Laser Cutting Machine

YS-G6565 Laser Cutting Machine - Next Generation Performance

The G6565 laser cutting machine represents a new generation of laser cutting technology, featuring significant improvements in both performance and user-friendly operation design compared to previous models. Engineered to meet evolving market demands, this equipment delivers superior cutting speeds while maintaining exceptional cutting quality. With performance and operability comparable to imported equipment, the YS-G6565 offers significantly higher cost efficiency.

Technical Specifications

Machine Model	YS-G6565
Laser Power	QCW-150W/1500W
Laser Wavelength	1070nm
Beam Quality	M²<1.1
Cutting Speed	Approximately 23,000 pad/h
Working Range	650mm × 650mm
Clamping Size	680mm × 720mm

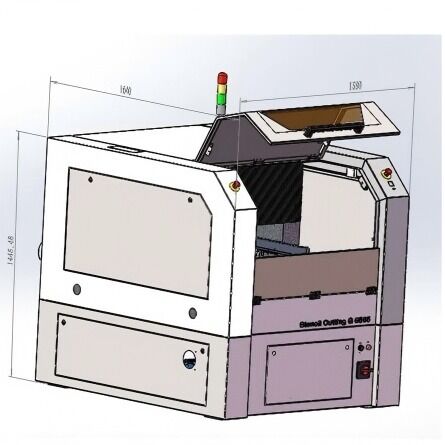

Overall Dimension	1640mm × 1380mm × 1500mm
Cutting Accuracy	±0.01mm (Specified material)
Positioning Accuracy	±2μm
Repeated Positioning Accuracy	±2μm
Cooling Method	Air cooling/water cooling
Auxiliary Cutting Gas	Oxygen 8-10Kg, Compressed air 16Kg

Advanced Product Features

Double drive structure with linear motor and iron core provides high inertia and large thrust, achieving maximum acceleration of 2.0G for high-speed, precise equipment operation
American imported drivers with advanced adjustment algorithms enhance cutting performance and ensure processing accuracy
Imported IPG fiber laser delivers stable output power, long lifespan, maintenance-free operation, and vertical smooth processing hole walls
Natural marble base structure ensures safety and stability
High-precision grating ruler full closed-loop system provides real-time feedback and reduces repeated positioning errors
User-friendly operation with simple interface capable of processing any plane graphics in compact equipment size
High reliability supports continuous 24-hour stable production for industrial mass production requirements
Customization capability to create exclusive models tailored to specific customer needs

Equipment Main Modules

Motion Module

Rack Platform

Specification Details
