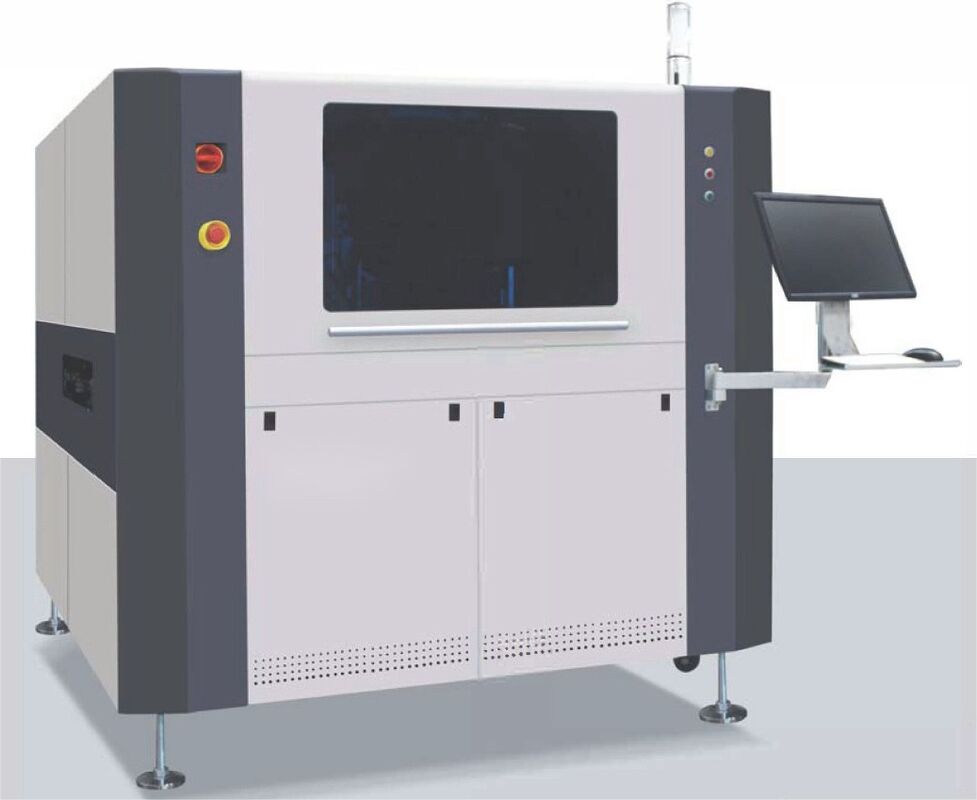

High Quality and High Efficiency Oxersize Laser Maker YSL-U1200

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $55,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling laser machine, high efficiency laser depaneler, Oxersize YSL-U1200 laser cutter


Weight:	1000 KG	Voltage:	220V
Dimensions:	190019001650 Mm	Power Supply:	1500W~1530W
Air Supply:	5-7Kgf/cm² Or 0.5-0.7 Mpa	Operating System:	Windows 10
Marking Accuracy:	0.02mm	X-Y Transfer Speed:	1000mm/s
Conveyor Speed:	0-3000mm/min	Top Clearance:	20mm
Bottom Clearance:	20mm	Exhaust Pipe Diameter:	50mm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor	Power Frequency:	50Hz
Positioning Accuracy:	±0.02mm

Weight:	1000 KG
Voltage:	220V
Dimensions:	190019001650 Mm
Power Supply:	1500W~1530W
Air Supply:	5-7Kgf/cm² Or 0.5-0.7 Mpa
Operating System:	Windows 10
Marking Accuracy:	0.02mm
X-Y Transfer Speed:	1000mm/s
Conveyor Speed:	0-3000mm/min
Top Clearance:	20mm
Bottom Clearance:	20mm
Exhaust Pipe Diameter:	50mm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Power Frequency:	50Hz
Positioning Accuracy:	±0.02mm

High Quality and High Efficiency Oxersize Laser Maker YSL-U1200

Product Overview

The YSL-U1200 Oxersize Laser Marker delivers exceptional precision and efficiency for industrial marking applications, featuring advanced automation and compatibility with various materials and systems.

Key Features

Automatic control with PC + QC software and Windows 10 operating system
Optional CO2/Fiber/Gr/UV laser marking system configurations
XY precision positioning with CCD + mark precise positioning
Marking position accuracy within 0.02mm
Capable of printing Chinese characters, English, numbers, charts, serial numbers, LOGOs, bar codes, and two-dimensional codes
Supports Gerber, DXF and other document imports
High quality, high efficiency, and high stability with no production consumables
Compatible with Shopfloor/MES System integration
Visual interface for easy operation

Compatible Materials

Supports PCB, FPC, metal shield covers, and various other industrial materials.
