Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high speed PCB depaneling machine, high efficiency laser maker YSL-U530, PCB depaneling machine with warranty


Weight:	650 KG	Voltage:	220V
Power Supply:	220VAC 50Hz	Power:	1500W
Dimensions:	98016001651 Mm	Air Supply:	5-7Kgf/cm² Or 0.5-0.7 Mpa
Print Accuracy:	0.02mm	Transfer Speed:	Max 1000mm/S
X-Y Speed:	1000m/s (1500mm/S Optional)	Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Control System:	PC+ Motion Control+ Servo Motor	Width Adjustment:	CNC Automatic
Operation System:	Windows 10	Interface:	English
Direction:	Left To Right Or Right To Left

Weight:	650 KG
Voltage:	220V
Power Supply:	220VAC 50Hz
Power:	1500W
Dimensions:	98016001651 Mm
Air Supply:	5-7Kgf/cm² Or 0.5-0.7 Mpa
Print Accuracy:	0.02mm
Transfer Speed:	Max 1000mm/S
X-Y Speed:	1000m/s (1500mm/S Optional)
Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Control System:	PC+ Motion Control+ Servo Motor
Width Adjustment:	CNC Automatic
Operation System:	Windows 10
Interface:	English
Direction:	Left To Right Or Right To Left

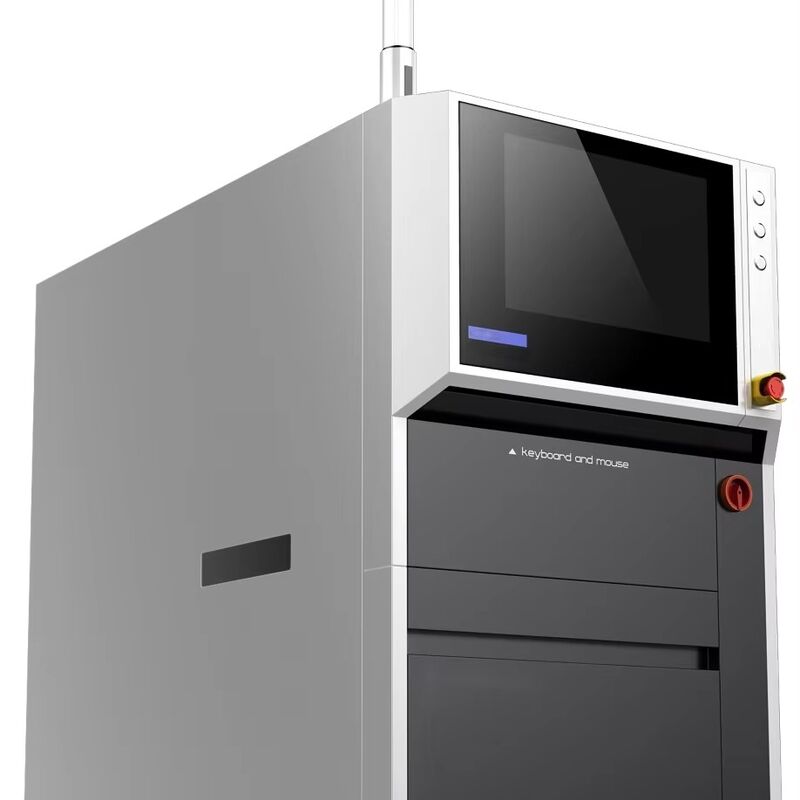

High Speed and High Efficiency Laser Maker YSL-U530

Key Features

Automated control with English interface
Windows 10 operating system compatibility
Dual camera system for fiducials and pattern verification
0.02mm printing accuracy for precision marking
Versatile marking capabilities: characters, numbers, logos, barcodes, QR codes
Shopfloor/MES system connectivity
Supports PCB, FPC, metal and various materials
Intuitive visual interface
Optional inverter function

Technical Specifications

Control System	PC + Motion Control + Servo Motor
Direction	Left to Right or Right to Left
Width Adjustment	CNC Automatic Width Adjustment
Transfer Speed	Maximum 1000mm/S
X-Y Transfer Speed	1000mm/S (1500mm/S Optional)

Integrated Dust Removal System

This integrated dust removal system is specifically designed for our laser maker to effectively remove dust produced during laser operation, ensuring clean and efficient performance.

Dust Removal System Features
