Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT laser marking machine, single-lane PCB depaneling machine, YSL-510 laser marking system


Weight:	750KG	Voltage:	220V/110V
Repeated Positioning Accuracy:	±0.02mm	PCB Size:	510*460mm
Wave Length:	355nm, 532nm, 1064nm, 10640nm	Service Power:	UV (3w,5w), Green (7w,10w), Fiber (10w,20w,30w), Co2(10w,20w,30w)
Laser Marking Range:	5050-510460mm	Marking Speed:	7000mm/s
Marking Position Accuracy:	±0.05mm	PCB Thickness:	0.5-5mm
Electricity Demand:	220V/50Hz, ≈2500W	Ambient Temperature:	20-28℃
Humidity:	30%-60%	Barometric Pressure:	0.4-0.6Mpa
Dimensions:	92015001500mm

Weight:	750KG
Voltage:	220V/110V
Repeated Positioning Accuracy:	±0.02mm
PCB Size:	510*460mm
Wave Length:	355nm, 532nm, 1064nm, 10640nm
Service Power:	UV (3w,5w), Green (7w,10w), Fiber (10w,20w,30w), Co2(10w,20w,30w)
Laser Marking Range:	5050-510460mm
Marking Speed:	7000mm/s
Marking Position Accuracy:	±0.05mm
PCB Thickness:	0.5-5mm
Electricity Demand:	220V/50Hz, ≈2500W
Ambient Temperature:	20-28℃
Humidity:	30%-60%
Barometric Pressure:	0.4-0.6Mpa
Dimensions:	92015001500mm

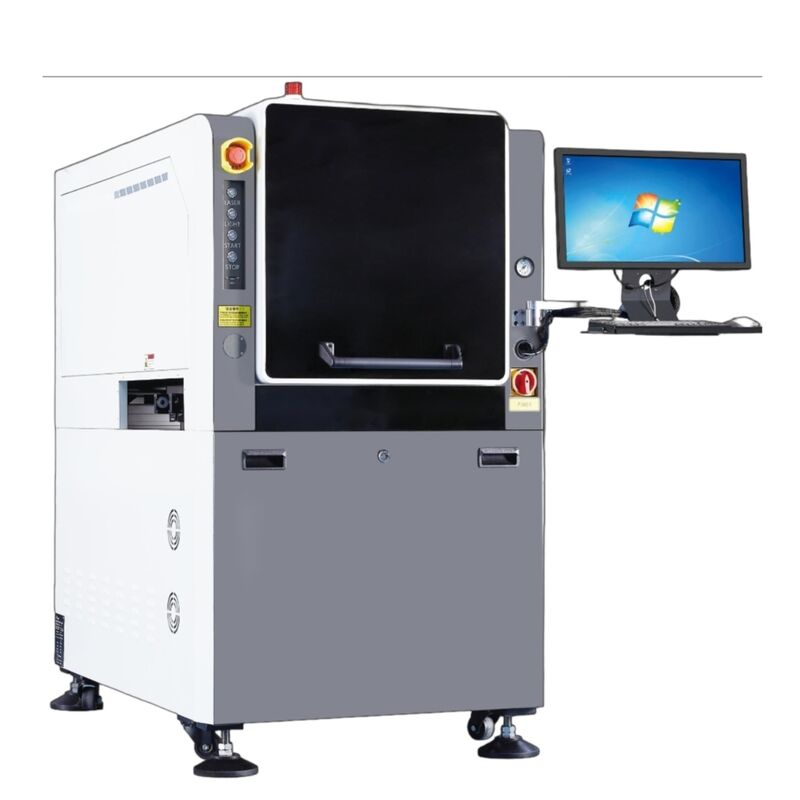

YSL-510 SMT in Line Single-Laser Single Lane Laser Marking Machine

YSL-510 SMT In-Line Single-Laser Single Lane Laser Marking Machine

High-precision laser marking system designed for SMT production lines, featuring coaxial vision correction for accurate PCB marking applications.

Technical Specifications

Model	YSL-510 (Single-head coaxial vision)
Wave Length	355nm, 532nm, 1064nm, 10640nm
Laser Power	UV (3W, 5W), Green (7W, 10W), Fiber (10W, 20W, 30W), CO2 (10W, 20W, 30W)
Marking Range	50×50mm to 510×460mm
PCB Size	510×460mm
Marking Speed	Up to 7000mm/s Example: 3×3mm white ink QR code with 55 digits completed within 1 second
Marking Position Accuracy	±0.05mm (Customizable according to requirements)
Repeated Positioning Accuracy	±0.02mm
Visual System	Coaxial hawk-eye visual correction for standard graphics acquisition, accurate marking on FPC, soft/hard boards, and deformed positions
PCB Thickness	0.5-5mm (Thicker specifications available as custom option)
Power Requirements	220V/50Hz, Total Power ≈2500W

Supported Code Types & Formats

1D Barcode Types	Code 39, Code 25, Code 93, Code 128, EAN-13, EAN-8, ISBN and others
2D QR Code Types	Datamatrix, QR Code, Micro QR Code, PDF417, Code49, Code 16k and other common formats
QR Code Processing Size	1.5mm×1.5mm to 20mm×20mm Minimum size depends on QR code content
Character Types	TrueType fonts, single-line fonts (JSF), SHX fonts, Dot matrix fonts (DMF)
Supported File Formats	DXF, PLT, Excel, TXT and other common formats
Automatic Positioning	Supports automatic photo capture, 2, 3, and 4 point positioning modes
