Name: Automatic Bidirectional Pcb Cutting Machine/V Cut Sparator/cutting Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSV-5A
Price: 108.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YSV-5A

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: $16,200 / piece

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic PCB cutting machine, bidirectional V cut separator, PCB depaneling machine with warranty


Weight:	300 KG	Dimension:	12508001295mm
Working Pressure:	0.5-0.8mpa	Voltage:	220V/110V
Power:	300KW	Cutting Speed:	300-500pcs/min
Core Components:	PLC, Engine, Bearing, Gearbox, Motor	Model:	YSV-5A
Operation Type:	Touch-screen	PLC Data Storage:	100 Groups
Product Replacement Time:	10 Minutes	Board Type:	Led Pcb
Direction Capability:	Bidirectional, Horizontal, Vertical	Automation Level:	Fully Automatic
Tool Durability:	1.5 Times Increased

Weight:	300 KG
Dimension:	12508001295mm
Working Pressure:	0.5-0.8mpa
Voltage:	220V/110V
Power:	300KW
Cutting Speed:	300-500pcs/min
Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Model:	YSV-5A
Operation Type:	Touch-screen
PLC Data Storage:	100 Groups
Product Replacement Time:	10 Minutes
Board Type:	Led Pcb
Direction Capability:	Bidirectional, Horizontal, Vertical
Automation Level:	Fully Automatic
Tool Durability:	1.5 Times Increased

Automatic Bidirectional Pcb Cutting Machine/V Cut Sparator/cutting Machine

Automatic Bidirectional PCB Cutting Machine / V-Cut Separator

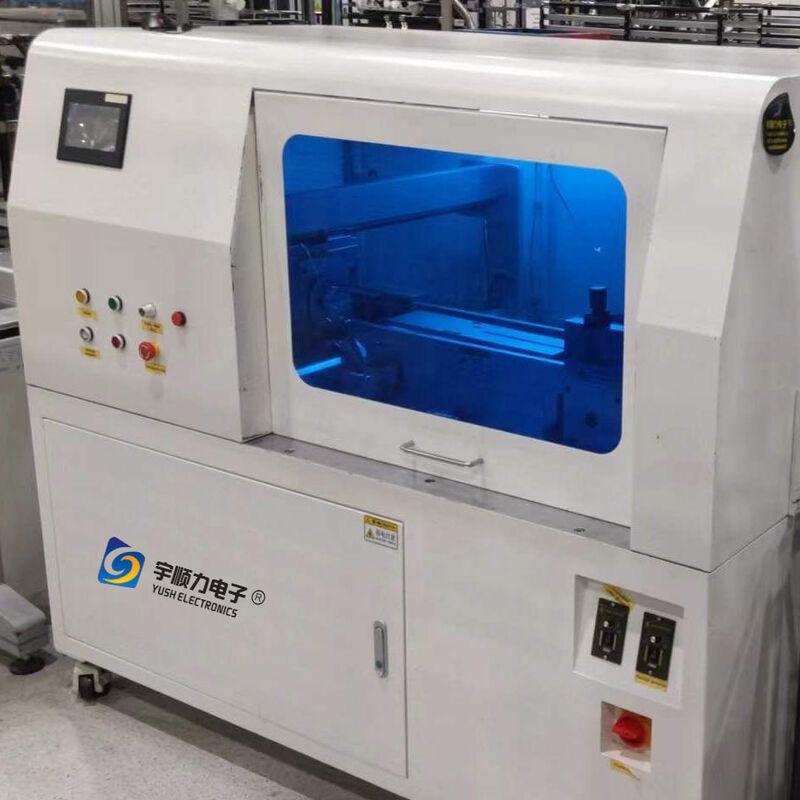

The YSV-5A Automatic Bidirectional PCB Depaneling Machine is an advanced solution for separating V-groove PCB boards into sub-boards with high efficiency and precision.

Model: YSV-5A

Key Advantages

Bidirectional horizontal and vertical splitting capability for well-shaped V-groove PCB boards
High automation level with seamless integration into production lines
Touch-screen operation for quick product changeovers
Modular design enables product replacement in just 10 minutes
PLC data storage capacity for 100 product groups
Optional vacuum cleaner system available

Machine Features

Fully automatic bidirectional board separation capability
Flexible operation for horizontal or vertical separation only
Rapid product replacement with fast modular conversion
Seamless integration with upstream and downstream equipment for fully automated production
User-friendly operation requiring minimal training
Unique new tool design with 1.5x increased durability

Product Images

Technical Specifications
