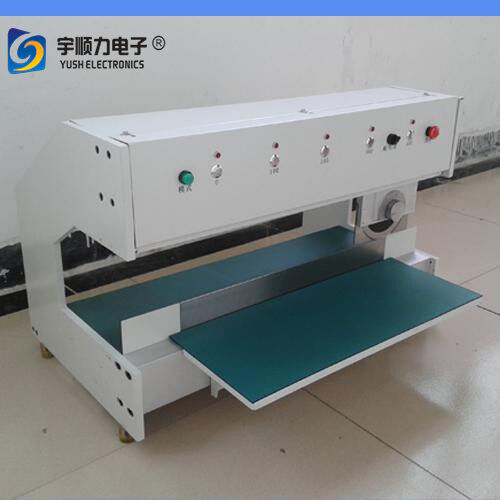

Name: High Speed Pcb Cutting/lead Cutting Machine/pcb Cutting Automatic Machine [YSV-1A]
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSV-1A
Price: 3 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YSV-1A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $3,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high speed PCB depaneling machine, automatic PCB lead cutting machine, YSV-1A PCB cutting machine


Weight:	55Kg	Power Supply:	110/220 V
Minimize Speed:	100/200/300/500mm/s	Poles Number:	1
Type:	Air	Size:	780 X 460X 560mm
Thickness:	0.6-3.5mm	Model:	YSV-1
Length:	460 Or 600mm	Speed:	100/200/300/500mm/s
Power Supply:	110/220V	Size:	770510450mm
Core Components:	Gear	Blade Clearance:	Adjustable

Weight:	55Kg
Power Supply:	110/220 V
Minimize Speed:	100/200/300/500mm/s
Poles Number:	1
Type:	Air
Size:	780 X 460X 560mm
Thickness:	0.6-3.5mm
Model:	YSV-1
Length:	460 Or 600mm
Speed:	100/200/300/500mm/s
Power Supply:	110/220V
Size:	770510450mm
Core Components:	Gear
Blade Clearance:	Adjustable

High Speed Pcb Cutting/lead Cutting Machine/pcb Cutting Automatic Machine [YSV-1A]

High Speed PCB Cutting/Lead Cutting Machine - YSV-1A

Technical Specifications

Model	YSV-1
Length (mm)	460 or 600
Speed (mm/s)	100/200/300/500
Thickness (mm)	0.6-3.5
Power Supply (V)	110/220
Size (mm)	770×510×450
Weight	55kg

Key Features

Separate pre-scored PCB assembly without stress on either PCB or component
One touch programming of cut length with digital display
Separating speed is adjusted by a rotary knob
Handle intermittent scoring or cut-outs
Board with projected component can be cut precisely
Large stainless steel platform on both sides of cutting blade prevents board wobble; table height and angle are adjustable
Optional PCB conveyor belt to remove finished board
Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear

Competitive Advantages

YSV-1A LED PCB depaneling machine original manufacturers
24-hour technical support services
Limited handling of complaints with 30-minute response time to customers
Depanel experts providing professional PCB solutions
