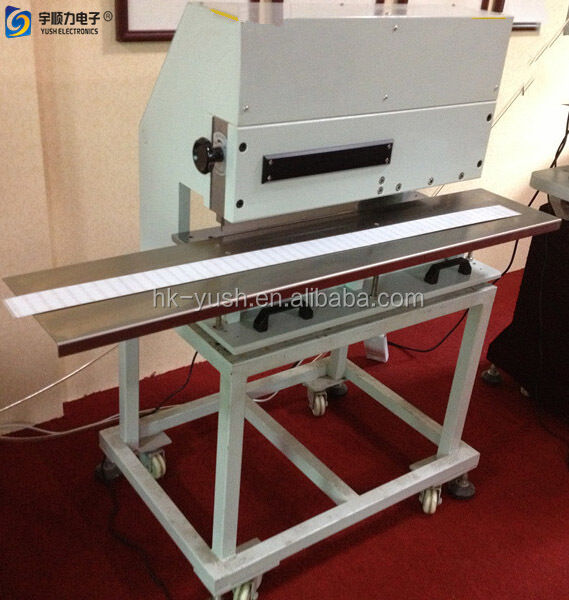

Name: Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-3
Price: 10 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YSVC-3

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $10,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB guillotine lead cutter, PCB depaneling cutting machine, PCB lead trimming machine


Weight:	85Kg	Power:	40W
Model:	YSVC-3	Package Size:	780mmx500mmx620mm
Minimize Thickness:	0.3-3.5mm	Machine Weight:	185Kg
Max Depaneling Length:	Unlimited	Max Component Height:	50mm
Min Board Thickness:	0.3mm	Max Board Thickness:	2.0mm
Component Clearance:	1mm	Control Method:	Pneumatic-driven
Operation Method:	Foot Pedal	Core Components:	Motor
Depaneling Stress:	No Bending/tension

Weight:	85Kg
Power:	40W
Model:	YSVC-3
Package Size:	780mmx500mmx620mm
Minimize Thickness:	0.3-3.5mm
Machine Weight:	185Kg
Max Depaneling Length:	Unlimited
Max Component Height:	50mm
Min Board Thickness:	0.3mm
Max Board Thickness:	2.0mm
Component Clearance:	1mm
Control Method:	Pneumatic-driven
Operation Method:	Foot Pedal
Core Components:	Motor
Depaneling Stress:	No Bending/tension

Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine

PCB Guillotine Machine - PCB Lead Cutting Machine

YSVC-3 Model - Professional PCB depaneling solution for efficient and safe board separation

Technical Specifications

Model	YSVC-3
The Longest Cut	Unlimited
Package Size	780mm x 500mm x 620mm
Cut Thickness	0.3-3.5mm
Machine Weight	185Kg

Application Scope

Cut any length metal board safely and easily
Separates long boards directly without turning direction
Separates boards up to 2.0mm thick metal board
Shears boards safely with parts as close as 1mm to the score line, including ceramic capacitors
Operator foolproof design - panels cannot be inserted into knives except on the score line
Handles high components up to 50mm
Avoids bow waves that can occur with round knives
Easy adjustment of distance between knives

Key Advantages

Maximum PCB depaneling length is unlimited
Depaneling PCB without bending and tension stress
Safety use with easy operation
Depaneling process without vibrations

Technical Features

Designed to depanel pre-scored PCB carefully without bending and tension stress
Even sensitive SMD components like ceramic capacitors remain undamaged during depaneling
Thin boards down to 0.3mm can be worked safely
Vibration-free depaneling process
Pneumatic-driven and electromagnetic valve control method
Foot pedal operation for depaneling control
Accommodates components up to 50mm near V-groove
Easy adjustment of PCB insertion gap
