YS-509 Blade Moving PCB Separator
The YS-509 Blade Moving PCB Separator is a precision V-cut depaneling machine designed for separating PCB arrays after soldering while protecting components and circuits from damage.
Key Features
- Reduces internal stress (500-800μE) to prevent solder cracks and component fractures
- Utilizes round blade (upper) and strip blade (lower) for clean, smooth cuts
- Microcomputer-controlled operation with counter functionality
- Adjustable round blade speed: 0-500 mm/s
- Customizable blade moving distance: 0-356/500mm
- Blade height adjustment: 0-2mm for different PCB thicknesses
- Platform height adjustable: 17-93mm
- Programmable stop positions for specific PCB lengths
- Maximum PCB width: unlimited, length: 356/500mm, thickness: 0.2-2mm
- Component height limits: Upper face 0-35mm, Lower face 0-74mm
- SKH-11 high-speed steel blades for durability and longevity
- Optional conveyor system for automated PCB removal
- Light curtain and blade shell for operator safety

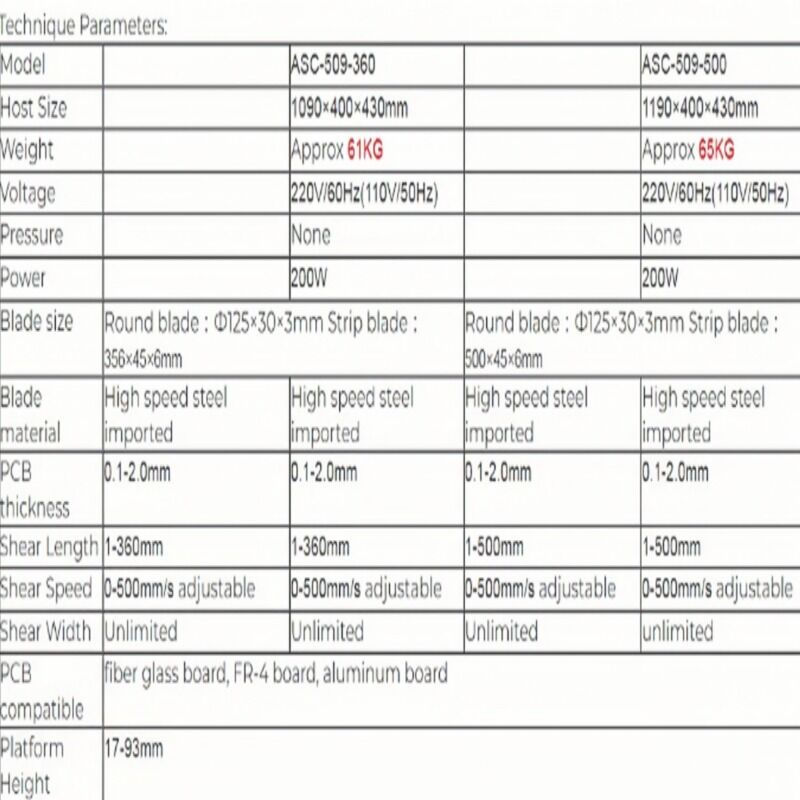

Technical Specifications
| Parameter |
Specification |
| Blade Type |
Round blade (upper), Strip blade (lower) |
| Blade Speed |
0-500 mm/s adjustable |
| Cutting Length |
0-356/500mm (customizable) |
| PCB Thickness |
0.2 to 2mm |
| Component Height Limit (Upper) |
0-35mm (3mm from V-slot) |
| Component Height Limit (Lower) |
0-74mm (25mm from V-slot) |
| Blade Material |
SKH-11 High Speed Steel |
Applications
Suitable for diversified glass fiber boards, FR-4 boards, aluminum boards, and especially for PCBs with components on both faces.
