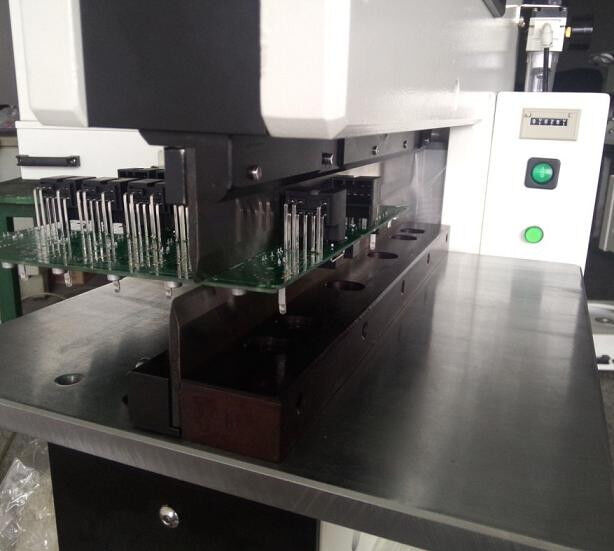

Automatic LED Strip PCB Depanel Machine YSVC-2
The YSVC-2 Automatic LED Strip PCB Depaneling Machine offers precision separation of pre-scored panel boards with advanced pneumatic drive technology, ensuring safe processing even for delicate PCBs with sensitive SMD components.
Key Features
- Easy maintenance and operation
- Safe shearing of thin PCBs down to 0.3mm thickness
- Vibration-free shearing process with pneumatic drive unit
- Pneumatically driven with electromagnetic valve control
- Foot pedal operation for precise control
- Accommodates components up to 70mm near V-groove
- Minimum 0.5mm clearance between V-groove and components
- Adjustable PCB insertion gap with front knob control
Technical Specifications
| Maximum Board Length |
330mm (Custom lengths available) |
| Cutting Thickness Range |
0.3-3.5mm |
| Voltage and Power |
110V/220V |
| Working Air Pressure |
0.5-0.7Mpa |
| Machine Dimensions |
620×230×400mm |
| Weight |
165kg |
Advanced Operation Features
Straight knife PCB separator with pneumatic drive and electric control ensures careful separation of pre-scored panel boards without bending or tension stress. The specialized knife design safely processes boards with high components placed close to edges, using wedge-shaped knives to cut within the groove for stress-free separation of boards under 1mm thickness.
Performance Advantages
- Vibration-free operation protects precision PCB components
- Low friction design with top-side adjustable insertion gap
- Separately adjustable front and rear lower knife height
- No thin plates required after knife re-sharpening
- Simple operation suitable for unskilled personnel
Packaging & Shipping
Our Services
Company Information
YUSH Electronic Technology Co., Ltd. is a professional manufacturer and trader specializing in the research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, all products comply with international quality standards and serve markets worldwide.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2014, we serve global markets including Eastern Europe, North America, South America, and Europe with a team of 301-500 professionals.
How do we guarantee quality?
Pre-production samples and final inspection before shipment ensure consistent product quality.
What products do we offer?
PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.
Why choose us?
Founded in 2004, YUSH Electronic Technology brings extensive experience in PCB separator and electronic equipment machinery with advanced production facilities.
What services do we provide?
Multiple delivery terms (FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF), various payment methods (T/T, L/C, Credit Card, PayPal, Western Union), and multilingual support in English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, and Hindi.
