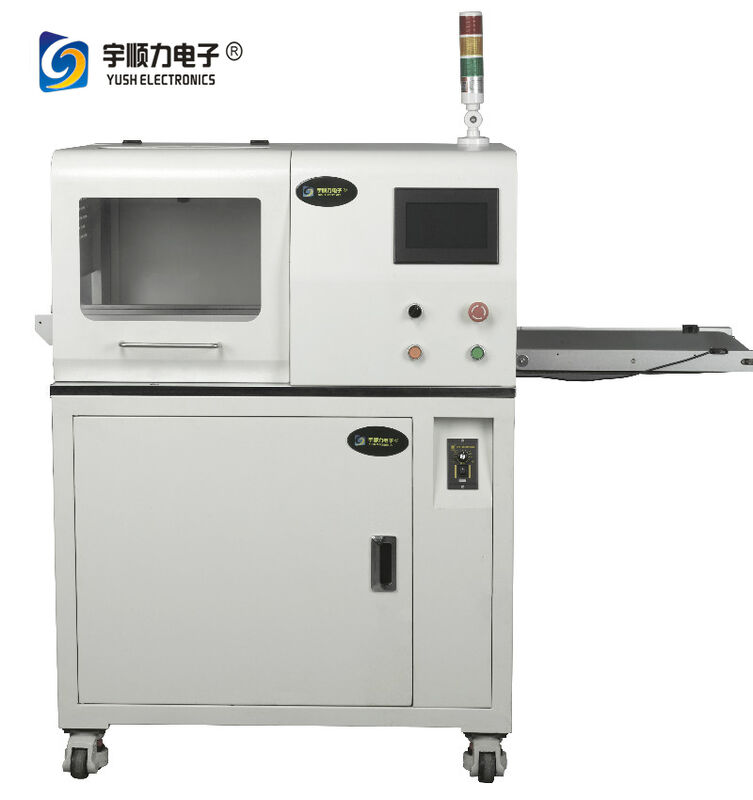

High Speed Stable Quality Fully Automatic PCB Cutting Machine for PCB

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $10,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fully automatic PCB depaneling machine, high speed PCB cutting machine, stable quality PCB depaneling machine


Weight:	300 Kg	Power:	10 KW
Voltage:	220V/110V	Model:	YSV-3A
Dimensions:	L1020 * W650 * H600 MM	Max Board Length:	350MM
Depaneling Width:	50 ~ 230mm	Depaneling Thickness:	0.3 ~ 3.5MM
Component Height Limit:	35 MM (upper), 20 MM (lower)	Operating Voltage:	AC 110 ~ 220V 50/60HZ
Working Pressure:	0.6-0.8MP	Blade Material:	Imported High-speed Steel
Safety Device:	Electric Eye Safety Device	Core Components:	PLC, Gearbox, Motor, Pump
Cutting Method:	Round Knife, Straight Knife

Weight:	300 Kg
Power:	10 KW
Voltage:	220V/110V
Model:	YSV-3A
Dimensions:	L1020 * W650 * H600 MM
Max Board Length:	350MM
Depaneling Width:	50 ~ 230mm
Depaneling Thickness:	0.3 ~ 3.5MM
Component Height Limit:	35 MM (upper), 20 MM (lower)
Operating Voltage:	AC 110 ~ 220V 50/60HZ
Working Pressure:	0.6-0.8MP
Blade Material:	Imported High-speed Steel
Safety Device:	Electric Eye Safety Device
Core Components:	PLC, Gearbox, Motor, Pump
Cutting Method:	Round Knife, Straight Knife

High Speed Stable Quality Fully Automatic PCB Cutting Machine for PCB

Product Overview

This automatic tool depaneling machine is engineered for precision separation of various PCB puzzle boards, with exceptional performance on double-sided circuit boards with mounted components.

Key Features

PLC human-machine interface with microcomputer-controlled pneumatic braking system for precise cutting cycles and stroke control
Automatic PCB board feeding with microcomputer yield counting for production monitoring
Integrated conveyor belt system delivers separated boards directly to testing/assembly lines
Stationary PCB board during depaneling with rotating round knives and vertical straight knives to prevent component damage
Electric eye safety protection system for secure operation

Technical Specifications

Parameter	Specification
Device Name	Full Automatic PCB Depaneling Machine
Model	YSV-3A
User Interface	PLC Human-Machine Interface
Maximum Board Length	350mm
Depaneling Width	50-230mm
Board Thickness Range	0.3-3.5mm
Component Height Limits	35mm (top), 20mm (bottom)
Operating Voltage	AC 110-220V 50/60Hz
Working Pressure	0.6-0.8MPa
Blade Material	Imported High-Speed Steel
Appearance	White Paint (custom colors available)
Dimensions	1020×650×600mm (L×W×H)
Safety Devices	Electric Eye Protection System
Weight	86kg

Manufacturer Information

YUSH Electronic Technology Co., Ltd., founded in 2004 and located in Jiangsu, China, specializes in professional PCB separator and depaneling equipment manufacturing. With advanced production facilities and an experienced engineering team (half with over 10 years industry expertise), the company has established itself as a leading PCB separation equipment production base in China.

Since 2004, YUSH has focused on developing high-quality, safe, and innovative PCB depaneling solutions. The product range includes manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types, serving customers worldwide with reliable performance and competitive pricing.
