Printed Circuit Board Nibbler Machine

Name: Printed Circuit Board Nibbler Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSV-LT
Price: 100.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Model Number: YSV-LT

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $1,200 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling nibbler machine, printed circuit board cutter, PCB nibbler with warranty


Weight:	5.7 Kg	Power:	10 KW
Voltage:	220V, 110V	Size:	280x105x185mm
Action Stroke Times:	12 Times/min	Working Air Pressure:	0.50-0.70 Mpa
Slide Stroke:	2 Mm	Core Components:	PLC, Gearbox, Motor, Pump
Blade Type:	T Or L Type	Blade Customization:	Yes
Blade Replacement:	Convenient	PCB Damage:	No
Operation Type:	Pneumatic Control	PCB Compatibility:	Various Connection Points
Waste Collection:	Inside Machine

Weight:	5.7 Kg
Power:	10 KW
Voltage:	220V, 110V
Size:	280x105x185mm
Action Stroke Times:	12 Times/min
Working Air Pressure:	0.50-0.70 Mpa
Slide Stroke:	2 Mm
Core Components:	PLC, Gearbox, Motor, Pump
Blade Type:	T Or L Type
Blade Customization:	Yes
Blade Replacement:	Convenient
PCB Damage:	No
Operation Type:	Pneumatic Control
PCB Compatibility:	Various Connection Points
Waste Collection:	Inside Machine

Printed Circuit Board Nibbler Machine

Printed Circuit Board Nibbler Machine - PCB Singulation Custom Made

Professional pneumatic PCB nibbler machine designed for precise singulation of printed circuit boards with custom blade configurations.

Action Stroke Times	12 times / min
Working Dry Air Pressure	0.50-0.70 Mpa
Slide Stroke	2 mm
Machine Weight	2 kg
Machine Size	280x105x185mm

Technical Specifications

All pneumatic control system for easy operation
Suitable for slitting various PCB connection points

Key Features

Complete pneumatic control for simplified operation
Versatile application for various PCB connection points
Hook blade design with customizable blade shapes
Easy hook blade replacement system
Compatible with "T" type or "L" type blades
Compact size that protects PCB components and substrate

Safe Operation Process

The PCB is positioned with its milled groove over the blade and placed onto the matrix. The off-cut is pulled under the blade. When the foot switch is activated, the off-cut is punched out and waste material is collected inside the machine.

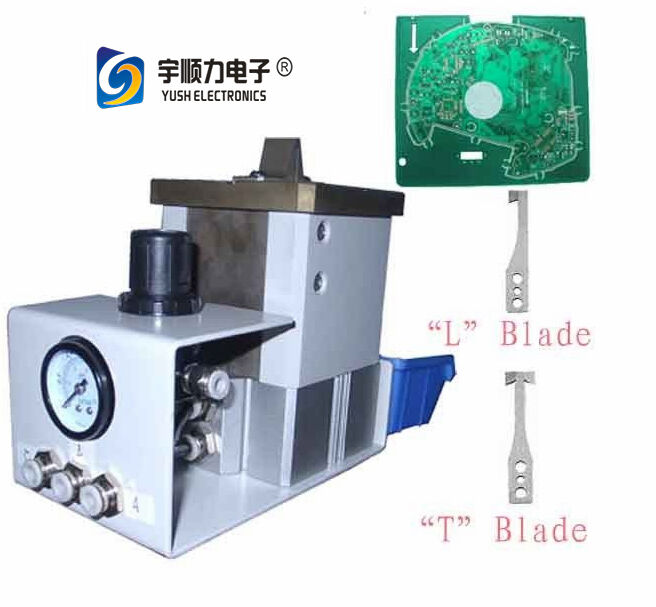

Blade Options

"T"-Blade: Enables punching out off-cuts on both right and left sides of the blade without requiring PCB rotation.

"L"-Blade: Ideal for applications with small distances between off-cuts.

pcb lead cutter v groove cutting machine v cut machine
