Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Manual PCB depaneling machine, V Cut PCBA separator, SMT equipment with warranty


Weight:	65 Kg	Power:	10 KW
Voltage:	110/220 V	Cutting Speed:	Manual
Cutting Thickness:	0.6-3.5mm	Max Cutting Length:	600mm
Size:	787x400x436 Mm	PCB Cutting Length:	460/700 Mm
Blade Material:	SKH-9	Mold Material:	SKH-11 Steel
Core Components:	PLC, Gearbox, Motor, Pump	Blade Life (metal):	0.5 Year
Blade Life (PCB):	1 Year	Min Speed:	100/200/300/500mm/s
Model:	YSV-1M

Weight:	65 Kg
Power:	10 KW
Voltage:	110/220 V
Cutting Speed:	Manual
Cutting Thickness:	0.6-3.5mm
Max Cutting Length:	600mm
Size:	787x400x436 Mm
PCB Cutting Length:	460/700 Mm
Blade Material:	SKH-9
Mold Material:	SKH-11 Steel
Core Components:	PLC, Gearbox, Motor, Pump
Blade Life (metal):	0.5 Year
Blade Life (PCB):	1 Year
Min Speed:	100/200/300/500mm/s
Model:	YSV-1M

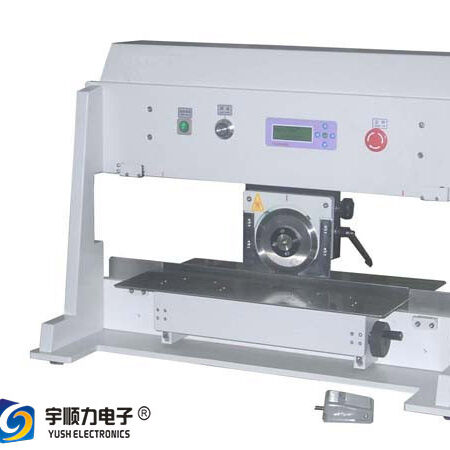

Manual Circular V Cut PCBA Separator Machine -YSV-1M Smt Equipment

Manual Circular V Cut PCBA Separator Machine - YSV-1M

YSV-1M Economical Type Features

PCB Protection
Calibration Blade Setting
All Speed Control By Human
More Accurate Cutting

Technical Specifications

Model	YSV-1M
PCB Cutting Length (mm)	460/700
Cutting Speed (mm/s)	Manual
Cutting Thickness (mm)	0.6~3.5
Size (mm)	400780480 / 1220560650
Weight (Kg)	55 / 80
Blade working life for metal (Year)	0.5
Blade working life for PCB (Year)	1
Guarantee (Year)	1
Delivery (Day)	1

Application Range

For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board), LED applications.

Construction Quality

Mold made of SKH-11 Steel, Blade is SKH-9 (From Japan). Dedicated to high strength cutting with excellent toughness, able to cut metal board.

Technical Characteristics

Structural precision with even load distribution to eliminate internal stress
Safe and easy to operate
Designed for electronics, cell phones, computers, PCB, and FPC applications

Key Features

Round knife with manual cutting against lower linear knife for reduced stress
Separate pre-scored PCB assembly without stress on PCB or components
One touch programming of cut length with digital display
Separating speed adjusted by rotary knob
Handle intermittent scoring or cut-outs
Precise cutting of boards with projected components
Large stainless steel platform prevents board wobble with adjustable height and angle
Optional PCB conveyor belt to remove finished boards
Adjustable clearance between circular and linear blades for different groove depths

Manufacturer Advantages

Original PCB depanelizer manufacturers with competitive pricing
Same-day technical support services
30-minute response time for customer complaints
Panel experts providing professional PCB solutions
Reliable machine manufacturer with 15+ experts, each with over 6 years of experience
