Motorized Pneumatic PCB Cutting Machine PCB Lead Cutter for Copper Board

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $600-1,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                motorized PCB depaneling machine, pneumatic PCB lead cutter, copper board cutting machine


Weight:	25Kg	Power:	60W
Voltage:	110/220V	Model:	YSV-2M
Speed:	0~400mm/s	Size:	420X 280 X 400mm
Max Length:	Unlimited	Thickness Range:	1.0-3.5mm
Blade Amount:	2 Circular Blades	Blade Mode:	Motor-driven
Workbench Option:	Customizable Length	Core Components:	PLC, Gearbox, Motor, Pump
Operating Modes:	Manual, Semi-automatic, Fully-automatic	Blade Regrinding:	Supported
Custom Cutter Shape:	Available

Weight:	25Kg
Power:	60W
Voltage:	110/220V
Model:	YSV-2M
Speed:	0~400mm/s
Size:	420X 280 X 400mm
Max Length:	Unlimited
Thickness Range:	1.0-3.5mm
Blade Amount:	2 Circular Blades
Blade Mode:	Motor-driven
Workbench Option:	Customizable Length
Core Components:	PLC, Gearbox, Motor, Pump
Operating Modes:	Manual, Semi-automatic, Fully-automatic
Blade Regrinding:	Supported
Custom Cutter Shape:	Available

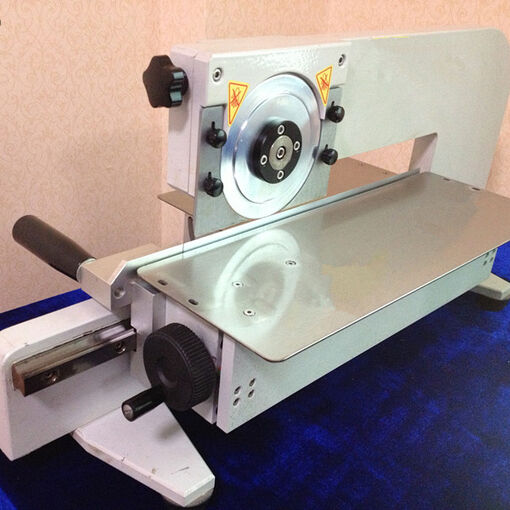

Motorized Pneumatic PCB Cutting Machine PCB Lead Cutter for Copper Board

High-performance V-CUT PCB depaneling machine with web guide system, featuring up and down dual circular blades for efficient printed circuit board separation.

v-cut pcb depaneling machine web guide

Model: YSV-2M

Technical Specifications

Maximum Length	Unlimited
Material Thickness	1.0-3.5mm
Blade Configuration	Up and down 2 circular blades
Operation Mode	Down circular blade with motor-driven
Cutting Speed	0-400mm/s
Voltage & Power	110/220V 60W
Machine Dimensions	420 × 280 × 400mm
Weight	25Kg
Workbench	Optional (customizable length according to your board requirements)

Key Features & Benefits

Minimizes shearing stress to prevent micro-cracks in solder joints
Precision guiding device for accurate V-CUT alignment on PCBs
Ball bearing slideways for easy adjustment of PCB edge guides
Ball bearing slideways for simple tabletop height setting
Three operating modes: Manual (handwheel), Semi-automatic (start button), or Fully-automatic (continuous running)
Re-grindable cutters for extended tool life
Customizable cutter shapes available for specialized applications

Additional Advantages

This PCB depaneling machine offers exceptional value with its economical pricing, safety-focused design, and user-friendly operation. The re-grindable blades provide long-term cost efficiency while maintaining cutting precision.
