Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic PCB loader machine, touch display magazine loader, multiple speed depaneling machine


Weight:	145 Kg	Power:	10 KW
Voltage:	220V, 110V	Air Pressure:	4-6bar
Air Consumption:	Max 10L/min	Transport Height:	900±20mm (customizable)
PCB Loading Time:	Approx. 6 Seconds	Magazine Change Time:	Approx. 25 Seconds
Power Consumption:	Max 300VA	PCB Thickness:	Min 0.4mm
Magazine Number:	1pcs (customizable)	Step Pitch Select:	1-4 (10mm Step Pitches)
Transport Direction:	L->R Or R->L	Core Components:	PLC, Gearbox, Motor, Pump
Control System:	PLC

Weight:	145 Kg
Power:	10 KW
Voltage:	220V, 110V
Air Pressure:	4-6bar
Air Consumption:	Max 10L/min
Transport Height:	900±20mm (customizable)
PCB Loading Time:	Approx. 6 Seconds
Magazine Change Time:	Approx. 25 Seconds
Power Consumption:	Max 300VA
PCB Thickness:	Min 0.4mm
Magazine Number:	1pcs (customizable)
Step Pitch Select:	1-4 (10mm Step Pitches)
Transport Direction:	L->R Or R->L
Core Components:	PLC, Gearbox, Motor, Pump
Control System:	PLC

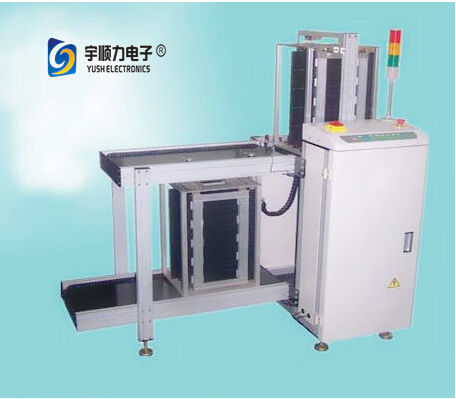

Multiple Speed Automatic Pcb Loader Machine , Touch Display Automatic Magazine Loader

Multiple Speed Automatic PCB Loader Machine with Touch Display

This advanced automatic magazine loader is designed for collecting PCBs into magazines at the end of SMT production lines, featuring multiple speed options and touch display controls.

Key Features

Solid and stable machine design
PLC control system for reliable operation
Light touch LED membrane switch or touch screen control panel options
Top and bottom pneumatic clamps to secure magazine rack
Pressure regulated pushers to prevent board damage
Self diagnostic error code display
SMEMA compatible for seamless integration

Technical Parameters

Description	This equipment is used to collect PCBs into magazine at the end of SMT production line
PCB loading time	Approx. 6 seconds
Magazine change over time	Approx. 25 seconds
Power source & consumption	100-230VAC (customized), 1ph, max 300VA
Air pressure & consumption	4-6bar, max 10L/min
Transport height (mm)	900±30 (or customized)
Transport direction	L→R or R→L
PCB thickness (mm)	min 0.4mm
Magazine number	Transport up: 1pcs, Transport down: 1pcs (or customized)
Step pitch select	1-4 (10mm step pitches)
