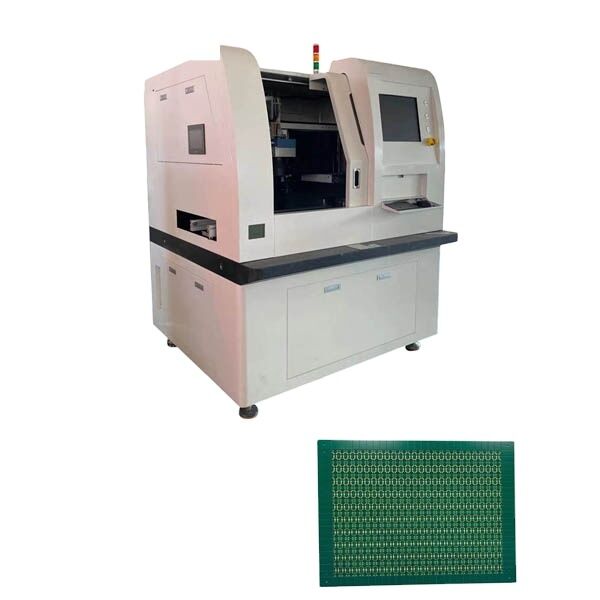

355nm 10W /15W High-precision CCD FPC/PCB UV Laser Cutting Machine

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $50,000-100,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                355nm UV laser cutting machine, 10W PCB depaneling machine, high-precision FPC laser cutter


Weight:	1600 Kg	Power:	10 KW
Voltage:	220V / 110V	Laser Type:	10W UV Laser
Laser Wavelength:	355nm	Max Power:	10W /15W
Repetition Frequency:	1-250kHz	CCD Precision:	0.005mm
Max Working Range:	450mm*430mm	Beam Spot Size:	0.015mm ± 0.003mm
Dimensions:	1500mmX1800mmX1660mm	Worktable Precision:	±0.003mm
Worktable Repetition:	±0.002mm	Table Reach Range:	500mm*500mm
Core Components:	PLC, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump

Weight:	1600 Kg
Power:	10 KW
Voltage:	220V / 110V
Laser Type:	10W UV Laser
Laser Wavelength:	355nm
Max Power:	10W /15W
Repetition Frequency:	1-250kHz
CCD Precision:	0.005mm
Max Working Range:	450mm*430mm
Beam Spot Size:	0.015mm ± 0.003mm
Dimensions:	1500mmX1800mmX1660mm
Worktable Precision:	±0.003mm
Worktable Repetition:	±0.002mm
Table Reach Range:	500mm*500mm
Core Components:	PLC, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump

355nm 10W /15W High-precision CCD FPC/PCB UV Laser Cutting Machine

With perfect CAM interface, this machine supports mainstream drilling and milling file formats. The user-friendly interface features sealed optical paths and stable, reliable integration with compact structure. The modular electronic control system ensures easy maintenance.

Ideal for processing soft and hard combination boards (R-F PCBA), including flexible boards and rigid-flex combinations, this equipment offers enhanced adaptability and cost-effectiveness.

FPC UV Laser Cutting Machine Applications

Cutting various flexible circuit board materials and cover films with clean, carbonization-free results
High-quality, high-speed cutting of rigid materials up to 1mm thickness
Minimal burrs due to UV light decomposition and vaporization process
Small thermal effect with precise, smooth cutting edges and steep sidewalls
Capable of cutting various substrate materials including silicon, ceramics, and glass
Precision etching forming of various functional films

YSV-7A Product Features

Neat and smooth edges after cutting
No burrs, dust, or particle residue
High precision for small arcs and fine cutting applications
Effectively reduces molding failure rates
Single-pass cutting of composite workpieces with multiple materials and thickness combinations
Automatic laser head height adjustment for double-sided surface-mounted FPC handling

Non-contact processing eliminates mechanical stress and deformation. The linear motor platform offers high speed, precision, low wear, easy maintenance, and reduced maintenance costs.

Technical Specifications

Specification/Model	YSV-7A
Laser Head	SP (USA)
Laser Type	10W UV Laser
Laser Wavelength	355nm
Max Power	10W / 15W
Repetition Frequency	1-250kHz
Worktable Location Precision	±0.003mm
Worktable Repetition Precision	±0.002mm
Table Reach Range	500mm × 500mm
CCD Location Precision	0.005mm
Max Working Range	450mm × 430mm
Beam Spot Size	0.015mm ± 0.003mm
Dimensions (L×W×H)	1500mm × 1800mm × 1660mm
Weight	1800kg

Laser Source

Features imported US UV shock light with excellent optical performance, long lifespan, simple structure, and easy operation. This proven brand has been in use for over 10 years.

Galvanometer System

Utilizes world's most advanced galvanometer system with feedback and automatic calibration equipment to ensure processing efficiency and accuracy.

Taishan Green Marble Platform

High-quality "Taishan green" stone processed mechanically and hand-finished for precision. Features black luster, fine structure, uniform texture, excellent stability, high strength, and hardness while maintaining precision under heavy loads. Rust-free, acid-resistant, and abrasion-resistant.

Marble Platform Features

Accuracy class: "000" level, flatness 2μm
Compressive strength: 245-254 N/mm²
Elastic modulus: 1.27-1.47 N/mm² (higher than cast iron)
Linear expansion coefficient: 4.61 × 10⁻⁶/℃
Inner damping coefficient: 15× larger than steel with excellent shock absorption
Shore strength: HS70+ with 5-10× higher wear resistance than cast iron

CCD System

High-speed image acquisition system with high-precision image positioning and matching ensures exceptional accuracy.

Working Platform

THK (China) investment featuring precision linear motion guides, ball splines, ball screws, cross roller collars, and actuators from the industry's largest supplier.

FPC UV Laser Cutting Results
