Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine component, PCB cutting machine with warranty, lead cutting machine for PCB


Weight:	55 Kg	Power:	10 KW
Voltage:	110/220 V	Min Speed:	100/200/300/500 Mm/s
Poles Number:	1	Type:	Air
Size:	780 X 460 X 560 Mm	Thickness:	0.6-3.5 Mm
Model:	YSV-1A	Length:	460 Or 600 Mm
Speed:	100/200/300/500 Mm/s	Power Supply:	110/220 V
Machine Size:	770510450 Mm	Machine Weight:	55 Kg
Core Components:	Motor

Weight:	55 Kg
Power:	10 KW
Voltage:	110/220 V
Min Speed:	100/200/300/500 Mm/s
Poles Number:	1
Type:	Air
Size:	780 X 460 X 560 Mm
Thickness:	0.6-3.5 Mm
Model:	YSV-1A
Length:	460 Or 600 Mm
Speed:	100/200/300/500 Mm/s
Power Supply:	110/220 V
Machine Size:	770510450 Mm
Machine Weight:	55 Kg
Core Components:	Motor

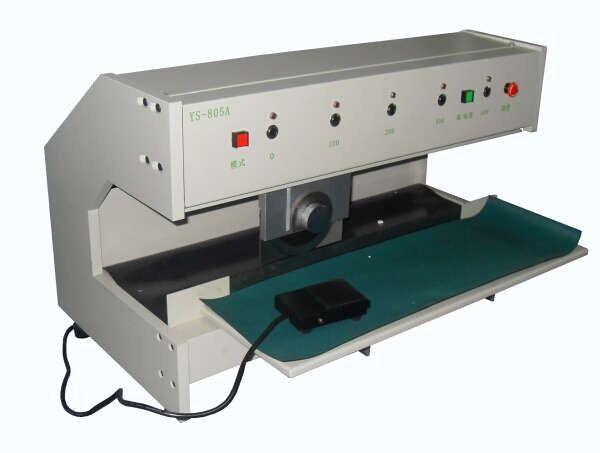

High Quality PCB Cutting Machine Component Lead Cutting Machine

Technical Specifications

Model	YSV-1A
Length (mm)	460 or 600
Speed (mm/s)	100/200/300/500
Thickness (mm)	0.6-3.5
Power Supply (V)	110/220
Size (mm)	770×510×450
Weight	55kg

YSV-1A Key Features

Separate pre-scored PCB assembly without stress on either PCB or component
One touch programming of cut length with digital display
Separating speed is adjusted by a rotary knob
Handle intermittent scoring or cut-outs
Board with projected component can be cut precisely
Large stainless steel platform on both sides of cutting blade prevents board wobble; table height and angle are adjustable
Optional PCB conveyor belt to remove finished board
Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear
