Pneumatic Pcb Cutting Machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: YuSH

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $10,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Pneumatic PCB depaneling machine, PCB cutting machine with warranty, Pneumatic PCB cutter


Voltage:	220 V/ 110V	Power:	10 W
Weight:	180 Kg	Dimension:	720mm(L)300mm(W)440mm(H)
Maximum Board Length:	300mm / 400mm	Thickness Range:	0.50~3.5mm
Working Air Pressure:	0.4--0.6Mpa	Cutting Stress:	Below 180uE
Cutting Stroke:	Below 1MM	Cutting Rate:	1 Separation Per Second
V-groove Edge Clearance:	0.3mm	Component Height Limit:	60mm
Blade Warranty:	200000 Cuts	Air Compressor Requirement:	4-5KG
Core Components:	PLC, Motor

Voltage:	220 V/ 110V
Power:	10 W
Weight:	180 Kg
Dimension:	720mm(L)300mm(W)440mm(H)
Maximum Board Length:	300mm / 400mm
Thickness Range:	0.50~3.5mm
Working Air Pressure:	0.4--0.6Mpa
Cutting Stress:	Below 180uE
Cutting Stroke:	Below 1MM
Cutting Rate:	1 Separation Per Second
V-groove Edge Clearance:	0.3mm
Component Height Limit:	60mm
Blade Warranty:	200000 Cuts
Air Compressor Requirement:	4-5KG
Core Components:	PLC, Motor

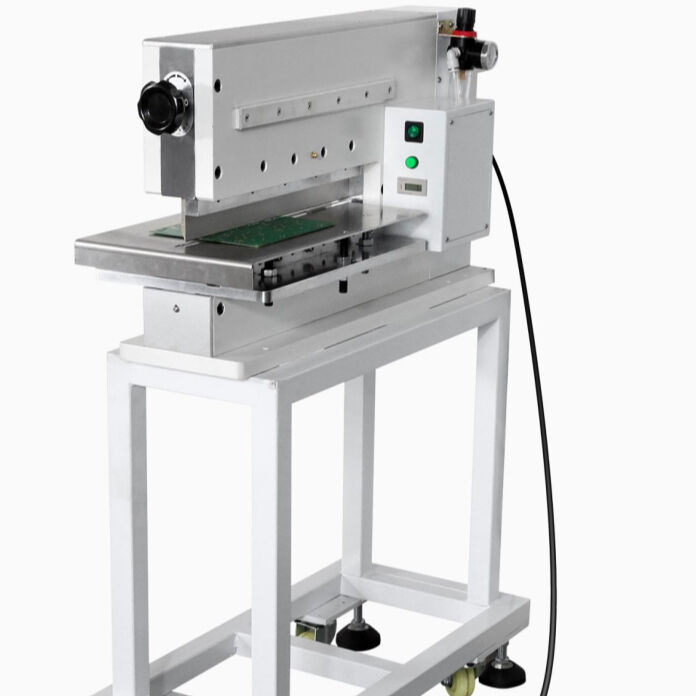

Pneumatic Pcb Cutting Machine

Pneumatic PCB Cutting Machine - YSVC-2

Using advanced gas-electric lightweight design with built-in SERISOR technology, this machine completes PCB cutting in a single operation without shear stress. Specifically engineered for precision SMD or sheet cutting, it eliminates bow waves and micro cracks common with circular knife cutting methods.

Key Advantages

Double straight knife cutting system - ideal for separating precise SMD sheets and aluminum boards
Guillotine-type cutting suitable for various PCB thicknesses with stroke below 2mm for operator safety
Reduces internal stress during cutting to below 180μE, preventing splits and protecting precision components
Capable of cutting boards with 0.3mm width between V-groove edge and components, up to 60mm height
Cutting tools can be repeatedly sharpened after wear for extended service life

Technical Specifications

Maximum Board Length	300mm / 400mm
Package Size	720mm(L) × 300mm(W) × 440mm(H)
Thickness Range	0.50 - 3.5mm
Power Supply	220VAC / 110V
Working Air Pressure	0.4 - 0.6Mpa
Weight	189 kg
Application Scope	All V-CUT SMD PCB Boards

Operational Characteristics

High-speed segmentation at 1 separation per second controlled by pedal pneumatic switch
Passive start cutting knife group ensures safe operation with minimal cutting stress
Non-roller cutting system eliminates dust, motor drive, and carbon pollution
Non-friction cutting method prevents residual metal contamination
Blade warranty: 200,000 cycles with no electrical components to replace
Proprietary cutting tool design eliminates import dependencies
Operates with standard 4-5KG air compressor for flexible placement
