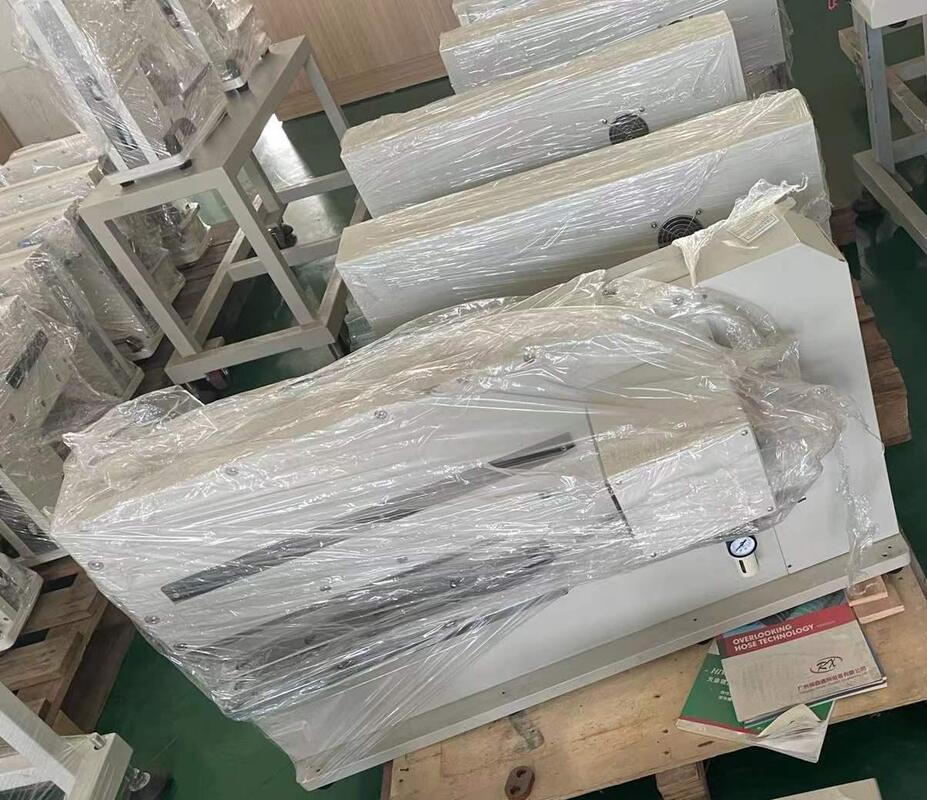

FR4 Circuit Board Cutting Machine Assembly, PCB Board Cuttingg Machine in China

Name: FR4 Circuit Board Cutting Machine Assembly, PCB Board Cuttingg Machine in China
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-2
Price: 401.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YSVC-2

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $3,800 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                FR4 PCB cutting machine assembly, PCB depaneling machine with warranty, China circuit board cutting machine


Weight:	165kg	Max Length:	330mm
Cutting Thickness:	0.3-3.5mm	Voltage:	110V/220V
Working Air Pressure:	0.5-0.7Mpa	Size:	620230400mm
Core Components:	PLC, Motor	Max Component Height:	70mm
Min Component Distance:	0.5mm	Drive Type:	Pneumatic
Control Type:	Electromagnetic Valve	Knife Type:	Straight
Adjustment Mechanism:	Adjusting Knob	Operation Method:	Foot Pedal
Material Compatibility:	FR4 PCB

Weight:	165kg
Max Length:	330mm
Cutting Thickness:	0.3-3.5mm
Voltage:	110V/220V
Working Air Pressure:	0.5-0.7Mpa
Size:	620230400mm
Core Components:	PLC, Motor
Max Component Height:	70mm
Min Component Distance:	0.5mm
Drive Type:	Pneumatic
Control Type:	Electromagnetic Valve
Knife Type:	Straight
Adjustment Mechanism:	Adjusting Knob
Operation Method:	Foot Pedal
Material Compatibility:	FR4 PCB

FR4 Circuit Board Cutting Machine Assembly, PCB Board Cuttingg Machine in China

FR4 Circuit Board Cutting Machine Assembly

YSVC-330 and YSVC-220 models available for precise PCB board depaneling

Machine Overview

Our FR4 circuit board depaneling machine offers easy maintenance and operation, capable of safely shearing thin PCBs down to 0.3mm thickness. The pneumatic drive unit ensures vibration-free shearing process for optimal results.

Technical Specifications

Maximum Length	330mm (Custom sizes available)
Cutting Thickness	0.3-3.5mm
Voltage and Power	110V/220V
Working Air Pressure	0.5-0.7Mpa
Machine Size	620×230×400mm
Weight	165kg

Key Features

Pneumatically driven with electromagnetic valve control
Vibration-free shearing process due to pneumatic drive unit
Safe shearing of PCBs with sensitive SMD components and capacitors
Foot pedal operation for convenient shearing control
Accommodates components up to 70mm near V-groove
Minimum 0.5mm clearance between V-groove and electronic components
Easy gap adjustment via front-mounted knob

All-Purpose Straight Knife PCB Separator

This pneumatically driven, electrically controlled straight knife separator is designed to carefully separate pre-scored panel boards without bending or tension stress. The specialized knife design safely separates boards with high components placed close to edges, using wedge-shaped knives to cut within the groove for stress-free separation of boards under 1mm thickness.

Advanced Performance Features

Vibration-free operation prevents damage to precision PCBs
Easy board insertion gap adjustment via top-mounted knob with low friction design
Adjustable lower knife height with separate front and rear adjustment
No thin plates required after knife re-sharpening
Simple operation and maintenance suitable for unskilled personnel
