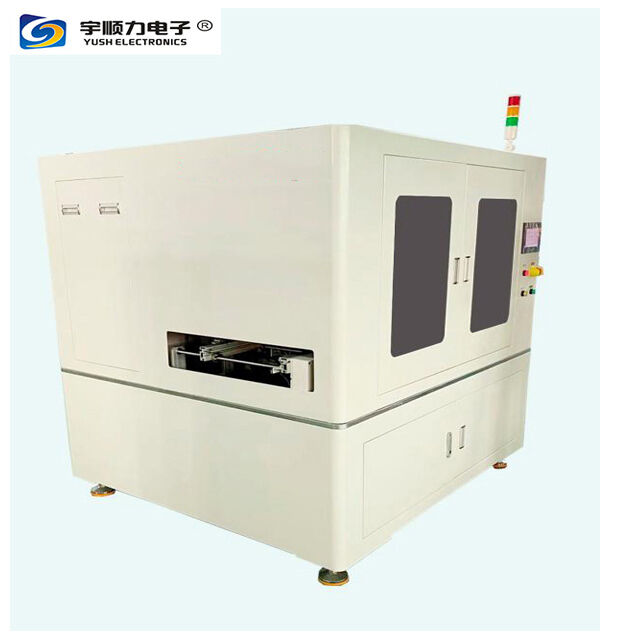

Name: Fully Automatic Rotary V Groove Bidirectional Cutting Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSV-8A
Price: 70 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YSV-8A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $70,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fully automatic PCB depaneling machine, rotary V groove cutting machine, bidirectional PCB depaneling machine


Weight:	700Kg	Size:	130014501650MM
Working Pressure:	0.4-0.7MP	Feeding Mode:	Online Transport Guide
Moving Speed:	1000MM/S Adjustable	Sub-board Accuracy:	0.05mm
Cutting Speed:	300mm/s	Plate Thickness:	0.6-2.0mm
Maximum Size:	350mm*350mm	Machine Weight:	1100kg
Machine Size:	1300120017000mm	Power:	2000KW, 220v
Working Air Pressure:	4-6Mpa	Core Components:	PLC, Bearing, Motor
Adjustment Type:	Numerically Controlled

Weight:	700Kg
Size:	130014501650MM
Working Pressure:	0.4-0.7MP
Feeding Mode:	Online Transport Guide
Moving Speed:	1000MM/S Adjustable
Sub-board Accuracy:	0.05mm
Cutting Speed:	300mm/s
Plate Thickness:	0.6-2.0mm
Maximum Size:	350mm*350mm
Machine Weight:	1100kg
Machine Size:	1300120017000mm
Power:	2000KW, 220v
Working Air Pressure:	4-6Mpa
Core Components:	PLC, Bearing, Motor
Adjustment Type:	Numerically Controlled

Fully Automatic Rotary V Groove Bidirectional Cutting Machine

Machine Features

Combines base plate splitter machine with upper plate machine and track system
Independent automatic splitter operation with online division capability
High-speed, labor-saving operation with automatic belt line grabbing after splitting
Optional swinging machine for automatic material box placement
Numerically controlled adjustment eliminates manual knife calibration

Technical Specifications

Sub-board Accuracy: 0.05mm
Cutting Speed: 300mm/s
Material Thickness Range: 0.6-2.0mm
Maximum Board Size: 350mm × 350mm
Machine Weight: 1100kg
Machine Dimensions: 1300 × 1200 × 1700mm
Power Requirements: 2000W, 220V
Working Air Pressure: 4-6Mpa

Comprehensive After-Sales Service

Full equipment warranty for one year with complimentary maintenance and replacement for quality issues
Professional technical support from company-trained senior personnel
Rapid response service: 30-minute reply and 2-hour on-site support in Pearl River Delta region
24-hour nationwide support with 24-hour maximum response time
Complete installation and debugging services by engineering technicians
On-site training and technical guidance for up to three days (extendable as needed)
Comprehensive operator and technician training without reservation
Assistance with operation and debugging tests for customer technical personnel
