Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                LED aluminum board cutting machine, aluminum LED light bar cutter, PCB depaneling machine with warranty


Weight:	89 Kg	Machine Dimension:	960560750 Mm
Blade Material:	SHK-9 High Speed Steel	Cutting Speed:	0-1000 Mm/s
Cutting Thickness:	0.8-3.5 Mm	Voltage:	220VAC / 110VAC
Cutting Span:	0-460mm/pcb	Blade Speed:	500mm/s & 300mm/s
Platform Adjustment:	0 To 50mm	Model No:	YSV-1A
Core Components:	Motor	Machine Type:	PCB Depaneling Machine
Blade Type:	SKH-9(From Japan)	Cutting Strength:	High Strength Cutting
Blade Toughness:	Excellent Toughness

Weight:	89 Kg
Machine Dimension:	960560750 Mm
Blade Material:	SHK-9 High Speed Steel
Cutting Speed:	0-1000 Mm/s
Cutting Thickness:	0.8-3.5 Mm
Voltage:	220VAC / 110VAC
Cutting Span:	0-460mm/pcb
Blade Speed:	500mm/s & 300mm/s
Platform Adjustment:	0 To 50mm
Model No:	YSV-1A
Core Components:	Motor
Machine Type:	PCB Depaneling Machine
Blade Type:	SKH-9(From Japan)
Cutting Strength:	High Strength Cutting
Blade Toughness:	Excellent Toughness

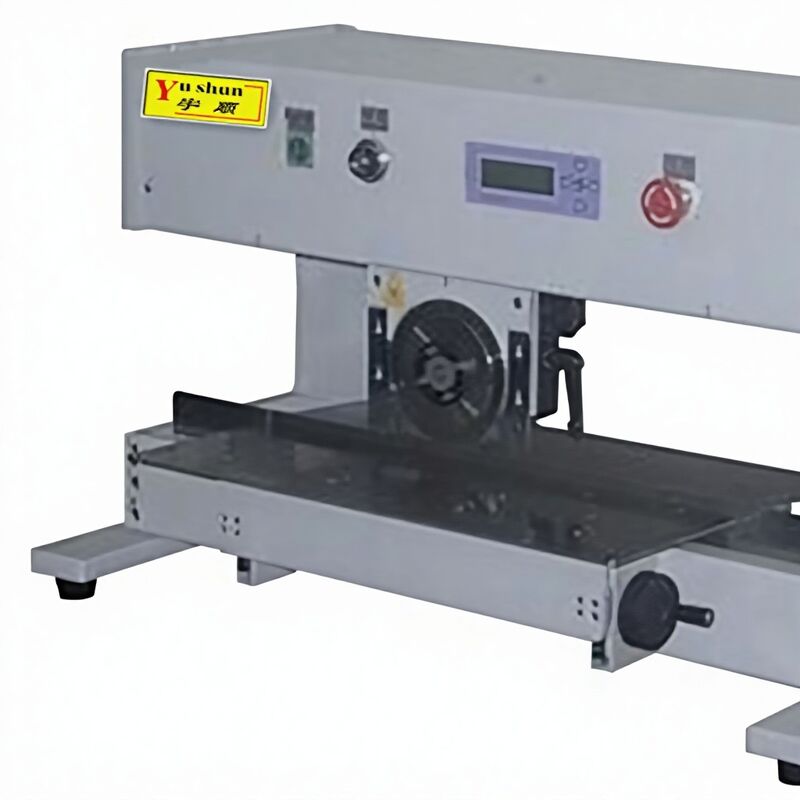

High Efficiency LED Aluminum Board Cutting Machine Aluminum LED Light bar Cutting Machine

High Efficiency LED Aluminum Board Cutting Machine

Professional aluminum LED light bar cutting machine designed for precision cutting of various board materials with exceptional efficiency and accuracy.

Technical Specifications

Model No	YSV-1A
Machine Dimension	960×560×750 mm
Transfer Belt	None
Material of Blade	SHK-9 high speed steel
Cutting Speed	0-1000 mm/s
Cutting Thickness	0.8-3.5 mm
Voltage	220VAC / 110VAC
Weight	89kg

Key Features

One cutting span: 0-460mm per PCB
Dual cutting blade speeds: 500mm/s & 300mm/s
Operate platform adjusting range: 0 to 50mm
Flexible setting design with micro-adjustment for upper and lower blade positioning
Free setting stop point based on PCB length requirements
Ideal for electronics, cell phones, computers, PCB, FPC, and LED applications
Mold made of SKH-11 Steel with SKH-9 blade from Japan for high-strength cutting
Excellent toughness capable of cutting metal boards

Applications

Aluminum base board, Copper substrate, V-CUT Line FR4 board, Glass fiber board, V-CUT LED light bar panel, V-CUT PCB circuit board

Maintenance Guidelines

Disconnect power and clean machine after completing work
Carefully protect upper and lower blades during maintenance
Move blades and apply machine oil for protection
Regularly check and tighten screws as needed

Delivery Options

Available by air, sea, Fedex, DHL, or UPS through our forwarder partners or your preferred carrier. Packed securely in plywood cases with a packing fee of USD 50 per PCB.
