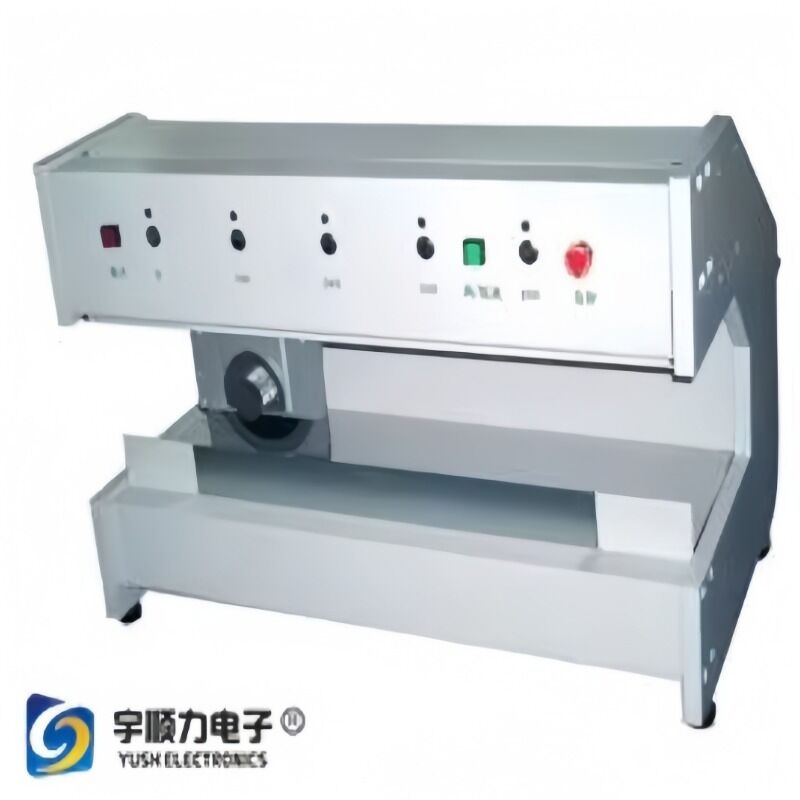

High Quality PCB Depaneling Machine with Pedal for V-CUT Boards

Product Details

Place of Origin: Guangdong, China

Brand Name: YuSH

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $3,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine with pedal, V-CUT PCB depaneling machine, depaneling machine for V-CUT boards


Voltage:	220 V/ 110V	Power:	40 W
Weight:	55 Kg	Dimensions:	770mm(L)510mm(W)450mm(H)
Cutting Speed:	100/200/300/500 Mm/s	Cutting Thickness:	0.6-3.5 Mm
Power Supply:	110/220 V	Maximum Board Length:	460mm / 600mm
Working Air Pressure:	0.4-0.6 Mpa	Motor Type:	Motor
Blade Clearance:	Adjustable	Platform Material:	Stainless Steel
Controller Type:	Siemens PLC	Table Adjustability:	Height And Angle Adjustable
Cutting Principle:	Data Conversion

Voltage:	220 V/ 110V
Power:	40 W
Weight:	55 Kg
Dimensions:	770mm(L)510mm(W)450mm(H)
Cutting Speed:	100/200/300/500 Mm/s
Cutting Thickness:	0.6-3.5 Mm
Power Supply:	110/220 V
Maximum Board Length:	460mm / 600mm
Working Air Pressure:	0.4-0.6 Mpa
Motor Type:	Motor
Blade Clearance:	Adjustable
Platform Material:	Stainless Steel
Controller Type:	Siemens PLC
Table Adjustability:	Height And Angle Adjustable
Cutting Principle:	Data Conversion

High Quality PCB Depaneling Machine with Pedal for V-CUT Boards

Professional PCB depaneling router machine designed for stress-free separation of pre-scored V-CUT PCB assemblies.

Model YSV-1A Specifications

Machine Length	460mm or 600mm
Cutting Speed	100/200/300/500 mm/s
Cutting Thickness	0.6-3.5 mm
Power Supply	110/220 V
Dimensions	770 × 510 × 450 mm
Weight	55 kg

Motorized Circular / Linear Blade Depanelizer Features

Separate pre-scored PCB assembly without stress on PCB or components
One-touch programming of cut length with digital display
Separating speed adjusted by rotary knob
Handle intermittent scoring or cut-outs
Precisely cut boards with projected components
Large stainless steel platform prevents board wobble with adjustable table height and angle
Optional PCB conveyor belt to remove finished boards
Adjustable clearance between circular and linear blades for different groove depths

Technical Advantages

Avoid welding spot cracking and decrease physical strength during cutting
PCB remains stable during V-CUTTING for operator safety
Siemens PLC controller for easy operation and high reliability
Cutting principle based on data conversion
Compatible with all types of V-CUT PCB boards

Complete Technical Specifications

Maximum Board Length	460mm / 600mm
Package Size	770mm(L) × 510mm(W) × 450mm(H)
Thickness Range	0.60-3.5mm
Power Supply	220VAC / 110V
Working Air Pressure	0.4-0.6 Mpa
Weight	189 kg
Application Scope	All V-CUT SMD PCB boards

Manufacturer Profile

YUSH Electronic Technology Co., Ltd., founded in 2004 and located in Jiangsu, China, specializes in professional PCB separator and depaneling electronic equipment machinery. With advanced production equipment and an experienced development team, half of whom have over 10 years of experience in the electronic equipment industry, YUSH has become one of China's largest PCB separator production bases.

Quality Assurance

Pre-production sampling before mass production and final inspection before shipment ensure consistent product quality and reliability.

Product Range

PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-CUT machines.
