On-line Circuit Board Cutting Machine

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $50,000-100,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine with warranty, online circuit board cutter, PCB cutting machine for electronics


Weight:	1600 Kg	Power:	3 KW
Voltage:	380 V, 110 V	Machine Size:	100012001533mm
Max PCB Size:	350*350mm	PCB Thickness:	0.4-6mm
Transmission Height:	900±50mm	Transmission Speed:	1500mm/s(max)/adjustable
Cutting Spindle Speed:	60,000rpm/min	Cutting Speed:	1-200mm/s
Cutting Accuracy:	±0.5mm	Repeat Positioning Accuracy:	±0.01mm
Coordinate Moving Speed:	1000mm/s	Air Supply:	5-8kg/cm2
Power Supply:	AC380V±5%, 50/60Hz

Weight:	1600 Kg
Power:	3 KW
Voltage:	380 V, 110 V
Machine Size:	100012001533mm
Max PCB Size:	350*350mm
PCB Thickness:	0.4-6mm
Transmission Height:	900±50mm
Transmission Speed:	1500mm/s(max)/adjustable
Cutting Spindle Speed:	60,000rpm/min
Cutting Speed:	1-200mm/s
Cutting Accuracy:	±0.5mm
Repeat Positioning Accuracy:	±0.01mm
Coordinate Moving Speed:	1000mm/s
Air Supply:	5-8kg/cm2
Power Supply:	AC380V±5%, 50/60Hz

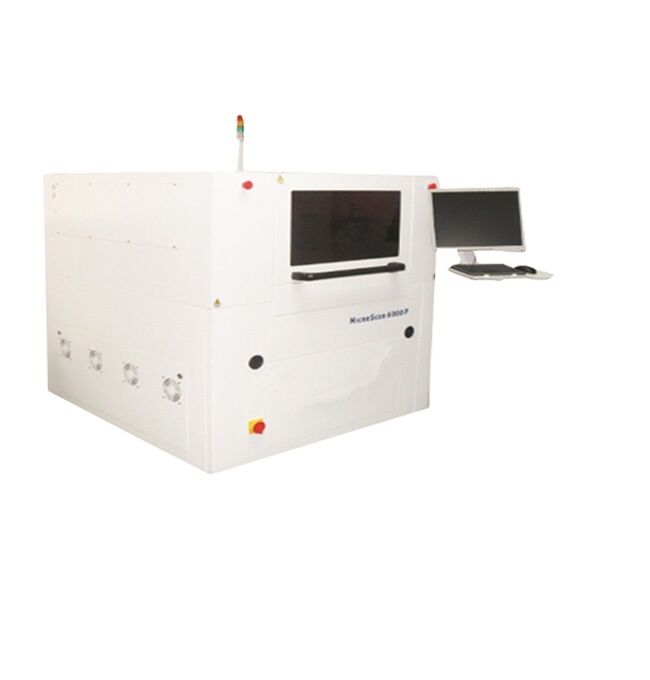

On-line Circuit Board Cutting Machine

Multiple milling knife High Speed PCB Depaneling Machine In Line Router With Linear Guides / BladeYSV-7A

An on-line PCB depaneling machine specially designed to cut PCBA components (panel) into separate parts, featuring rail-mounted structure without jig cutting. Ready for immediate production integration. Equipped with ESD static monitoring, cutting stress feedback, and automatic tool changing, achieving top speeds of 60,000 RPM. The control system, developed from our RM platform, ensures rapid and accurate programming.

Technical Specifications

Model	YSV-7A
Machine Size	100012001533mm
Max PCB Size	350*350mm
PCB Thickness	0.4-6mm
Transmission Height	900±50mm
Transmission Direction	Left → Right
Transmission Speed	1500mm/s (max), adjustable
Feeding Plate Type	Section-type transportation guide rail
Rail Width Adjustment	Automatic
PCB Positioning	Upper and lower guide rail clamping
Picking System	360° rotary clamping system; 2 groups of vacuum suction nozzles maximum, 4 groups of ESD belt transportation/batch panel forwarding units maximum
Cutting Spindle/Speed	Germany KAVO, 60,000 RPM
Cooling Type	Air compression
ESD Monitoring	Yes
Automatic Tool Change	Yes
Cutting Stress Feedback	Yes
Break Blade Check	Yes
Cutting Speed	1-200mm/s
Cutting Accuracy	±0.5mm
Repeat Positioning Accuracy	±0.01mm
Coordinate Moving Speed	1000mm/s
Out Plate Type	ESD belt transportation/batch panel forwarding unit
Waste Collection Type	Out off the track
Procedure Programming	GERBER drawing import/Editing program through visual system
Air Supply	5-8kg/cm²
Power Supply	AC380V±5%, 50/60Hz, 3KW

Key Features

Automatic tool change system
ESD monitoring for static protection
Cutting stress feedback control
Automatic production mode operation
SPC statistic function integration with ERP management systems
Optional vacuum cleaner explosion-proof function

High Reliability Cutting System

Germany KAVO high-speed spindle with maximum speed of 60,000 RPM, featuring ESD static voltage monitoring, cutting stress feedback, and automatic tool changing capabilities.

Super Vision System

Precision machine vision system comprising German industrial imaging camera, Moritex Lens, and measurement-grade light source. Supports all machine calibration, compensation, and positioning functions with high stability and anti-disturbance capacity.

High Reliability PCB Gripper System

Jig-free cutting solution with PCB clamping size scope of 2mm. Pick-up device enables rapid loading/unloading with high stability and low operational cost.

Automatic Tool Changer

Standard tool changer supports three types of 3.175mm tools, each with maximum loading capacity of 10 tools. Combined with precise clamping and lifting systems; X1, Y1, and Z1 axes of cutting mechanism enable automated tool changing.

ESD ATPD Panel Forwarding System

Solution 1: Cut PCBs are delivered by clamping system to belt transmission line, then sent via ESD transmission line to assembly line, or picked and loaded into product cases by customized manipulator.

Solution 2: Use batch panel forwarding unit ARM-1 to replace belt transmission line, insert panel forwarding unit from behind machine, and directly load panels into blister box in ARM-1 via clamping system. This solution offers simplicity and convenience.
