50W Fiber Laser Metal Sheet Stencil Cutting Machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $23,000-58,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                50W fiber laser cutting machine, metal sheet stencil cutter, PCB depaneling laser machine


Weight:	3000 Kg	Power:	10 KW
Voltage:	220V/380V	Laser Power:	50W
Wavelength:	1070 Mm	Platform Accuracy:	±3μm
Platform Repeatability:	±1.5μm	Platform Velocity:	≤300mm/S
Location Detection:	0.1μm	Cutting Range:	600mm X 600mm
Table Size:	620mm X 620mm	Cutting Thickness:	≤0.5mm
Focus Diameter:	25-30μm	Beam Delivery:	Dust Cover
Drive System:	Linear Motor Drive

Weight:	3000 Kg
Power:	10 KW
Voltage:	220V/380V
Laser Power:	50W
Wavelength:	1070 Mm
Platform Accuracy:	±3μm
Platform Repeatability:	±1.5μm
Platform Velocity:	≤300mm/S
Location Detection:	0.1μm
Cutting Range:	600mm X 600mm
Table Size:	620mm X 620mm
Cutting Thickness:	≤0.5mm
Focus Diameter:	25-30μm
Beam Delivery:	Dust Cover
Drive System:	Linear Motor Drive

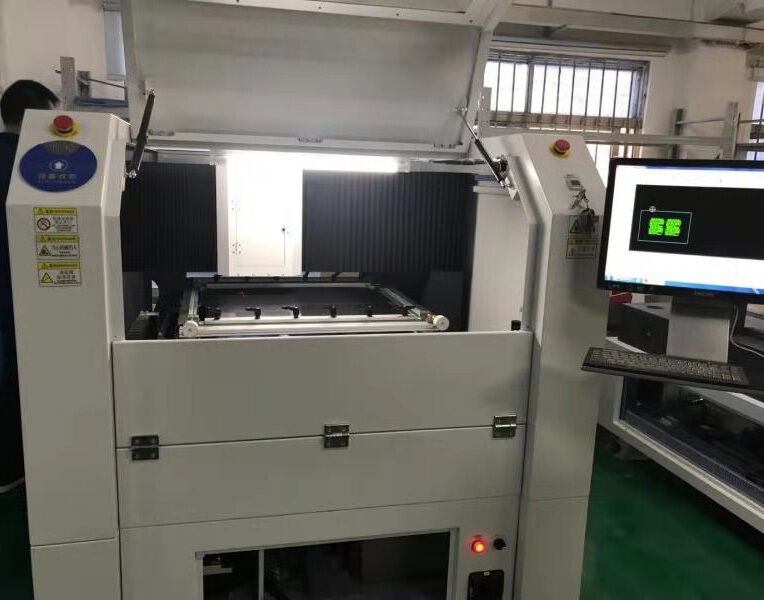

50W Fiber Laser Metal Sheet Stencil Cutting Machine

Advanced Waste Collection System

YS-GW50 features an innovative waste and smoke collection system designed to eliminate equipment stability issues caused by chips, slag, and iron dust. This advanced structure significantly enhances equipment service life and operational reliability.

High Power Fiber Laser Technology

Equipped with a semiconductor-pumped solid-state 50W fiber laser, this machine delivers superior cutting efficiency and expanded material compatibility. It handles both standard metal sheets and precision components with consistent performance across various thicknesses.

Customized Process Solutions

Professional fixture design accommodates materials of diverse sizes and shapes, ensuring every production minute is dedicated to laser cutting. This comprehensive equipment system optimizes user processes and maximizes equipment value.

Technical Specifications

Platform Positioning Accuracy	±3μm
Platform Repeatability	±1.5μm
Platform Velocity	≤300mm/S
Location Detection Sub Variability	0.1μm
Cutting Range	X 600mm × Y 600mm
Table Size	X 620mm × Y 620mm
Cutting Thickness	≤0.5mm (reference value)
Focus Diameter	25-30μm
Best Cutting Effectiveness	Up to 9400 Synthetic Aperture/hr, 13000-14000 standard aperture/hour (0.3mm diameter round date, 0.15mm steel)

Laser System Specifications

Laser Power	50W
Wavelength	1070nm
Beam Delivery System	Fiber Optic
Dust Protection	Dust Cover
Control System	PC-BASE CNC AC Servo Control
Drive System	Linear Motor Drive
Guide System	Precision Linear Guide Rails
CCD Module	CCD fill holes focus, coaxial CCD light function
Dust Collection	Waste collection with zero-emission
Blowing System	Coaxial blow assist gas
Fixture System	Pneumatic clamping
