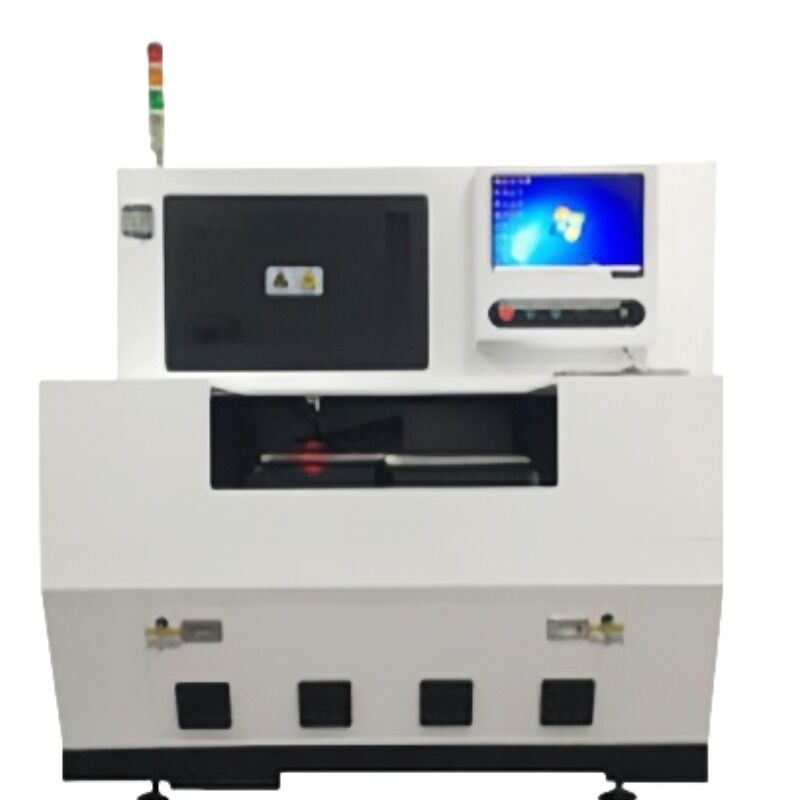

Name: PCB Laser Cutting Machine . UV Laser Cutting Machine . SMT Stencil Cutter
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSV-6A
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YSV-6A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $50,000-100,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB laser cutting machine with warranty, UV laser cutting machine for SMT stencils, PCB depaneling machine with UV laser


Weight:	1600 KG	Laser Brand:	USA Optowave
Laser Type:	Solid-State UV Laser	Laser Wavelength:	335nm
Laser Power:	10/12/15W	Positioning Precision:	±2μm
Repetition Precision:	±1μm	Working Area:	600*600mm
Scanning Speed:	2500mm/s (max)	Machine Weight:	1500kgs
Machine Size:	135011501550mm	Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Control Software:	Windows-based	Focusing System:	Automatic Real-time
Worktable Configuration:	Two Worktables

Weight:	1600 KG
Laser Brand:	USA Optowave
Laser Type:	Solid-State UV Laser
Laser Wavelength:	335nm
Laser Power:	10/12/15W
Positioning Precision:	±2μm
Repetition Precision:	±1μm
Working Area:	600*600mm
Scanning Speed:	2500mm/s (max)
Machine Weight:	1500kgs
Machine Size:	135011501550mm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Control Software:	Windows-based
Focusing System:	Automatic Real-time
Worktable Configuration:	Two Worktables

PCB Laser Cutting Machine . UV Laser Cutting Machine . SMT Stencil Cutter

PCB Laser Cutting Machine | UV Laser Cutting Machine | SMT Stencil Cutter

Key Features

High Accuracy: Low-drift galvanometer and fast ironless linear motor system platform enable rapid cutting with micrometer-level precision
Easy to Learn: Independent Windows-based control software with user-friendly Chinese interface, powerful and diverse functionality
Dual Worktables: Combination of two worktables allows simultaneous in/out operation, ideal for large-scale product cutting
Extended Platform: Platform extends outward for easy material handling, eliminating frequent door opening
Automatic Real-time Focusing: Ensures consistent cutting at optimal focus point
High Cutting Quality: Superior cutting accuracy with minimal blackening and carbonization
Compact Design: Small model size for easy transportation and installation

Technical Specifications

Model	YSV-6A
Laser Brand	USA Optowave
Laser Rate	Solid-State UV Laser
Laser Wavelength	335nm
Laser Power	10/12/15W
Positioning Precision	±2μm
Repetition Precision	±1μm
Working Area	600×600mm
Laser Scanning Speed	2500mm/s (max)
Machine Weight	1500kgs
Machine Size	1350×1150×1550mm

Packaging & Shipping

Upon completion, the machine body is protected and wrapped with plastic film to prevent damage during export transportation.

We measure customer-customized machine dimensions and create precisely fitting custom wooden boxes.

Export packaging utilizes sturdy wooden boxes specifically designed for heavy machinery, ensuring optimal protection during transit.
