Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine for assembly, practical PCB depaneling tool, PCB depaneling machine with warranty


Weight:	350kg	Power:	110V/220V AC 60HZ/50HZ
Size:	L1300W400H1000mm	PCB Thickness:	0.8-3.0mm
Core Components:	PLC, Motor	Cutting Speed:	Adjustable
Top Cutter Adjustment:	0-5mm	Single PCB Width:	15-20mm
Blade Material:	SKH51 High Speed Steel	Applicable Board Width:	>400mm
Cutting Process:	Unlimited	Cutter Adjustment:	Display Screen
Conveyor Belt:	Included	Multiple Cutters:	Yes
Type:	Air

Weight:	350kg
Power:	110V/220V AC 60HZ/50HZ
Size:	L1300W400H1000mm
PCB Thickness:	0.8-3.0mm
Core Components:	PLC, Motor
Cutting Speed:	Adjustable
Top Cutter Adjustment:	0-5mm
Single PCB Width:	15-20mm
Blade Material:	SKH51 High Speed Steel
Applicable Board Width:	>400mm
Cutting Process:	Unlimited
Cutter Adjustment:	Display Screen
Conveyor Belt:	Included
Multiple Cutters:	Yes
Type:	Air

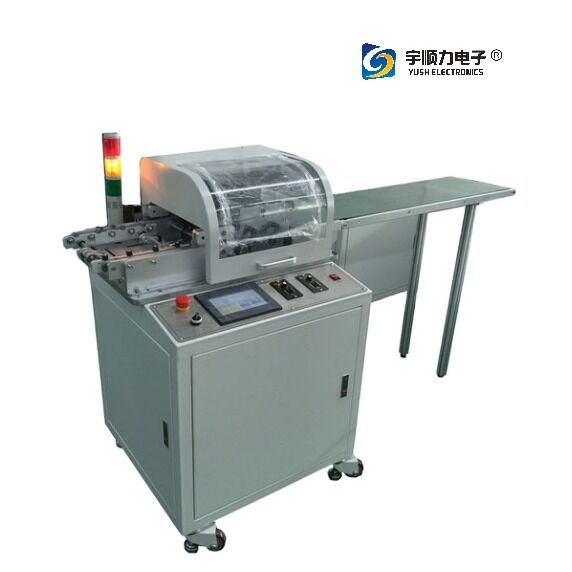

High Quality Practical PCB Depaneling Machine for PCB Assembly

Key Features & Benefits

Integral shaft design for top and bottom knives ensures easy installation and handling
Computer screen control with production counting and direct gap display
Compatible with all V-cut PCB boards
Reduces stress during cutting to prevent solder joint cracking
Multiple cutter configuration enables simultaneous cutting of several boards
Top cutter wheel adjustable from 0-5mm for precision control
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades for extended service life and wear resistance
Variable cutting speed controlled by convenient turn-knob adjustment
Integrated conveyor belt for automatic board ejection and seamless production line integration
Simple, efficient operation ideal for high-volume mass production

Material Compatibility

This depaneling machine efficiently processes LED panels, fiberboards, aluminum boards (400mm+), and specialized board materials.

Technical Specifications

Power Supply	110V/220V AC 60Hz/50Hz
Dimensions	1300mm (L) × 400mm (W) × 1000mm (H)
Weight	350kg
Cutting Process	Unlimited operation capability
PCB Thickness Range	0.8-3.0mm
Compatible Materials	LED panels, fiberboards, aluminum boards (400mm+), special boards
