Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high efficiency PCB depaneling machine, multi blade PCB depaneling machine, practical PCB assembly depaneling machine


Weight:	350kg	Size:	L1300W400H1000mm
Power:	110V/220V AC 60HZ/50HZ	PCB Thickness:	0.8-3.0mm
Cutting Speed:	Adjustable	Top Cutter Adjustment:	0-5mm
Single PCB Width:	15-20mm	Blade Material:	SKH51 High Speed Steel
Board Types:	LED Panel, Fiberboard, Aluminum Board (>400mm), Special Board	Core Components:	PLC, Motor
Cutting Process:	Unlimited	Multiple Cutters:	Yes
Conveyor Belt:	Included	Cutting Stress:	Reduced
Display Screen:	Gap Display

Weight:	350kg
Size:	L1300W400H1000mm
Power:	110V/220V AC 60HZ/50HZ
PCB Thickness:	0.8-3.0mm
Cutting Speed:	Adjustable
Top Cutter Adjustment:	0-5mm
Single PCB Width:	15-20mm
Blade Material:	SKH51 High Speed Steel
Board Types:	LED Panel, Fiberboard, Aluminum Board (>400mm), Special Board
Core Components:	PLC, Motor
Cutting Process:	Unlimited
Multiple Cutters:	Yes
Conveyor Belt:	Included
Cutting Stress:	Reduced
Display Screen:	Gap Display

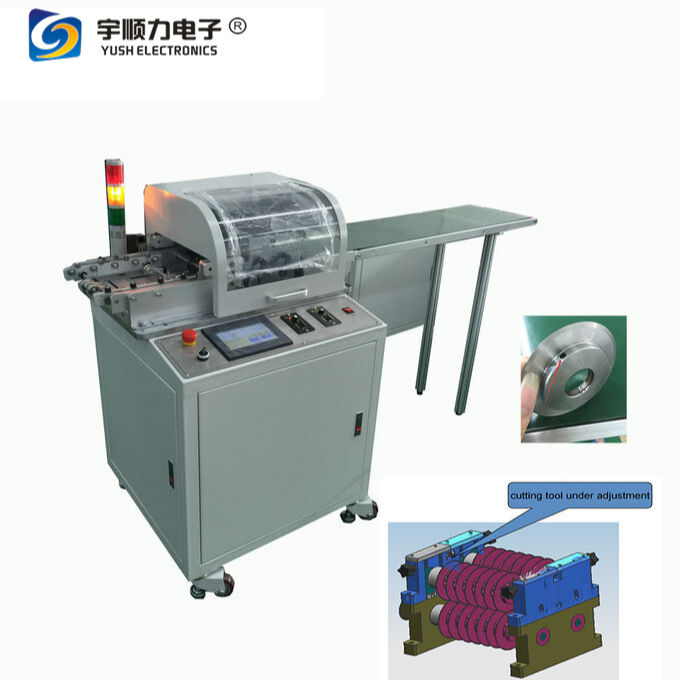

Super Practical High Efficiency Multi Blades PCB Depaneling Machine for PCB Assembly

High Efficiency PCB Depaneling Machine

Super Practical Multi-Blades PCB Depaneling Machine designed for efficient PCB assembly operations with advanced features for mass production.

Key Features & Benefits

Integral shaft design for top and bottom knives ensures easy installation and maintenance
Computer screen control with production counting and direct gap display for precise operation
Compatible with all V-cut PCB boards for universal application
Reduces cutting stress to prevent solder joint cracking and board damage
Multiple cutter system enables simultaneous cutting of several boards
Top cutter wheel adjustable from 0-5mm for fine-tuning cutting parameters
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades provide exceptional wear resistance and long service life
Variable cutting speed controlled by convenient turn-knob adjustment
Integrated conveyor belt system for automatic board ejection and seamless production line integration
Multi-blade operation ensures simple, efficient performance ideal for mass production environments

Technical Specifications

Power Supply	110V/220V AC 60HZ/50HZ
Dimensions	L1300 × W400 × H1000mm
Weight	350 kg
Cutting Process	Unlimited operation capability
PCB Thickness Range	0.8-3.0mm
Compatible Materials	LED panels, fiberboards, aluminum boards (≥400mm), and special boards
