High Speed Semi-auto SMT PCB Assembly Production Line

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 kilogram

Price: $90,000 / kilogram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT PCB assembly line, semi-auto PCB production line, high speed PCB depaneling machine


Weight:	2000 KG	Placement Speed:	156000 CPH
PCB Size:	300 X 350 Mm, 600 X 350 Mm, 1200 X 350 Mm	Platform Size:	300 X 350 Mm, 700 X 400 Mm, 1350 X 400 Mm
Stencil Size:	370470,550650,1500*650 Mm	PCB Thickness:	0.2 - 6 Mm
Cycle Time:	< 10 Sec., < 12 Sec.	Power Consumption:	200 W, 8kw, 10kw
Power Supply:	1-PH, 220VAC 50/60HZ	Air Pressure:	4.5-6 Kg/cm
Squeegee Speed:	0-1500mm/sec	Dimension:	850x750x1650 Mm, 1050x750x1650 Mm, 1660x750x1650 Mm, 5000x1250x1490 Mm, 5800x1250x1490 Mm
Number Of Heating Zones:	Up8/Bottom8, Up10/Bottom10	Length Of Heating Zones:	3121mm, 3891mm, 3030mm, 3730mm
Conveyor Height:	900+/-20mm

Weight:	2000 KG
Placement Speed:	156000 CPH
PCB Size:	300 X 350 Mm, 600 X 350 Mm, 1200 X 350 Mm
Platform Size:	300 X 350 Mm, 700 X 400 Mm, 1350 X 400 Mm
Stencil Size:	370470,550650,1500*650 Mm
PCB Thickness:	0.2 - 6 Mm
Cycle Time:	< 10 Sec., < 12 Sec.
Power Consumption:	200 W, 8kw, 10kw
Power Supply:	1-PH, 220VAC 50/60HZ
Air Pressure:	4.5-6 Kg/cm
Squeegee Speed:	0-1500mm/sec
Dimension:	850x750x1650 Mm, 1050x750x1650 Mm, 1660x750x1650 Mm, 5000x1250x1490 Mm, 5800x1250x1490 Mm
Number Of Heating Zones:	Up8/Bottom8, Up10/Bottom10
Length Of Heating Zones:	3121mm, 3891mm, 3030mm, 3730mm
Conveyor Height:	900+/-20mm

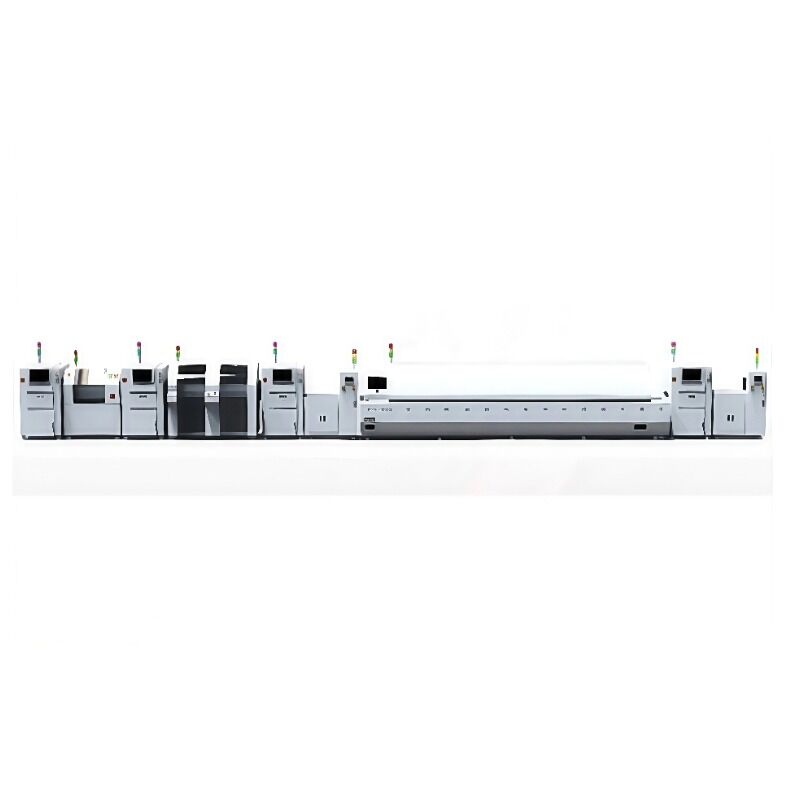

High Speed Semi-auto SMT PCB Assembly Production Line

This high-speed semi-automatic SMT production line is designed for efficient PCB assembly with placement speeds reaching approximately 156,000 CPH. Ideal for mobile phone and LED TV manufacturing applications.

SMT Stencil Printer (Semi-auto)

Specification	Y3 Model	Y6 Model	Y12 Model
Accuracy	+/- 0.05mm	+/- 0.05mm	+/- 0.05mm
PCB Size	300 x 350 mm	600 x 350 mm	1200 x 350 mm
Platform Size	300 x 350 mm	700 x 400 mm	1350 x 400 mm
Stencil Size (mm)	370470, 550650	370470, 550650	370470, 550650, 1500*650
PCB Thickness	0.2 - 6 mm	0.2 - 6 mm	0.2 - 6 mm
Stencil Positioning	Manual	Manual	Manual
Cycle Time	< 10 Sec.	< 10 Sec.	< 12 Sec.
Power Consumption	200 W	200 W	200 W
Power Supply	1-PH, 220VAC 50/60HZ	1-PH, 220VAC 50/60HZ	1-PH, 220VAC 50/60HZ
Air Pressure	4.5-6 kg/cm	4.5-6 kg/cm	4.5-6 kg/cm
Squeegee Speed	0-1500mm/sec	0-1500mm/sec	0-1500mm/sec
Dimension	850x750x1650 mm	1050x750x1650 mm	1660x750x1650 mm
Weight	280 Kg	300 Kg	356 Kg
Squeegee Length	250mm	250mm	250mm
Platform Height	950mm	950mm	950mm

Option: Special sizes can be customized according to specific requirements.

Reflow Oven

Specification	L8 Model	L10 Model
Dimension (LWH) mm	5000x1250x1490	5800x1250x1490
Weight	Approx. 1600KG	Approx. 1800KG
Number of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length of Heating Zones	3121mm	3891mm
Rail Width Adjustment	M (option: A)	M (option: A)
Exhaust Volume	10M³/min x 2 Exhausts	10M³/min x 2 Exhausts
Control System	PLC + Computer	PLC + Computer
Temperature Control Method	PID + SSR	PID + SSR

Specification	622 Model	733 Model
Dimension (LWH) mm	5040x145x1450	5800x1450x1450
Machine Weight	Approx. 2200KG	Approx. 2400KG
Number of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length of Heating Zones	3030mm	3730mm
Number of Cooling Zones	2	3
Control System	PLC + Computer	PLC + Computer
Transmission Agent	Chain + Mesh	Chain + Mesh
Max. Width of PCB	460mm	460mm
Power for Warm Up	45kw	55kw
Power Consumption	8kw	10kw
Conveyor Height	900+/-20mm	900+/-20mm
