Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                full-auto SMT LED production line, high speed PCB depaneling machine, SMT LED production line with warranty


Weight:	3000 KG	Conveyor Height:	900+/-20mm
Frame Size:	470370 ~ 737737	PCB Size:	5050 ~ 400340
Transport Direction:	Left-Right; Right-Left; Left-Left; Right-Right	Squeegee Type:	Stainless Steel(standard),plastic
Power Supply:	AC:220±10%,50/60HZ,3Kw	Control Method:	PC Control
Dimension:	122013551500	Number Of Heating Zones:	Up8/Bottom8
Length Of Heating Zones:	3121mm	Exhaust Volume:	10M3/minx2 Exhausts
Temperature Control:	PID + SSR	Conveyor Speed:	300~2000mm/min
Cooling Method:	Forced-Air Motor And Fan (Standard)

Weight:	3000 KG
Conveyor Height:	900+/-20mm
Frame Size:	470370 ~ 737737
PCB Size:	5050 ~ 400340
Transport Direction:	Left-Right; Right-Left; Left-Left; Right-Right
Squeegee Type:	Stainless Steel(standard),plastic
Power Supply:	AC:220±10%,50/60HZ,3Kw
Control Method:	PC Control
Dimension:	122013551500
Number Of Heating Zones:	Up8/Bottom8
Length Of Heating Zones:	3121mm
Exhaust Volume:	10M3/minx2 Exhausts
Temperature Control:	PID + SSR
Conveyor Speed:	300~2000mm/min
Cooling Method:	Forced-Air Motor And Fan (Standard)

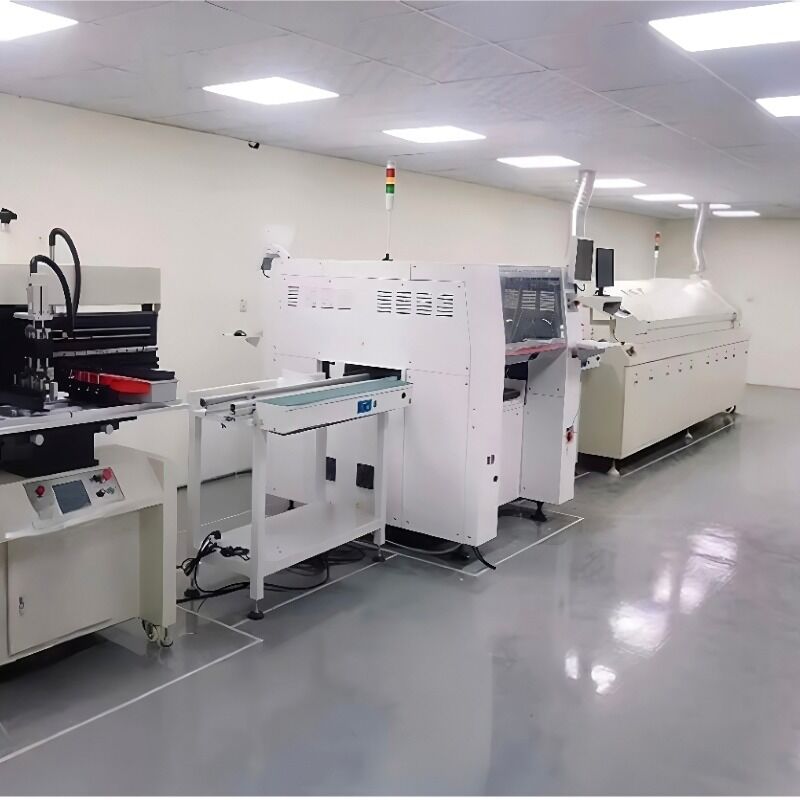

High Speed Full-auto SMT LED Production Line

Full-automatic SMT Production Line

Professional SMT production line offering high-quality, low-speed manufacturing solutions with comprehensive SMT expertise. Contact us for competitive pricing.

SMT Stencil Printer Specifications

Model	YSL-4034	YSL-5151	YSL-6561	YSL-1500(LED)
Frame Size(mm)	470370 ~ 737737	470370 ~ 737737	470370 ~ 850850	470370 ~ 1800750
PCB Size(mm)	5050 ~ 400340	5050 ~ 510510	8050 ~ 650610	8050 ~ 1500350
Transport Direction	Left-Right; Right-Left; Left-Left; Right-Right
Support System	Magnetic Pin/Up-down table adjusted/support block
Clamping System	Side clamping, vacuum nozzle, Automation retractable Z pressure
Printer Head	Two independent motorised printhead
Squeegee Type	Stainless steel(standard), plastic
Cleaning System	Dry, Wet, Vacuum
Inspection	2D Inspection(Standard)
Power Supply	AC:220±10%, 50/60HZ, 3Kw
Control Method	PC Control
Dimension(mm)	122013551500	122015301500	133015301500	250012201500
Weight	Approx:1250kg	Approx:1300kg	Approx:1300kg	Approx:1800kg

Model	YSL-5134	YSL-6534	YSL-1200(LED)
Frame Size(mm)	470370 ~ 737737	470370 ~ 737737	470370 ~ 850850
PCB Size(mm)	5050 ~ 400340	5050 ~ 510510	8050 ~ 650610
Dimension(mm)	122013551500	133015301500	220012001500
Weight	Approx:1250kg	Approx:1300kg	Approx:1500kg

Reflow Oven Specifications

Model	L8	L10
Dimension (LWH)mm	5000x1250x1490	5800x1250x1490
Weight	Approx. 1600KG	Approx. 1800KG
Number Of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length Of Heating Zones	3121mm	3891mm
Rail Width Adjustment	M(option:A)
Exhaust Volume	10M3/minx2 Exhausts
Control System	PLC+Computer
Temperature Control Method	PID + SSR
Transmission Agent	Chain + Mesh
Electric Supply Required	3 phase, 380V 50/60Hz
Power For Warm Up	55KW	64KW
Power Consumption	8KW	12KW
Warming Time	Approx.25 minute
Temp. Setting Range	Room Temp.-- 300°C
Conveyor Height	900+/-20mm
Conveyor Speed Range	300~2000mm/min
Fixed Rail Side	Front Fixed (Option:Rear Fixed)
Cooling Method	Forced-Air Motor and fan (Standard)

Model	622	733
Dimension (LWH)mm	5040x1450x1450	5800x1450x1450
Machine Weight	Approx. 2200KG	Approx. 2400KG
Number Of Heating Zones	Up8/Bottom8	Up10/Bottom10
Length Of Heating Zones	3030mm	3730mm
Number of Cooling Zones	2	3
Control System	PLC+Computer
Transmission Agent	Chain + Mesh
Max.Width Of PCB	460mm
Power For Warm Up	45kw	55kw
Power Consumption	8kw	10kw
Conveyor Height	900+/-20mm
