High Quality and High Efficiency PCB Router Off- Line Depanleing Machine YSVC-650

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $30,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine YSVC-650, off-line PCB router machine, high efficiency depaneling machine


Weight:	800kg	Voltage:	220V, 110V
Routing Area:	300 X 350 Mm	Cutting Speed:	0-100 Mm/s
Spindle Type:	NAKANISHI Japanese Precision Spindle	Cutting Path Proximity:	0.5mm To Component
Alignment Compensation:	CCD Camera	Depth Adjustment:	5-stage Automatic
Core Components:	PLC, Engine, Bearing, Gearbox, Motor	Machine Type:	Router Depaneling Machine
Operation Type:	Off-Line	Vision Correction:	High-speed CCD
Board Edge Quality:	Smooth, High Precision	Software Operation:	Windows-based Point-and-click
Fiducial Mark Reading:	CCD Camera

Weight:	800kg
Voltage:	220V, 110V
Routing Area:	300 X 350 Mm
Cutting Speed:	0-100 Mm/s
Spindle Type:	NAKANISHI Japanese Precision Spindle
Cutting Path Proximity:	0.5mm To Component
Alignment Compensation:	CCD Camera
Depth Adjustment:	5-stage Automatic
Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Machine Type:	Router Depaneling Machine
Operation Type:	Off-Line
Vision Correction:	High-speed CCD
Board Edge Quality:	Smooth, High Precision
Software Operation:	Windows-based Point-and-click
Fiducial Mark Reading:	CCD Camera

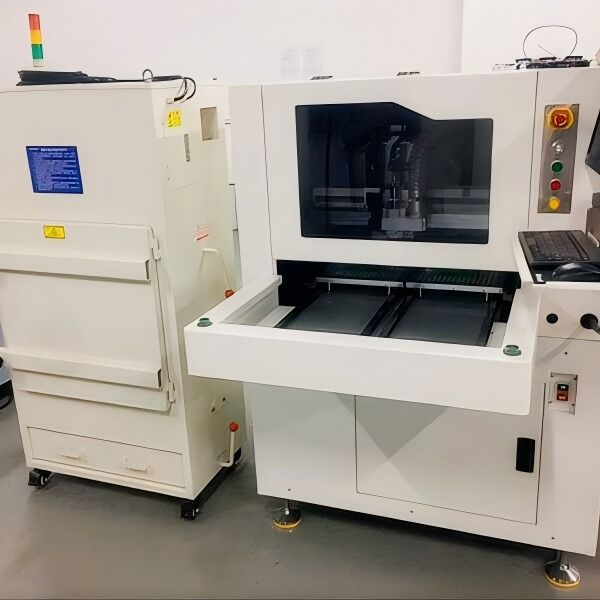

High Quality and High Efficiency PCB Router Off- Line Depanleing Machine YSVC-650

High Quality and High Efficiency PCB Router Off-Line Depaneling Machine YSVC-650

Product Overview

The YSVC-650 series is a visual alignment automatic PCB router machine equipped with high-speed CCD vision correction technology. Designed for precision and high-capacity PCB board routing operations, this machine is ideal for depaneling mobile phones, GPS devices, PDAs, MODULE components, and other small PCBs. Featuring NAKANISHI Japanese precision spindles (with optional Germany KAVO spindles available), it delivers stress-free cutting with smooth board edges and exceptional precision.

Key Features

Low-Stress Depanelization Solution: High-speed router bits precisely cut densely populated PCBs without stressing the boards, with cutting paths programmable as close as 0.5mm to components.
Advanced Image-Processing Software: Point-and-click Windows-based operation simplifies programming of cutting paths using CCD camera-captured PCB images, reducing setup time and complexity.
Automatic Alignment Compensation: CCD camera reads fiducial marks on PCBs and compensates for variance in relative position of cutting paths.
Extended Router Bit Life: Automatic 5-stage depth adjustment extends bit lifespan and reduces replacement time and costs.

Applications

Ideal for depaneling operations in mobile phone manufacturing, GPS devices, PDAs, MODULE components, and other small PCB applications requiring high precision and efficiency.
