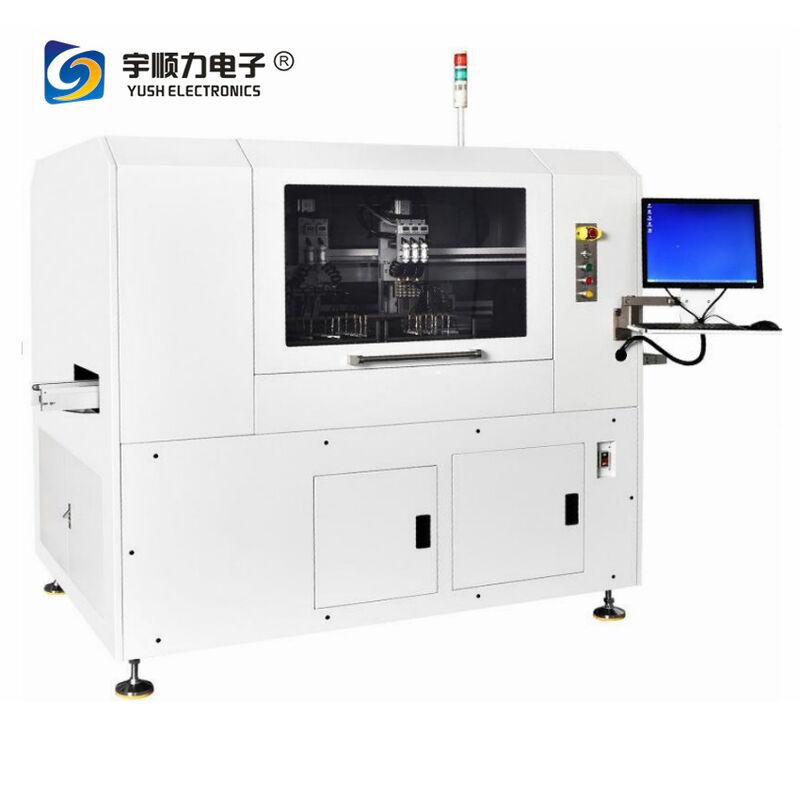

Product Details
Place of Origin: Guangdong, China
Brand Name: YUSH
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $50,000-100,000 / set
Weight: |
1000 Kg |
Power: |
10 KW |
Voltage: |
220V |
Cutting Accuracy: |
±0.08mm |
Repeatability: |
±0.02mm |
Working Range: |
400mmx400mm |
PCB Thickness: |
0.3mm-6mm |
Spindle Speed: |
80000/min |
Equipment Size: |
1590x1330x1650mm |
Mark Point Types: |
Round, Square |
Vacuum Cleaner Size: |
750x580x615mm |
Maximum Stress: |
-240 ~ 130 Micro N/mm |
Cutter Size: |
0.8mm-3.0mm |
Gas Source: |
4-6kg/cm² |
Dust Filtering Accuracy: |
0.0001 |
Weight: |
1000 Kg |
Power: |
10 KW |
Voltage: |
220V |
Cutting Accuracy: |
±0.08mm |
Repeatability: |
±0.02mm |
Working Range: |
400mmx400mm |
PCB Thickness: |
0.3mm-6mm |
Spindle Speed: |
80000/min |
Equipment Size: |
1590x1330x1650mm |
Mark Point Types: |
Round, Square |
Vacuum Cleaner Size: |
750x580x615mm |
Maximum Stress: |
-240 ~ 130 Micro N/mm |
Cutter Size: |
0.8mm-3.0mm |
Gas Source: |
4-6kg/cm² |
Dust Filtering Accuracy: |
0.0001 |
| Parameter | Specification |
|---|---|
| Effective Cutting Size | Double working platform, maximum working range of single platform 400mm×400mm |
| Dust Collection Method | Anti-static, explosion-proof filter bags with foolproof device and automatic alarm system; filtering accuracy 0.0001 |
| Cutting Spindle | German Sycotec (ESD) speed: 80,000 rpm adjustable (air cooling) |
| Tool Change Method | Automatic milling cutter replacement with life monitoring |
| Broken Tool Detection | Equipped with broken tool detection system |
| Workbench Mode | Panasonic servo motor + precision ground screw + precision slide |
| Servo Motor Brand | Japan Matsushita |
| Computer System | Taiwanese industrial computer with Windows 7 genuine system |
| Static Eliminator | Schneider France |
| Information Management | MES system support with Ethernet interface and TCP/IP protocol |
| CCD Camera Structure | Flying camera structure with height differentiation capability |
| MARK Point Recognition | Full type recognition and correction standard |
| LED Aperture Control | Software-adjustable color difference and brightness |
| Operator Authority | Four-level password protection |
| Expansion Function | Reserved ports for future robot or automation integration |
| Parameter | Specification |
|---|---|
| Cutting Accuracy | ±0.08mm |
| Repeatability | ±0.02mm |
| Maximum Working Range | 400mm × 400mm |
| PCB Cutting Thickness | 0.3mm - 6mm |
| Applicable Cutter Size | 0.8mm - 3.0mm |
| Mark Point Types | Round, Square |
| Cutting Functions | Straight line, sector shape, circle shape, universal copy, automatic correction and compensation |
| Parameter | Specification |
|---|---|
| XYZ Control Method | CNC Dedicated Controller |
| XYZ Drive Mode | Panasonic AC Servo |
| Maximum Spindle Speed | 80,000 rpm |
| Vacuum Method | Suck up |
| Router Type | Suction up (right-handed) |
| PCB Support Method | Universal top PIN, special fixture |
| Equipment Power | AC 220V |
| Vacuum Cleaner Power | AC 380V |
| Gas Source | 4-6kg/cm² |
| Equipment Size (L×W×H) | 1590×1330×1650mm |
| Vacuum Cleaner Size (L×W×H) | 750×580×615mm |
| Total Weight | 1000 KG |
