High Speed Automatic Double Direction PCB Depaneling Machine

Name: High Speed Automatic Double Direction PCB Depaneling Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSV-5A
Price: 12800 USD
Availability: InStock

Product Details

Place of Origin: China,Guangdong

Brand Name: YUSH

Certification: CE

Model Number: YSV-5A

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 12800

Packaging Details: wooden case

Delivery Time: 20work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                automatic PCB depaneling machine, double direction PCB cutter, high speed PCB depaneling equipment

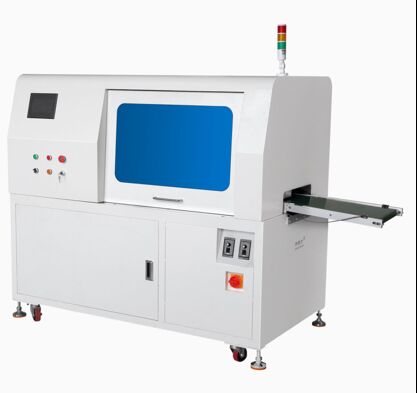

High Speed Automatic Double Direction PCB Depaneling Machine

Product Overview

The YSV-5A automatic PCB depaneling machine is an advanced splitting system that performs both horizontal and vertical bidirectional board separation in a single operation. This innovative solution eliminates the need for secondary PCB separation processes, making it ideal for bidirectional V-cut PCB boards, downlight boards, and LED aluminum plates.

Complete two-direction cutting on a single device saves significant time and labor while delivering smooth, burr-free cutting surfaces. Unlike conventional single-direction depaneling machines, the YSV-5A efficiently handles the challenging requirements of bidirectional V-slot line PCB boards without requiring manual secondary operations.

Internal Machine Structure

Key Features

Fully automatic bidirectional board separation capability
Flexible operation for both horizontal and vertical cutting directions
Rapid product changeover with fast modular conversion
Integration capability with upstream and downstream board handling equipment for fully automated production lines
Simple operation requiring minimal training for operator proficiency
Unique tool design providing 1.5x increased durability

Blade Tool Specifications

Technical Parameters

Model	YSV-5A
Product Name	Automatic Double Direction PCB Depaneling Machine
Dimensions (LWH)	1100(1470)mm * 900mm * 1460mm
Blade Sizes	Round knife: ∅125 * ∅30 * 3mm, Straight knife: 356 * 65 * 6mm Round knife: ∅125 * ∅35 * 3mm, Straight knife: ∅90 * ∅35 * 3mm
Blade Material	Imported high-quality high-speed steel
Blade Brand	Yushunli
Board Width	Single boards: 8mm (Whole board: 300mm)
Drive System Motor	Stepper motor / Servo (optional)
Cutting Speed	300-500mm/s
Cutting Board Types	Two-way V-CUT well type products, Single direction V-CUT products
V-CUT Thickness	One-third thickness
Working Pressure	0.5-0.8 MPa
Operating Voltage	220V / 110V Optional
Equipment Power	30kW (Not including vacuum cleaner)
Machine Weight	550kg
