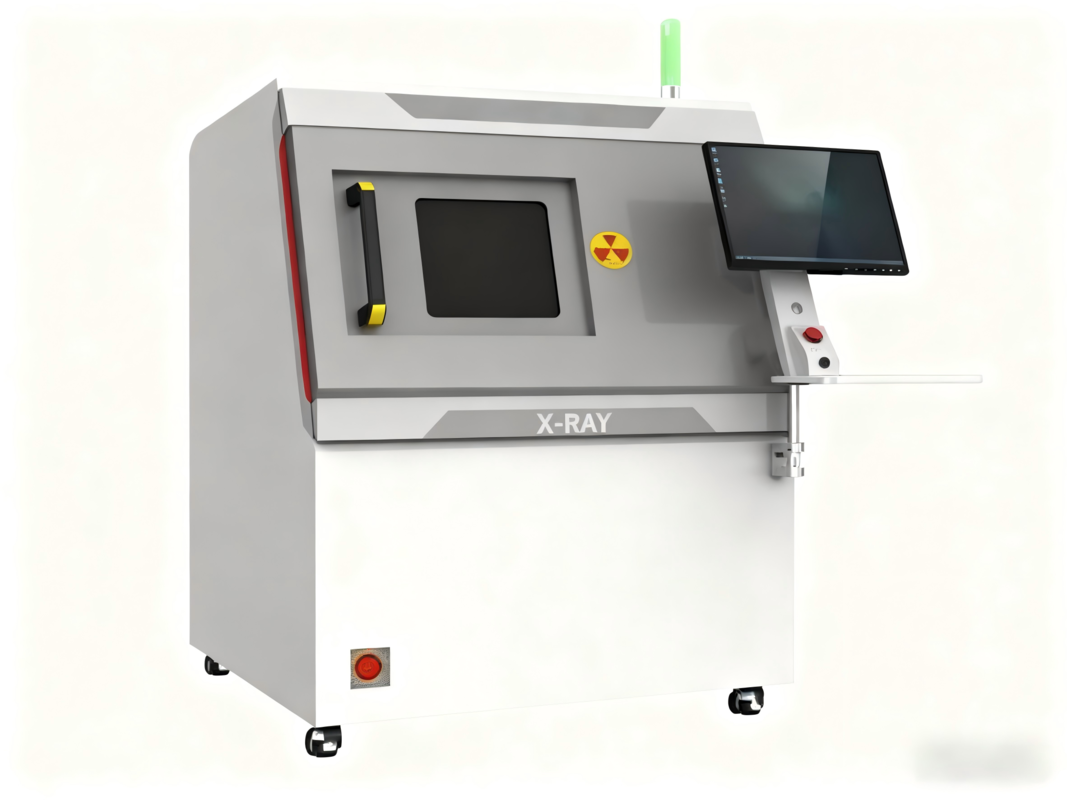

Name: High Quality and High Efficiency Microfocus X-RAY Inspection System
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-X6600
Price: 43000 USD
Availability: InStock

Product Details

Place of Origin: Guangdong

Brand Name: YUSH

Model Number: YS-X6600

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD43000

Delivery Time: 20work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Microfocus X-RAY inspection system, High efficiency PCB depaneling machine, X-RAY inspection system with warranty


Tube Voltage:	40-90kV	Tube Current:	10-200uA (software Limited To 89uA )
Imaging Area:	130mm*130mm	Repeated Test Accuracy:	3μm

Tube Voltage:	40-90kV
Tube Current:	10-200uA (software Limited To 89uA )
Imaging Area:	130mm*130mm
Repeated Test Accuracy:	3μm

High Quality and High Efficiency Microfocus X-RAY Inspection System

Function

X-ray tube and detector can move along Z direction
Speed of table moving along X-Y direction can be adjusted
High-definition digital flat panel detector
Max Inclined Angle is 60°, samples can be observed with a unique perspective
Fault less than 2.5μm can be detected
High detection repeat accuracy
Powerful CNC Measuring Function, can test automatically, testing program can be edited
Large inspection space, can put various large-sized samples
The table can carry 10KG items
Large navigation view, table will move to where you click the mouse

Advantages

Larger effective detection range, improving the magnification and the detection efficiency of the product
Easy to identify the side defects of the product and achieve no dead angle detection
Easy to distinguish the gold wire bending and break of the semiconductor package
Suitable for large-scale inspection and improve detection efficiency
Large table for large industrial control boards, ultra-long LED strips, and electronic products for various fields
Very easy to operate, quickly find item defects and improve detection efficiency
