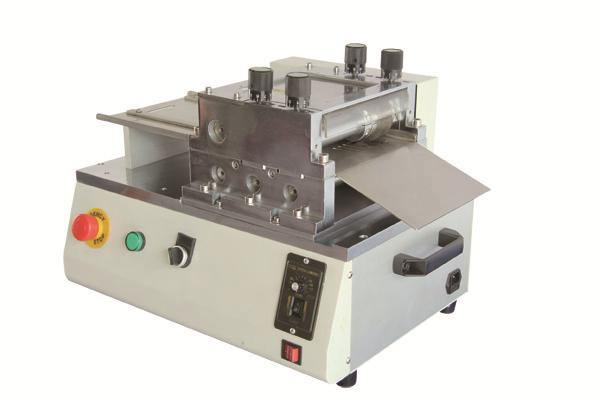

Name: High Quality and High Efficiency Small Multi-blades Depaneling Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSATM-3L
Price: 8500 USD
Availability: InStock

Product Details

Place of Origin: Guangdong

Brand Name: YUSH

Certification: CE

Model Number: YSATM-3L

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD8500

Packaging Details: wooden case

Delivery Time: 20work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                small PCB depaneling machine, multi-blades depaneling machine, high efficiency PCB cutter


Machine Dimension:	610 X 370 X400mm	Blades:	4 Group; 5 V-Cut Lines; 20 Pcs Blades;
Max Cutting Width:	300mm ;	Minimum Component Distance From V-groove:	1mm

Machine Dimension:	610 X 370 X400mm
Blades:	4 Group; 5 V-Cut Lines; 20 Pcs Blades;
Max Cutting Width:	300mm ;
Minimum Component Distance From V-groove:	1mm

High Quality and High Efficiency Small Multi-blades Depaneling Machine

Product Features

Separates boards up to 3.5mm thick
Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors
The single separated Min PCB width is 8 mm. Max cutting width 300mm
Suitable cutting material of PCB: aluminum, FR4, glass fiber panels
Handles high components up to 70mm
Bow waves that can occur with round knives are avoided
Easy adjusting of distance between knives

Operation Details

Adjust blades to PCB score line using rotary knob
Boards are separated without bending or breaking
Safe for use with flexible and thin (to 0.5mm) PCBs
Smooth, quiet pneumatic-powered unit with foot-pedal activation
Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion
Can be used with aluminum and other substrates, including substrates with metal inner layers
