Name: High Precision pcb depaneling machine Online Test For ICT Production
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-816SII
Price: 12000 USD
Availability: InStock

Product Details

Place of Origin: jiangsu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSL-816SII

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD12000

Packaging Details: wooden case

Delivery Time: 5-7days

Payment Terms: L/C, D/P, T/T

Supply Ability: 100sets

Get Best Price

Product Details

Product Description

Highlight:
                                                Online Test pcb depaneling machine, ICT Production pcb depaneling machine, High Precision pcb depaneling machine

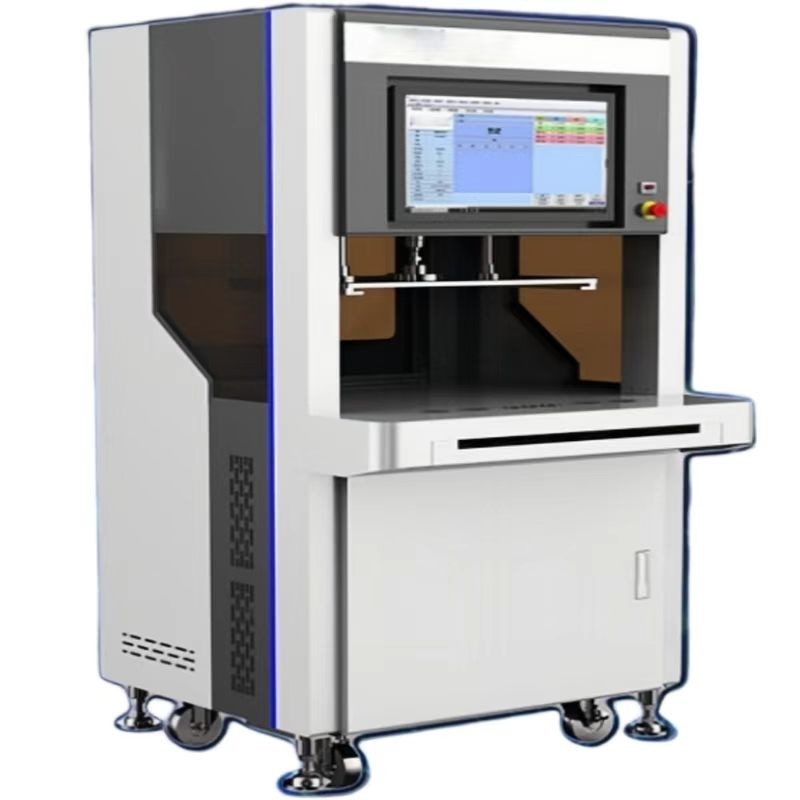

High Precision pcb depaneling machine Online Test For ICT Production

Summary:

YSL-816SII, It has been upgraded and optimized in terms of overall product structure, operational safety, test diversity, and system intelligence.

Feature:Innovative strInnovative structure, more humane and safer

1.The instructions are synchronized with the screen results
2.Equipped with Safety Light Curtain

3.Flip door, More convenient operation

4.Double hydraulic lever, More steadyoperation

5.Equipped with air switch, more safeoperation
6.Waist hole heat dissipation window

System specification

Test point	Standard:256 points ;max:4096 points
system	Windows7-10
power source	200-240VAC,Single Phase,50/60Hz 3KVA
Air Requirement	4-8kg/cm2; 15liters/cycle
Environment	Temperature:0℃-40℃
Environment	Operating Humidity:20%-80%
Fixture Type	Manual type; Press type,Inline type
Open/short Test	1000point<1S ,Innovation algorithm
Component Test	0.5ms-30ms
PCBA Size	450mm(W) -300mm( L )-100mm(H)
Pneumatic	diameterφ:100MM;Cylinder stroke :160MM, maximum pressure :470KG/6Bar
Resistance	0.01mΩ- 40MΩ
Capacitance	10PF-60MF
Inductance	10uH-60H
Programmable DC Voltage Source	±10VMAX,Resolution:10mV
Programmable DC Current Source	100mA MAX,Resolution:0.2mA
Programmable Frequency	100Hz,1KHz,10KHz,100KHz
DC Voltmeter	0±100V Resolution:3mV-50mV
DCAmmeter	1uA-50mA Resolution:30nA-50uA

Optional Function:printer;Romote contorl and monitoring; MES API
