High Precision Semi-Automatic Printing Machine Power Supply Single Phase (220V) Starting Power 0.2KW Moving Speed 0-2200

Name: High Precision Semi-Automatic Printing Machine Power Supply Single Phase (220V) Starting Power 0.2KW Moving Speed 0-2200
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-1200
Price: 21,400.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu

Brand Name: Yushunli

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSL-1200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 6800~36000

Packaging Details: Plywooden case

Delivery Time: 3 days to 7days

Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability: 300 sets/ month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                220V Semi-Automatic Printing Machine, High Precision Semi-Automatic Printing Machine, 0.2KW Semi-Automatic Printing Machine


Moving Direction:	Side-to-side Mobility	Working Table:	1200mm×500mm
Power Supply:	Single-phase (220V)	Boundary Dimension:	Boundary Dimension
Air Source:	0.5mpa-0.8mpa	Initial Power:	0.2KW
Weight:	350KG

Moving Direction:	Side-to-side Mobility
Working Table:	1200mm×500mm
Power Supply:	Single-phase (220V)
Boundary Dimension:	Boundary Dimension
Air Source:	0.5mpa-0.8mpa
Initial Power:	0.2KW
Weight:	350KG

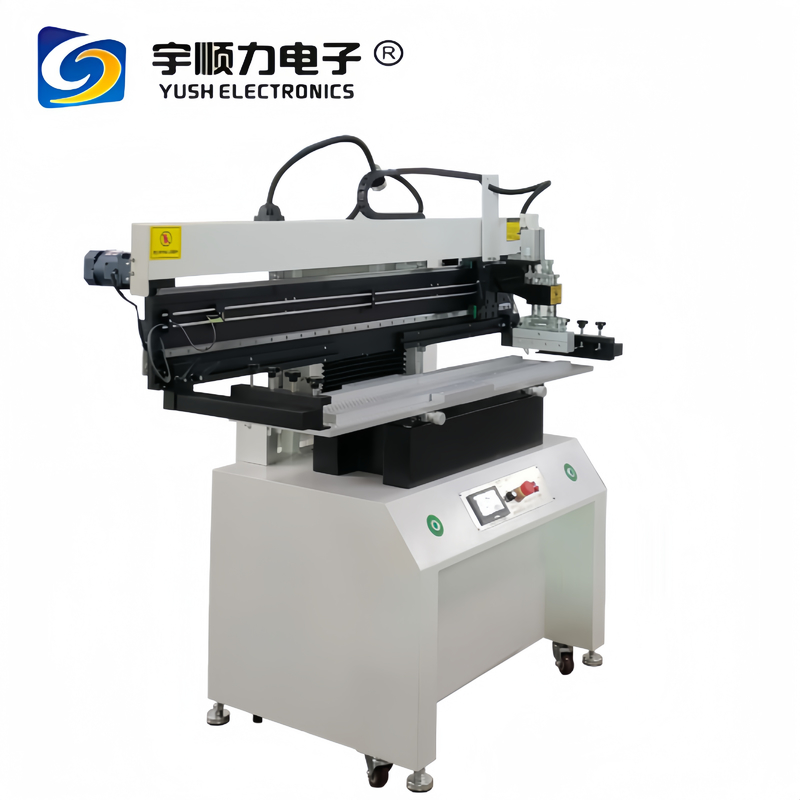

High Precision Semi-Automatic Printing Machine Power Supply Single Phase (220V) Starting Power 0.2KW Moving Speed 0-2200

High precision semi-automatic printing machine

Introduce

1. Microcomputer control, touch screen display, menu operation interface;

2. The scraper floats. (Similar to MPM automatic printing machine, scraper can float up and down freely and automatically adjust the level of steel mesh);

3. The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of different types of scrapers);

4. Equipped with inverter speed control system, the scraper running speed is stable;

5. The working operation adopts two-hand key switch operation, safe and reliable;

6. The pause time of the steel mesh as a whole can be independently set in the touch screen menu;

7. The positioning and fixing methods of PCB board include reference hole positioning, reference side positioning and reference hole and reference side positioning at the same time, template positioning and so on The precise positioning form of;

8. The touch screen is equipped with time display function, automatic counting of printing times and screen saver function;

9. With adjustable blade speed and emergency stop safety function;

10. Printing mode: single, double, double start (menu setting optional);

11. Printing working state: automatic/semi-automatic/click three printing states (menu Settings optional);

High Precision Semi-Automatic Printing Machine Power Supply Single Phase (220V) Starting Power 0.2KW Moving Speed 0-2200 0

LED Line Total Sulution

Printing machine technical configuration
Equipment name	High precision semi-automatic printing machine			Model: YSL-1200

Project	Serial number	Name		Tender detailed technical parameters(Functional features)	Explain
Basic parameters
	1		Moving direction	Side-to-side mobility
	2		Working table	1200mm×500mm
	3		Power source	Single-phase (220V)
	4		Boundary dimension	Boundary dimension
	5		Air source	0.5mpa-0.8mpa
	6		Initial power	0.2KW
	7		Weight	350KG
	8		Date of delivery	10-12 working days
	9		Transportation and lifting	Specialized transport unit
Travel mechanism
	1		Head feed motor	Three-phase motor 60W
	2		Movement speed	0-2200mm/mins
	3		Guide rail	Taiwan silver linear guide
Control segment
	1		PLC	Siemens (for printing presses)
	2		Touch screen	4.3# Display control screen
	3		Master cylinder piston	SC80*150
	4		Tool head cylinder	CDU25-50
	5		Transducer	ENC
