YS-12 fully automatic visual printing machine is mainly used in mini LED,

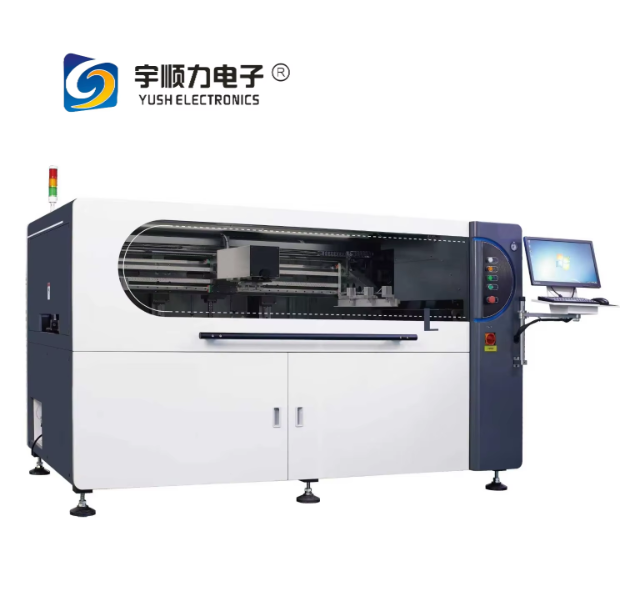

YS-12 Fully Automatic Visual Printing Machine

The YS-12 fully automatic visual printing machine is primarily designed for mini LED applications, offering precision printing capabilities for advanced electronic manufacturing.

Product Overview

Technical Specifications

Screen Frame Parameters

Minimum Size	520 × 300 mm
Maximum Size	1500 × 750 mm
Thickness	20-40 mm
Stencil Position Mode	Manual positioning

PCB Board Parameters

PCB Minimum Size	50 × 50 mm
PCB Maximum Size	1200 × 350 mm
PCB Thickness	0.4-6 mm
PCB Warpage	<1%
PCB Board Edge Clearance	2.5 mm
Board Height	25 mm
Transport Height	900 ± 40 mm
Transport Speed	Maximum 1500 mm/s (Programmable)
Transport Mode	One section transportation track
Maximum PCB Board Weight	7 kg
Transport Direction	Left-Right; Right-Left; Left-Left; Right-Right

Printing Parameters

Printing Speed	10-200 mm/sec
Printing Pressure	0.5-25 kg
Printing Mode	Single or double squeegee printing
Release Distance	0-20 mm
Snap-Mode	Three stage demolding
Squeegee Type	Rubber squeegee/Steel squeegee
Release Speed	0-20 mm/sec

Printing Accuracy

Repeat Position Accuracy	±0.015 mm
Printing Accuracy	±0.025 mm
Cycle Time (Excluding Cleaning)	<15 seconds
Changeover Time	<5 minutes

Cleaning Parameters

Cleaning Stroke	Automatic generation
Cleaning Position	Right cleaning
Cleaning Speed	10-200 mm/sec
Cleaning Fluid Consumption	Auto & manually adjustable
Cleaning Paper Consumption	Auto & manually adjustable

Image Parameters

CCD FOV	10 × 8 mm
Camera Type	130 megapixel digital camera
Camera System	Lock up/down option structure
Camera Cycle Time	150 ms
Mark Size	0.1-6 mm
Stay Away Number	Maximum: 1 piece
Mark Number	Maximum: 4 pieces
2D Detection	Detect low tin/missing print/continuous tin

Functional Configuration

Safety Control: Door open to stop, abnormal alarm
Smart UI: Brand new interface, shortcut key operation
Permission Setting: Freely configurable authority division for operators, technicians, and engineers
Standard MES System: Customized Industry 4.0 solutions, SOP recording, equipment data upload
SPI Connection: Automatic compensation for offset, detection of insufficient tin, automatic steel mesh cleaning
Traceability System: Camera scan code, compatible size: 2.5×2.5-8×8 mm

Installation Requirements

Machine Weight	1500 kg
Main Power Supply	AC: 220±10V; 50/60Hz, 3.5KW, with stable current and power supply
Ground Wire	Equipment requires separate grounding with dedicated grounding wire
Plug Type	English SS145 (13A)
Main Air Supply Source	4.0-6 kgf/cm² industrial gas source, with 8mm straight airway diameter

Operating Environment

Working Temperature	-20℃ to 45℃
Working Environment Humidity	30% to 60%
Electrostatic Protection	ESD grounding electrostatic protection
