Name: 2.2kw Fully Automatic Pcb Solder Paste Printer High Precisely
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-E
Price: 12000 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSL-E

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD12000

Packaging Details: wooden case

Delivery Time: 5-7days

Payment Terms: L/C, D/P, T/T

Supply Ability: 100sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                2.2kw Pcb Solder Paste Printer, High Precisely Pcb Solder Paste Printer, Fully Automatic Pcb Solder Paste Printer


Power Source:	AC:220±10%,50/60Hz 2.2KW	Air Pressure:	4~6Kgf/cm²
Air Consumption:	5L/min	Operating Temperature:	-20℃~+45℃
Working Environment Humidity:	30%~60%	Machine Dimension(without Tower Light):	1500(H)mm
Machine Length:	1258(L)mm	Machine Width:	1425(W)mm
Machine Weight:	Approx:1100Kg	Equipment Load Bearing Requirements:	650Kg/m

Power Source:	AC:220±10%,50/60Hz 2.2KW
Air Pressure:	4~6Kgf/cm²
Air Consumption:	5L/min
Operating Temperature:	-20℃~+45℃
Working Environment Humidity:	30%~60%
Machine Dimension(without Tower Light):	1500(H)mm
Machine Length:	1258(L)mm
Machine Width:	1425(W)mm
Machine Weight:	Approx:1100Kg
Equipment Load Bearing Requirements:	650Kg/m

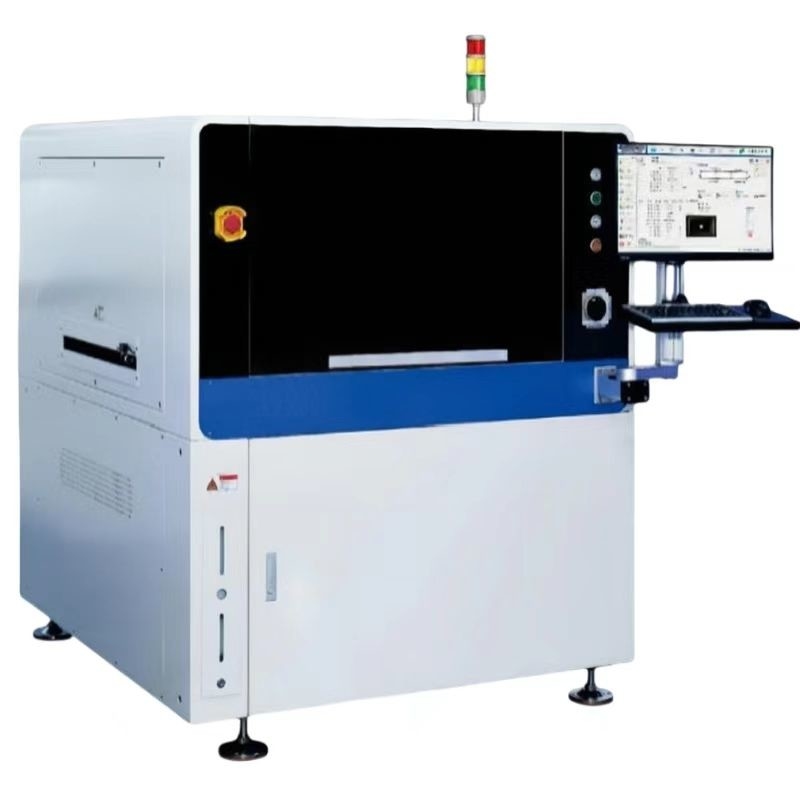

2.2kw Fully Automatic Pcb Solder Paste Printer High Precisely

Fully Automatic pcb solder paste printer

Machine Performance
Repeat Position Accuracy	±12.5um@6o CPK≥2.0
PrintAccuracy	±22um@6o CPK≥2.0
NCP-CT(Excluding cleaning and printing)	<7.5 sec
HCP-CT(Including cleaning and printing)	19s/pCs
Process CT	5min
Transfer CT	3min
Substrate processing parameter
Maximum board size	510*510mm
Minimum board size	50*50mm
Board thickness	0.4~6mm
Camera Mechanical range	510*510mm
Maximum board weight	5kg
Board edge clearance	2.5mm
Board height	23mm
Transport speed	900±40mm
(Max)Transport speed	Segmented control,1500mm/s(Max)
Transport direction	One stage
Transmission direction	Left to right
	Right to Left
	In and out the same
Support System	65mm)Magnetic Pin
	(65mm) Support Block
	Manual Up-down table
Board clamp	Manual retractable upper tablet
	Side damping
	Adsorption function

Printing Parameters
Print Speed	10~200mm/sec
Print Pressure	0.5~20Kg
Print Mode	One/Twice
Queegee Type	Rubber/SqueegeeBlade (angle 45/55/60)
Snap-off	0~20mm
Snap-Speed	0~20mm/sec
The template frame size	470370mm~737737mm
Steel mesh positioning method	Automatic Y-direction positioning (compatible with manual compensation adjustment)
Cleaning Parameters
Cleaning System	Dry,Wet Vacuum three modes
High speed cleaning	weave cleaning
Cleaning system	Side spray type
Cleaning stroke	Automatic generation
Cleaning position	Postcleaning
Cleaning Speed	10-200mm/sec
Cleaning fluidconsumption	Auto &Manually adjustable
Cleaningpaper consumption	Auto &Manually adjustable
Vision Parameters
CCD FOV	10*8mm
Camera type	130 Thousand CCD Digital camera
Camera System	Lock up/down optics structure
Camera Cycle time	300 ms
Fiducial mark types	Standard Fiducial Mark Shape
	round,square,diamond,cross
	Pad and profile
Mark size	0.3-6mm
Mark number	Max:4pcs
Stay away number	Max:1pcs
