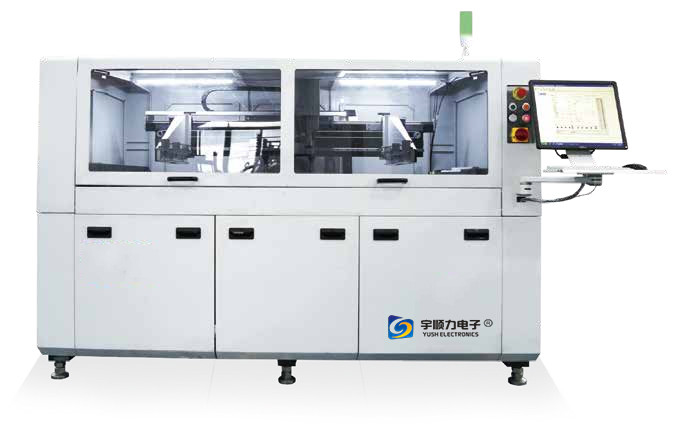

Product Details
Place of Origin: JiangSu
Brand Name: YUSH
Certification: CE Mark
Model Number: YSL-120
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: business negotiation
Packaging Details: wooden package
Delivery Time: 3 days to 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25 Set/Sets per Month
Features: |
Stable Printing Quality |
Screen Frame Size(mm): |
1000(×)×300(Y)-1500(×)×650(Y) |
Min PCB(mm): |
80(×)×50(Y)mm |
Max PCB(mm): |
1200(X)×360(Y) |
Thickness: |
0.2MM-6MM |
Curve: |
＜1% |
Features: |
Stable Printing Quality |
Screen Frame Size(mm): |
1000(×)×300(Y)-1500(×)×650(Y) |
Min PCB(mm): |
80(×)×50(Y)mm |
Max PCB(mm): |
1200(X)×360(Y) |
Thickness: |
0.2MM-6MM |
Curve: |
＜1% |
Features
1. Perfect solution for large size product printing
2. Simple calibration and maintenance
3. Stable printing quality
4. Independent developed image processing software
Overall diagram
1. Machine housing module
2. CCD image capture module
3. Stencil lifting module of Z-axis
4. Squeegee printing module
5. Cleaning module
6. Platform fine adjustment module
7. Rail and conveyor module
8. Three color warning lamp
9. Display and input device
Technical parameters
| Parameter | YSL-120 | |
| Basic Parameters | Screen Frame Size(mm) | 1000(×)×300(Y)-1500(×)×650(Y) |
| Thickness∶ 20-40mm | ||
| Min PCB(mm) | 80(×)×50(Y)mm | |
| Max PCB(mm) | 1200(X)×360(Y) | |
| Thickness | 0.2mm～6mm( Use jig when pcb less than 0.4mm) | |
| Curve | <1%(Diagonal measurement) | |
| PCB backside Part Height | 15mm | |
| Conveyor height | 900±40mm | |
| Support | Magnetic support,Magnetic piece,Vacuum chamber(Option) | |
| Clamp | Side clamp(Standard),please read the option table | |
| Edge distance | PCB process edge ≥2.5mm without PCB edge(Option) | |
| Conveyor speed | 0~1500mm/sec,increment 1mm | |
| Conveyor belt | U type belt | |
| Stopper method | Air cylinder | |
| Stopper position | Set the PCB stopper position according to the size of board | |
| Set by software | Software Settings | |
| Print System | Print speed | 5-200mm/s adjustable |
| Print head | Step motor drive scraper lifting | |
| Scraper | Steel scraper,rubber scraper(option) | |
| Scraper angle | 60° | |
| Scraper pressure | 0~20kg | |
| View System | Substrate Separation | Three-section Substrate Separation；Speed∶0.1-20mm/s；Distance∶0-20mm |
| Alignment position method | Mark Automatic aligning | |
| Camera | Germany BASLER,1/3”CCD,640*480pixel,pixel size 5.6μmx5.6μm | |
| Acquire image method | Upper/under double photo | |
| Camera light | Coaxial light,Ring light four kinds light can adjustable | |
| View range | 9mm*7mm | |
| Mark dimensions | Diameter or Side length 1mm~2mm,allowable offset 10% | |
| Mark shape | Cir,Rec,or rhombus etc | |
| Mark position | PCB dedicated mark or PCB pad | |
| 2D detection | Standard | |
| Accuracy | Table adjusting range | X=±10mm,Y=±10mm,0=±1.5° |
| Positional accuracy | ±0.01mm | |
| Printing accuracy | ±0.025mm | |
| Time | Cycle time | <10s(ex print,cleaning time) |
| Convert line time | <5min | |
| Programming time | <10min | |
| Control System | Computer configuration | Industrial PC,Windows official system |
| System language | Chinese /English | |
| Pre and next machine connection | SMEMA | |
| User authorization | User PW and Senior PW set | |
| Cleaning System | Cleaning system | Dry and Wet,vacuum model |
| Liquid level detection | Liquid level auto alarm detection | |
| Power Parameters | Main power supply | AC220V±10%50/60HZ Single phase |
| Total power | About 3kw | |
| Main air supply | 4.5～6kgf/cm2 | |
| Machine weight | About 1500Kg | |
| Machine dimensions | 2350(L)×1350(W)×1590(H)mm | |
| Option | Pneumatic top clamp | Standard |
| Top clamp + side clamp | For PCB(thickness≤1mm) | |
| Vacuum adsorption and clean | For PCB(thickness≤1mm)and FPC | |
| Auto tin added | / | |
| Auto loading and unloading | / | |
| Flexible and universal support | For the Double-sided PCB(PCB backside parts Height ≤9mm) | |
| Automatic positioning of screen frame | / | |
| PCB board thickness movement adjustment function | Standard | |
| Squeegee pressure feedback function | / | |
| Air condition | Customer can buy by themselves | |
| The rest of solder paste on the stencil monitoring system | T/ | |
| SPI close loop | SPI close loop | |
| UPS power off protection | UPS 15 min power off protection | |
| Industry 4.0 | Bar code trace function,Production analysis,etc | |
