220 Volt Automatic PCB Depanelizer V Cutting Machine For FR4 board

220 Volt Automatic PCB Depanelizer V Cutting Machine For FR4 board

  • High Light

    Laser PCB Depaneling

    ,

    PCB Scoring Machine

    ,

    FR4 board Pcb Depanelizer Machine

  • Place of Origin
    JiangSu
  • Brand Name
    YUSH
  • Certification
    CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
  • Model Number
    YSV-2A
  • Minimum Order Quantity
    1
  • Price
    1000
  • Packaging Details
    Plywooden case
  • Delivery Time
    3 days
  • Payment Terms
    T/T ,Paypal ,West Union ,L/C ,D/P .
  • Supply Ability
    300 sets/ month

220 Volt Automatic PCB Depanelizer V Cutting Machine For FR4 board



220 Volt Automatic PCB Depanelizer V Cutting Machine For FR4 board



Pcb Depanelizer Machine Specification:



Model No.: YSV-2A
Machine Dimension: 521 x 1200 x 410 mm
Size of Transfer Belt: 1200 x 180 x 127 mm
Material of Blade: SHK-9 high speed steel
Cutting Speed: 0-1000 mm / s
Cutting Thickness: 0.8-3.5 mm
Voltage: 220VAC / 110VAC
Weight: 80kg

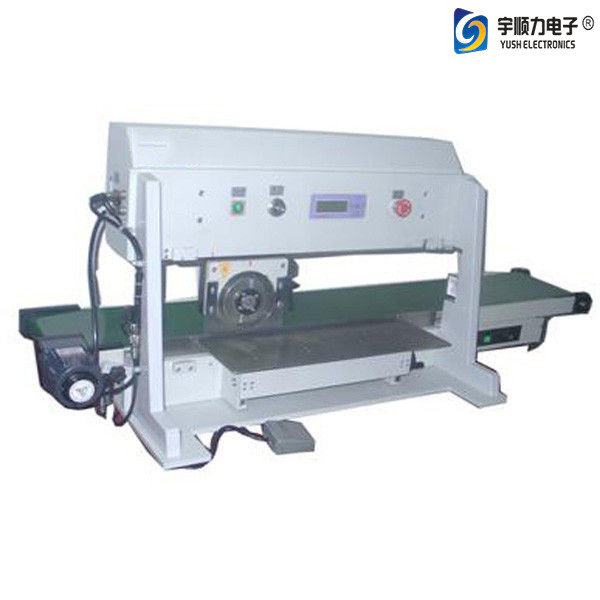

220 Volt Automatic PCB Depanelizer V Cutting Machine For FR4 board 0



Pcb Depanelizer Machine Feature:



1. One cutting span is 0-460mm/pcb



2. Cutting blade speed are 2 type: 500mm/s & 300mm/s



3. Operate platform adjusting range from 0 to 50mm



4. Flexible setting design. i.e. micro adjust the upper and lower blade to fit some kinds of thickness of PCB



5. As per the length of PCB, free setting stop point



Pcb Depanelizer Machine  Application:



1. Aluminum base board



2. Copper substrate



3. FR4



4. Glass fiber board



5. LED light bar panel



Pcb Depanelizer Machine Maintenance:



1. Take off the power botton and clean the machine after finish working


2. Be careful to protect the upper and lower blade


3. Move the blades and protect them with machine oil


4. Check the screw fastening time to time
