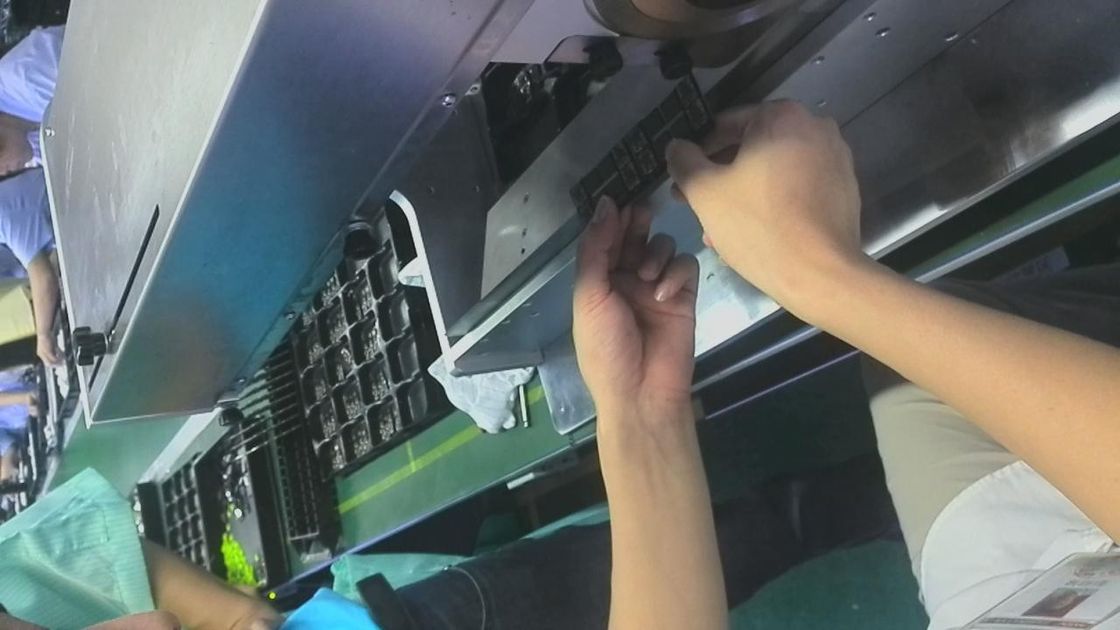

SMT Automatic Depanelization Of PCB , V Cutter Laser PCB Depaneling

SMT Automatic Depanelization Of PCB , V Cutter Laser PCB Depaneling

  • High Light

    pcb depanelizer

    ,

    pcb separator machine

  • Place of Origin
    JiangSu
  • Brand Name
    YuSH
  • Certification
    CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
  • Model Number
    YSV-1A
  • Minimum Order Quantity
    1
  • Price
    1000
  • Packaging Details
    Plywooden case
  • Delivery Time
    3 days
  • Payment Terms
    T/T ,Paypal ,West Union ,L/C ,D/P .
  • Supply Ability
    300 sets/ month

SMT Automatic Depanelization Of PCB , V Cutter Laser PCB Depaneling



SMT Automatic Depanelization Of PCB , V Cutter Laser PCB Depaneling





Specification:



Model No YSV-1A
Machine Dimension 960*560*750 mm
Transfer Belt none
Material of Blade SHK-9 high speed steel
Cutting Speed 0-1000 mm / s
Cutting Thickness 0.8-3.5 mm
Voltage 220VAC / 110VAC
Weight 89kg






Feature:





1. One cutting span is 0-460mm/pcb .



2. Cutting blade speed are 2 ype: 500mm/s & 300mm/s.



3. Operate platform adjusting range from 0 to 50mm.



4. Flexible setting design. i.e. micro adjust the upper and lower blade to fit some kinds of thickness of PCB.



5. As per the length of PCB, free setting stop point.



6. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.



7. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job.Dedicated.



to high strength cutting, and excellent toughness, able to cut metal board.







Application:





Aluminum base board



Copper substrate



V-CUT Line FR4 board



Glass fiber board



V-CUT LED light bar panel



V-CUTPCB circuit board
