110V / 220V Automatic V Cut PCB Depaneling Machine for FR4 board

110V / 220V Automatic V Cut PCB Depaneling Machine for FR4 board

  • High Light

    pcb depanelizer

    ,

    pcb separator machine

  • Power Supply
    110/220 V
  • Cutting Thickness (mm)
    0.6~3.5
  • PCB Cutting Length (mm)
    460/600/1000/1500
  • Cutting Speed (mm/s)
    100/200/300/500
  • Size (mm)
    770*510*450
  • Weight (Kg)
    55
  • Place of Origin
    JiangSu
  • Brand Name
    YUSH
  • Certification
    CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
  • Model Number
    YSV-1A
  • Minimum Order Quantity
    1 set
  • Price
    1000
  • Packaging Details
    Plywooden case
  • Delivery Time
    3 days to 7 days
  • Payment Terms
    T/T ,Paypal ,West Union ,L/C ,D/P .
  • Supply Ability
    300 sets/ month

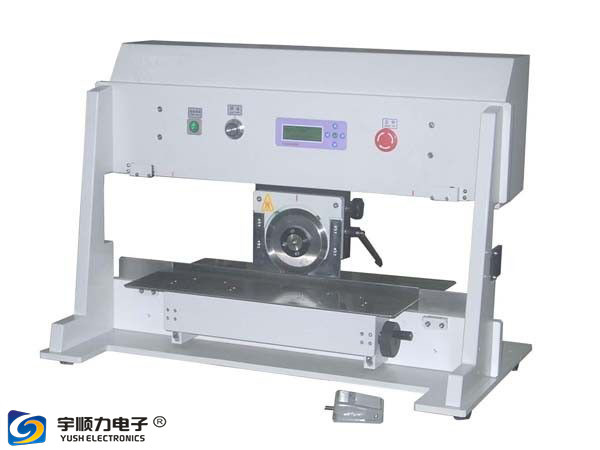

110V / 220V Automatic V Cut PCB Depaneling Machine for FR4 board



110V / 220V Automatic V Cut PCB Depaneling Machine for FR4 board



PCB depaneling with running type



1. Operator foolproof



2. Infrared protection



3. Calibration Blade Set



4. LCD program Control



Specification:



Model YSV-1A
PCB Cutting Length (mm) 460/600/1000/1500
Cutting Speed (mm/s) 100/200/300/500
Cutting Thickness (mm) 0.6~3.5
Power Supply 110/220 V
Size (mm) 770*510*450
Weight (Kg) 55
Blade working life for metal (Year) 0.5
Blade working life for PCB (Year) 1
Guarantee (Year) 1
Delivery (Day) 1
Ability (Set) 1000
Min. Order (Set) 1



110V / 220V Automatic V Cut PCB Depaneling Machine for FR4 board 0



Detailed Product Description:


1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.



2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job.Dedicated



to high strength cutting, and excellent toughness, able to cut metal board.



Technical characteristics:


1. Structural precision, the load evenly, to eliminate internal stress



2. Safe, easy to operate



3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)



Feature:



1. Minimize the shearing stress to avoid micro-cracks of the solder joints.



2. Guiding device of the "V-CUT" of the PCB.



3. Ball bearing slideways for easy setting of the PCB edge guides.



4. Ball bearing slideways for easy setting of the height of the tabletop.



5. Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.



6. Cutters can be re-grinded .



7. The shape of the cutter can be customer made
