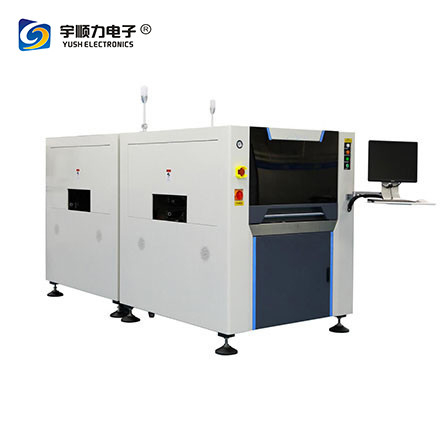

Automatic MSE/SPI online function Fully Automatic Visual Solder Paste Printer-YSL-A9-BTB
product technical points :
● Humanized design
● Back to back mode.machine independent control
● Unique sprinkler automatic cleaning system
● Efficient energy -saving wiping paper -saving structure
● Unique image processing system
● Intelligent printing production mode
● Printing range:510*310mm
● Use international universal UVW three axis linkage platform
● High accuracy .high speed .high stability . production of smart wearable products/phone preferrd/Mini LED
● Machine dimensions range: 1220X1355X1500mm(one ) 1220X2800X1500(two set )
● Machine option : automatic add solder paste function. automatic stencil inspection function .automatic dispensing system .squeegee pressure feedback function .automatic MSE/SPI online function .automatic constant temperature and humidity function
| Model | YSL-A9-BTB | |
| Item | ||
| Screen Frames | Min Size | 470X370mm |
| Max Size | 737X550mm/737X650mm | |
| Thickness | 25~40mm | |
| PCB Min Size | 50X50mm | |
| PCB Max Size | 510X310mm | |
| PCB Thickness | 0.4-6mm | |
| PCB Warpage | <1% | |
| Transport Height | 900±40mm | |
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right | |
| Transport Speed | Max1500mm/S Programmable | |
| Board Location | Support System | Magnetic Pin/Up-down table adjusted/support block |
| PCB positioning | by hand Magnetic thimble/Adjustable lifting platform/Contour block | |
| Clamping System | Side clamp,vacuum nozzle, automatic telescopic zdirection pressure plate | |
| Print head | Two independent motorised printheads | |
| Squeegee Speed | 6-200mm/sec | |
| Squeegee Pressure | 0~15Kg Motor control | |
| Squeegee Angle° | 60°/55°/45 | |
| Squeegee Type | Stainless steel(Standard),plastic | |
| Substrate Separation | 0.1~20mm/sec | |
| Cleaning System | Dry,Wet,Vacuum(Programmable) | |
| Table Adjustment Ranges | X:+10mm;Y:±10mm:0:±2° | |
| CCD FOV Field of view | 10X8 mm | |
| Solder Paste inspection | 2D inspection Standard | |
| Image recognition | ||
| Repeat Position Accuracy | ±0.01mm(CPK≧2.0) | |
| Printing Accuracy | ±0.025mm(CPK≧2.0) | |
| Cycle Time | <7s (Exclude Printing & Cleaning) | |
| Product Changeover | <5Min | |
| Air Required | 4.5~6Kg/cm2 | |
| Power Input | AC:220+10%50/60HZ1Ф3KW | |
| Control Method | PC Control | |
| Machine Dimensions |
1220(L)X1355(W)X1500(H)(Single) 1220(L)X2800(W)X1500(H)(Two sets) |
|
| Machine Weight | Approx:1000Kg(Single)2000KG(Two sets) | |
| Separation option | Separation after squeegee up;Squeegee up after separation: | |
| Separation bykeeping squeegee on the stencil(Area Separation,Line Separation) | ||
| Fiducial Types | □spuare ○round △triangle +cross Pad Hole , | |
| Automatic camera system | CCDdigital camera | |
| Geometrypattern match | ||
| Lookupdown optics structure | ||
| Working temperature | -21-℃-+50℃ | |
| Working environment humidity | 30%-60% | |
